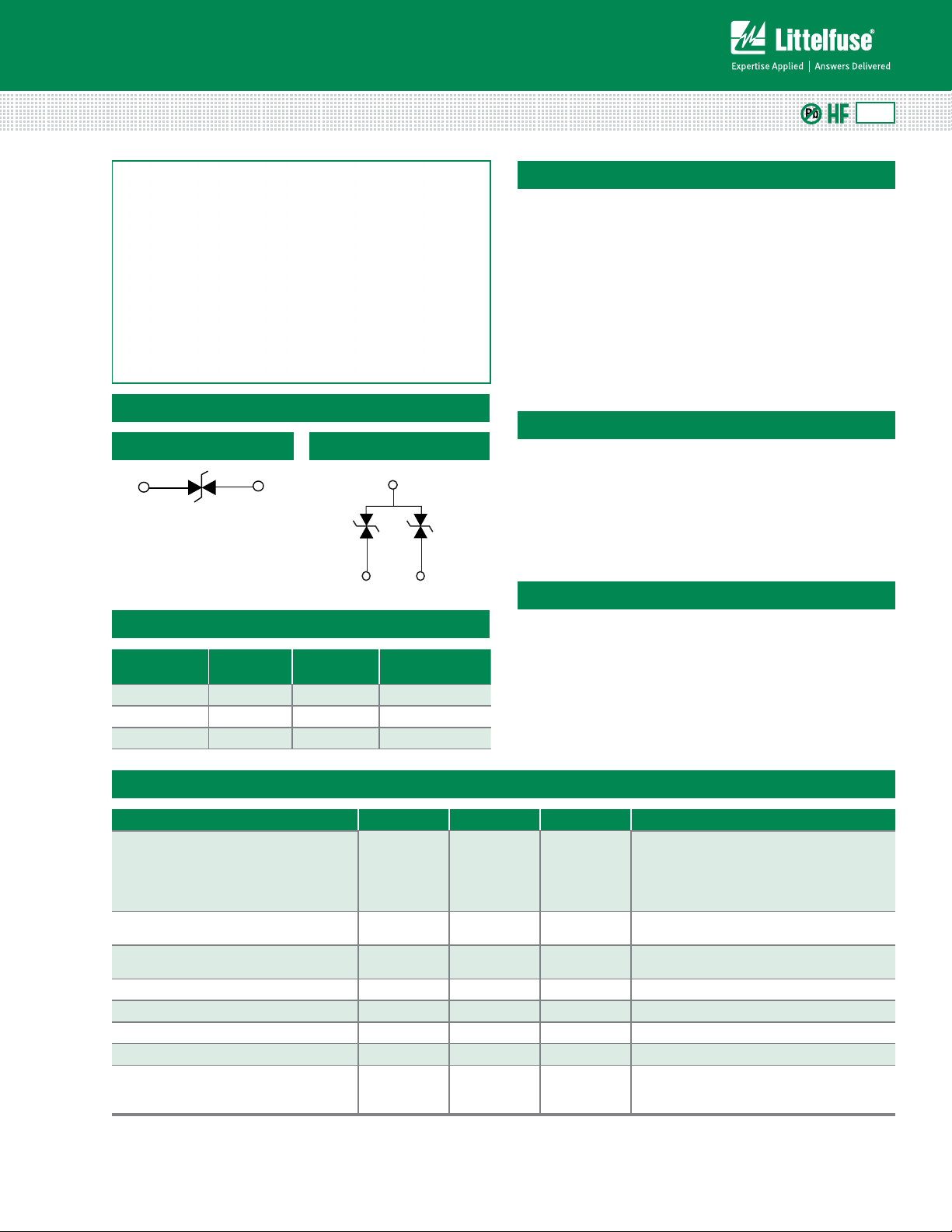

PULSE-GUARD
®
ESD Suppressors
Surface Mount Polymeric Electrostatic Discharge Suppressors
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 07/27/15
Reflow Solder
Note: For wave solder, increase the spacing
in both the horizontal and vertical dimensions by
0.254 (.010") where denoted by an asterisk (*)
2.24 +/- 0.18
(0.088" +/- 0.007")
Reference Dimensions:
1.27
(0.050")
1.02 (0.040")
2.03
(0.080")
0.51
(0.020")
0.64
(0.025")
2.29
(0.090")
2.54
(0.100")
1.02 (0.040")
1.02 (0.040")
0.15 +/- 0.08
(0.006 +/- 0.003")
TYP
0.81
(0.032")
TYP
1.09
(0.043")
1.91
(0.075")
0.91
(0.036")
TYP
3.00 +/- 0.20
(0.118" +/- 0.008")
0.69 +/- 0.10
(0.027" +/- 0.004)
Equivalent Circuit
3
2
1
Wave Solder
1.27
(0.050")
1.27
(0.050")
2.29
(0.090")
0.64
(0.025")
1.02 (0.040")
PULSE-GUARD
®
ESD Suppressors help protect sensitive
electronic equipment against electrostatic discharge (ESD).
They supplement the on-chip protection of integrated
circuitry and are best suited for low-voltage, high-speed
applications where low capacitance is important. Data
ports utilizing such high-speed protocols as USB 2.0,
IEEE1394, HDMI and DVI can benefit from this new
technology.
PULSE-GUARD
®
suppressors use polymer composite
materials to suppress fast-rising ESD transients (as
specified in IEC 61000-4-2), while adding virtually no
capacitance to the circuit.
Description
Features
Applications
• HDTV Hardware
• Laptop/Desktop
Computer
• Network Hardware
• Computer Peripherals
• Digital Camera
• External Storage
• Set-Top Box
• Antenna
• RoHS compliant, lead-free
and available halogen-free
• Ultra-low capacitance
• Low leakage current
• Fast response time
• Bi-directional
• Withstands multiple
ESD strikes
• Compatible with
pick-and-place processes
• Available in 1000, 3000,
5000 and 10000 piece
reels (EIA-RS481)
Equivalent Circuits
Reflow Solder
Wave Solder
1.27 (0.050")
0.76 (0.030")
3.30
(0.130")
3.05
(0.120")
1.27 (0.050")
0.51 (0.020")
0.76 (0.030") 0.76 (0.030")
1.66 +/- 0.06
(0.066" +/- 0.003”)
0.15 +/- 0.08
(0.006" +/- 0.003”)
0.84 +/- 0.05
(0.033" +/- 0.002”)
0.36 (0.014")
1.04
(0.041") REF
0.43 +/- 0.18
(0.017" +/- 0.007”)
Equivalent Circuit
Reference Dimensions:
2
1
0402 and 0603 Devices
SOT23 Device
Product Characteristics
Part Number
Lines
Protected
Component
Package
Available as
Halogen-Free
PGB1010402 1 0402 No
1
PGB1010603 1 0603 Ye s
PGB102ST23 2 SOT23 Ye s
Electrical Characteristics
Specification PGB1010402 PGB1010603 PGB102ST23 Notes
ESD Capability:
IEC 61000-4-2 Contact Discharge (typical)
IEC 61000-4-2 Air Discharge (maximum)
8kV
15kV
8kV
15kV
8kV
15kV
The ESD capability measured by direct and
air discharge method is subject to testing
equipment and conditions. Numerous factors
could affect the reliability and reproducibility
of the direct and air discharge test results.
Peak Voltage (typical) 1000V 500V 500V
Measured per IEC 61000-4-2
8kV Contact Discharge
2
Clamping Voltage (typical) 250V 150V 150V
Measured per IEC 61000-4-2
8kV Contact Discharge
2
, at 25 nsec.
Rated Voltage (maximum) 12VDC 24VDC 24VDC
Capacitance (typical) 0.04 pF 0.06 pF 0.12 pF Measured at 250 MHz
Response Time <1nS <1nS <1nS
Leakage Current (typical) <1nA (12 VDC) 24V 24V
ESD Pulse Withstand
1000
pulses min
1000
pulses min
1000
pulses min
Some shifting in characteristics may occur
when tested over multiple pulses at a very
rapid rate
Notes: 1. PGB1 0402 product not offered as Halogen Free. See PGB2 series 0402 product instead (http://www.littelfuse.com/series/PGB2010402.html).
2. Testing performed on Littelfuse test setup as described in Typical Test Setup Section on page 4 of this document.
RoHS
PGB1 Series
