PI6C20400BLEX数据手册
Page:
of 16 Go
若手册格式错乱，请下载阅览PDF原文件
1
PI6C49X0208 Rev A 01/08/13
Crystal
Oscillator
Clock Input
Control Circuit
XIN
XOUT
IN0
IN0#
IN1
IN1#
IN_SEL0 IN_SEL1 ENABLE V
DDO
8
CLK0~7
*IN0 can be single end ref clock0 and IN0# internal bias as Vdd/2
*IN1 can be single end ref clock1 and IN1# internal bias as Vdd/2
*IN-SEL[0:1] select XTAL, IN1/1# and IN0/0# input
Sync

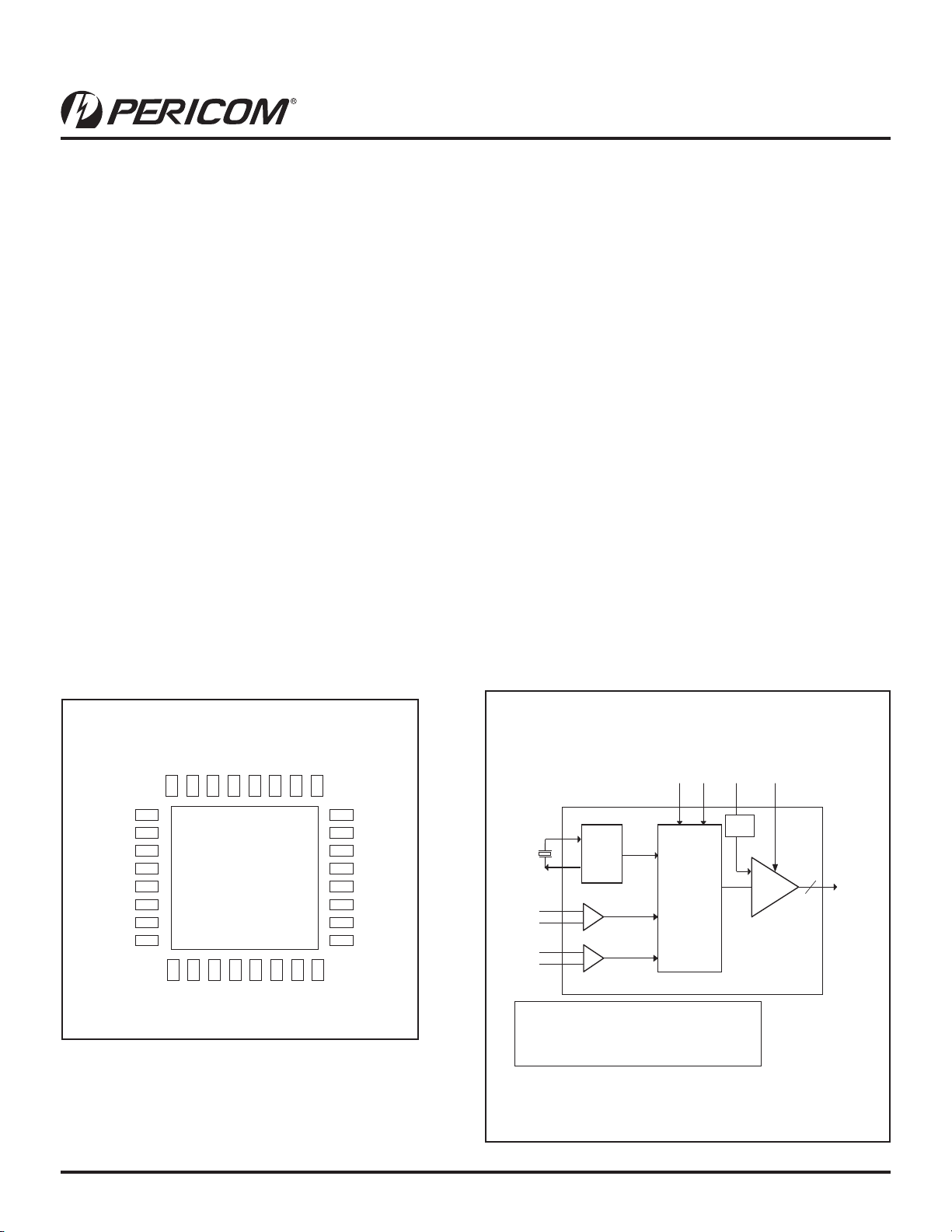

Block Diagram
Description
The PI6C49X0208 is a high performance multi-voltage 8-outputs
CMOS Fanout Buffer with internal Crystal Oscillator. The XTAL
range is from 10MHz to 50MHz. The device has a wide range of
operating voltages of 2.5V and 3.3V. The device also provides user
selectable output VDD option, which provides excellent exibilities
to users. This device is ideal for systems that need to distribute low
jitter clock signals to multiple destinations.
Features
• 8 single-ended outputs Fanout Buffer
• Up to 200MHz output frequency
• Ultra low output additive jitter = 0.01ps (typ.)
• Selectable reference inputs support Xtal (10~50MHz), single-
ended and differential
• Low output skew ~ 50ps (typ.)
• 2.5V / 3.3V operation
• User congurable output VDDO in different banks:
– Mixed 3.3V core, 2.5V, 1.8V or 1.5V output operating
supply
– Mixed 2.5V core, 1.8V, 1.5V or 1.2V output operating
supply
• Industrial temperature range: –40°C to +85°C
• Packaging (Pb-free & Green available):
– 32-pin TQFN (ZH)
Applications
• Networking systems including switches and Routers
• High frequency backplane based computing and telecom
platforms
PI6C49X0208
High Performance 1:8 Multi-Voltage CMOS Buer
CLK0
CLK1
GNDO
CLK2
CLK3
NC
CLK7
CLK6
GNDO
CLK5
CLK4
NC
1
2
3
4
5
6
7
8
24
23
22
21
20
19
18
17
GNDO
ENABLE
IN_SEL0
IN_SEL1
IN1
IN1#
GND
GNDO
32
31
30
29
28
27
26
25
GNDO
V
DD
XIN
XOUT
IN0
IN0#
GNDO
9
10
11
12
13
14
15
16
V
DDO
GND
V
DDO
V
DDO
V
DDO
Pin Conguration
