1998 Microchip Technology Inc.
Preliminary
DS40192B-page 1
Device included in this Data Sheet:
PIC16C505
High-Performance RISC CPU:
• Only 33 instructions to learn
• Operating speed:
- DC - 20 MHz clock input
- DC - 200 ns instruction cycle
• Direct, indirect and relative addressing modes for
data and instructions
• 12 bit wide instructions
• 8 bit wide data path
• 2-level deep hardware stack
• Eight special function hardware registers
• Direct, indirect and relative addressing modes for
data and instructions
• All single cycle instructions (200 ns) except for
program branches which are two-cycle
Peripheral Features:
• 11 I/O pins with individual direction control
• 1 input pin
• High current sink/source for direct LED drive
• Timer0: 8-bit timer/counter with 8-bit
programmable prescaler

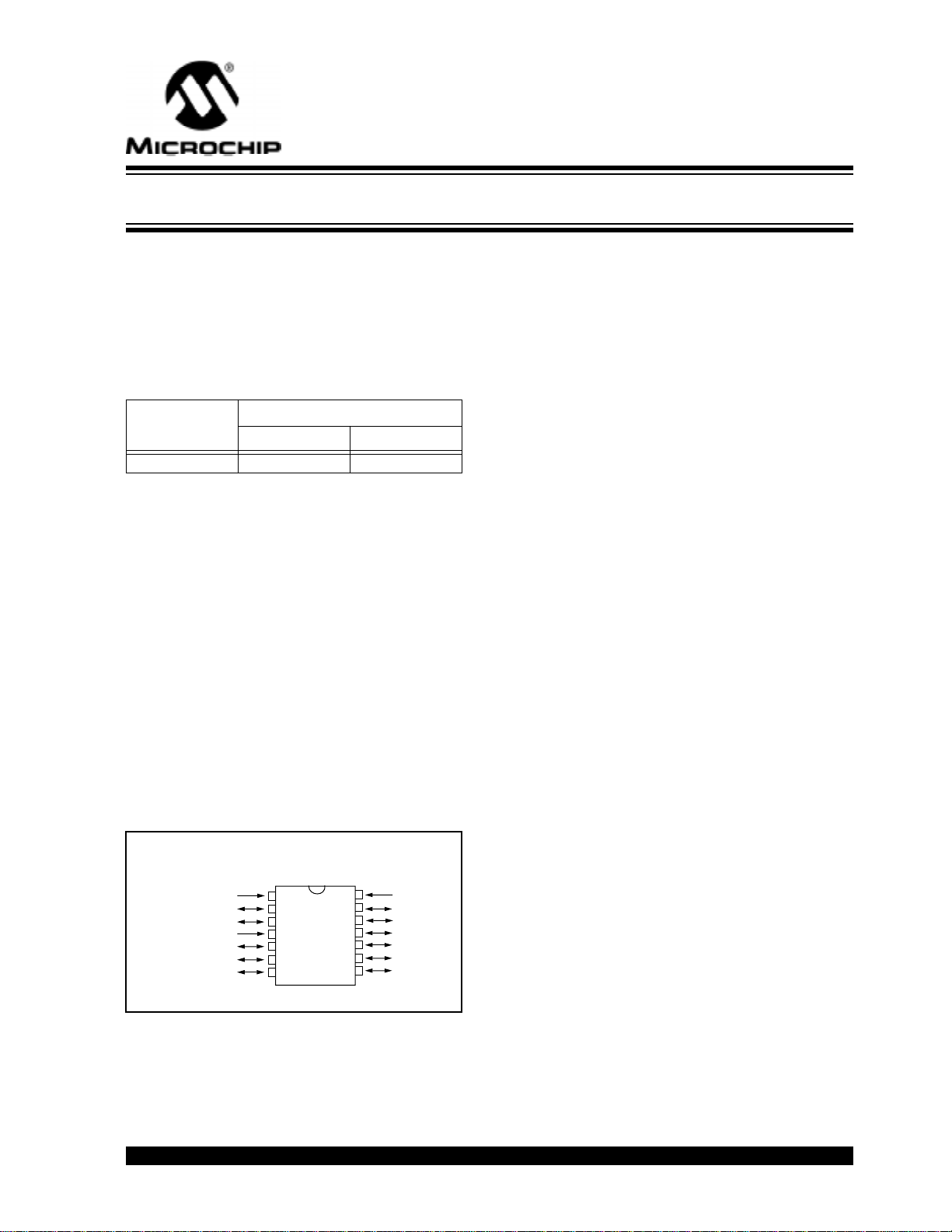

FIGURE 1: PIN DIAGRAM:
Device
Memory
Program Data
PIC16C505 1024 x 12 72 x 8
PDIP, SOIC, Ceramic Side Brazed
PIC16C505
VDD
RB5/OSC1/CLKIN
RB4/OSC2/CLKOUT
RB3/MCLR/V
PP
RC5/T0CKI
RC4
RC3
VSS
RB0
RB1
RB2
RC0
RC1
RC2
1
2
3
4
5
6
7
14
13
12
11
10
9
8
Special Microcontroller Features:
• In-Circuit Serial Programming (ICSP™)
• Power-on Reset (POR)
• Device Reset Timer (DRT)
• Watchdog Timer (WDT) with dedicated on-chip
RC oscillator for reliable operation
• Programmable Code Protection
• Internal weak pull-ups on I/O pins
• Wake-up from Sleep on pin change
• Power-saving Sleep mode
• Selectable oscillator options:
- INTRC: Precision internal 4 MHz oscillator
- EXTRC: External low-cost RC oscillator
- XT: Standard crystal/resonator
- HS: High speed crystal/resonator
- LP: Power saving, low frequency
crystal
CMOS Technology:
• Low-power, high-speed CMOS EPROM
technology
• Fully static design
• Wide operating voltage range (2.5V to 5.5V)
• Wide temperature ranges
- Commercial: 0˚C to +70˚C
- Industrial: -40˚C to +85˚C
- Extended: -40˚C to +125˚C
- < 1.0
µ
A typical standby current @ 5V
• Low power consumption
- < 2.0 mA @ 5V, 4 MHz
- 15
µ
A typical @ 3.0V, 32 kHz for TMR0 run-
ning in SLEEP mode
- < 1.0
µ
A typical standby current @ 5V
PIC16C505
14-Pin, 8-Bit CMOS Microcontroller
