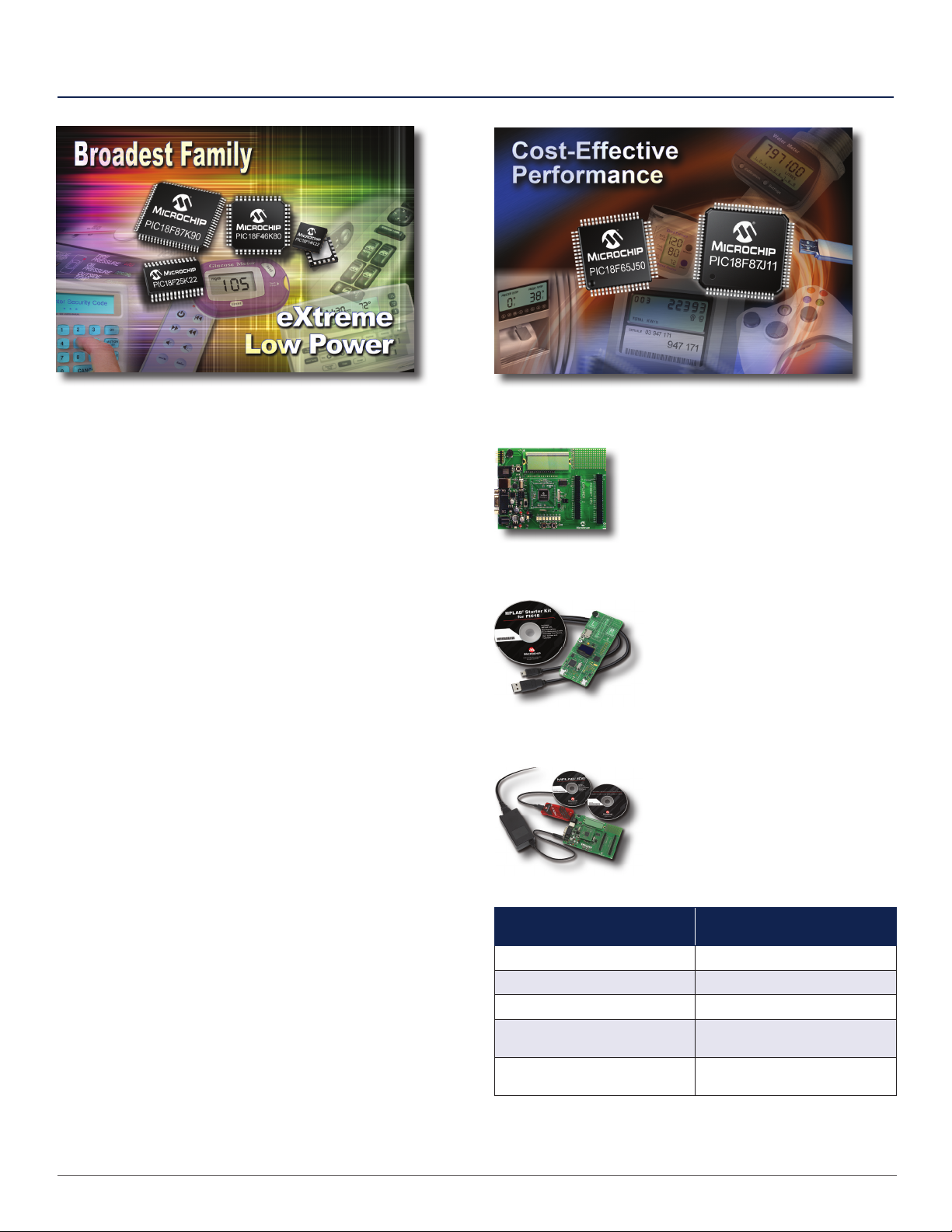

6 8-bit PIC® Microcontroller Solutions
PIC18 Architecture
The PIC18 family utilizes a 16-bit program word architecture
andincorporatesanadvancedRISCarchitecturewith32level-
deep stack, 8x8 hardware multiplier, and multiple internal
and external interrupts. With the highest performance in
Microchip’s 8-bit portfolio, the PIC18 family provides up to 16
MIPS and linear memory.
PIC18 is the most popular architecture for new 8-bit designs
where customers want to program in C. Preserve your code
investment by migrating between more than 201 PIC18
products,supportingboth3Vand5Vapplicationswith
packages ranging from 18 to 100 pins. The PIC18 family
features the J- and K-series in addition to the traditional PIC18
product line.
Integration is key on the PIC18 devices, with peripherals
supporting connectivity, advanced analog functionality and
human interfaces such as:
■
SegmentedLCDs–capableofdrivingupto192segments
■
mTouchTouchSensing–forkeys,buttonsandsliders
■
ChargeTimeMeasurementUnit(CTMU)–precisetime
measurement and capacitive touch sensing
■
Full-speedUSBv2.0–upto12Mbps
■
EthernetMACandPHY(10/100Base-T)–withfreeTCP/IP
stack
■
CANModule–conformstoCAN2.0BActivespecification
■
LINinterface–EUSARTcompatiblewithLIN2.1
specification
■
12-bitA/DConverter–advancedanalogfunctionality
■
PeripheralPinSelect–flexiblepinmappingsavesboard
space
The feature set of the PIC18F MCUs allows this family to be
used in a wide variety of applications including: industrial
(e.g. metering, electronic door locks, cargo tracking, lighting,
alarm systems); appliance (e.g. smart energy, dishwashers,
refrigerators, HVAC controls); medical (e.g. diagnostic devices,
portable medical meters); and automotive (e.g. lighting,
dashboard instrument clusters, keyless entry, interior controls,
garage-door openers) markets.
www.microchip.com/pic18
Development Tools
PIC18 Explorer Board (DM183032)
■
Features PIC18F8722 and
PIC18F87J11 MCUs
■
Plug-In Modules (PIMs) available
for other MCUs, including K22
PIMs
■
PICtail™ daughter board connector
for expansion boards
PIC18 Starter Kit (DM180021)
■
Features PIC18F46J50
■
Functions as a USB mouse,
joystick or mass storage
device
■
Includes Cap touch sense
pads, MicroSD™ memory card,
potentiometer, accelerometer
and OLED display
PIC18 Development Kit (DV164136)
■
Includes the PIC18 Explorer
Board,PICkit3programmer/
debugger, USB cable and the
9Vuniversalpowersupplyall
in one bundle
PIC18 Characteristics
PIC18 J-Series PIC18 K-Series
12 MIPS
16 MIPS
2.0-3.6V
1.8-5.5V
Emulated EE in Flash
EEPROM
Typically Lower Cost for
Equivalent Products
Slightly Higher Cost for
Equivalent Products
XLP Products Need
Deep Sleep Mode
XLP Products with
Sleep Mode
