2004 Microchip Technology Inc. DS51140J-page 1
CONTENTS
1.0 Introduction ......................................................... 1
2.0 MPLAB ICE 2000 System................................... 1
3.0 Emulator-Related Issues .................................... 2
4.0 Processor Modules ............................................. 2
5.0 Device Adapter Issues........................................ 4
1.0 INTRODUCTION
The processor modules for MPLAB ICE 2000 are
interchangeable personality modules that allow
MPLAB ICE 2000 to be reconfigured for emulation of
different PICmicro
®
microcontrollers (MCUs). This
modularity allows the emulation of many different
devices with the addition of a processor module and
device adapter, which provides a very cost effective
multiprocessor emulation system.
The device adapters for MPLAB ICE 2000 are inter-
changeable assemblies that allow the emulator system
to interface to a target application system. device
adapters also have control logic that allows the target
application to provide a clock source and power to the
processor module. The device adapters support
PICmicro MCUs in DIP, SDIP and PLCC packages.
Transition Sockets, used along with a device adapter,
provide a method of accommodating all PICmicro MCU
packages, including SOIC, SSOP, PQFP and TQFP
packages.
2.0 MPLAB ICE 2000 SYSTEM
A brief overview of the different components of the
system is shown in the figure below. Each component
is discussed in the following subsections.

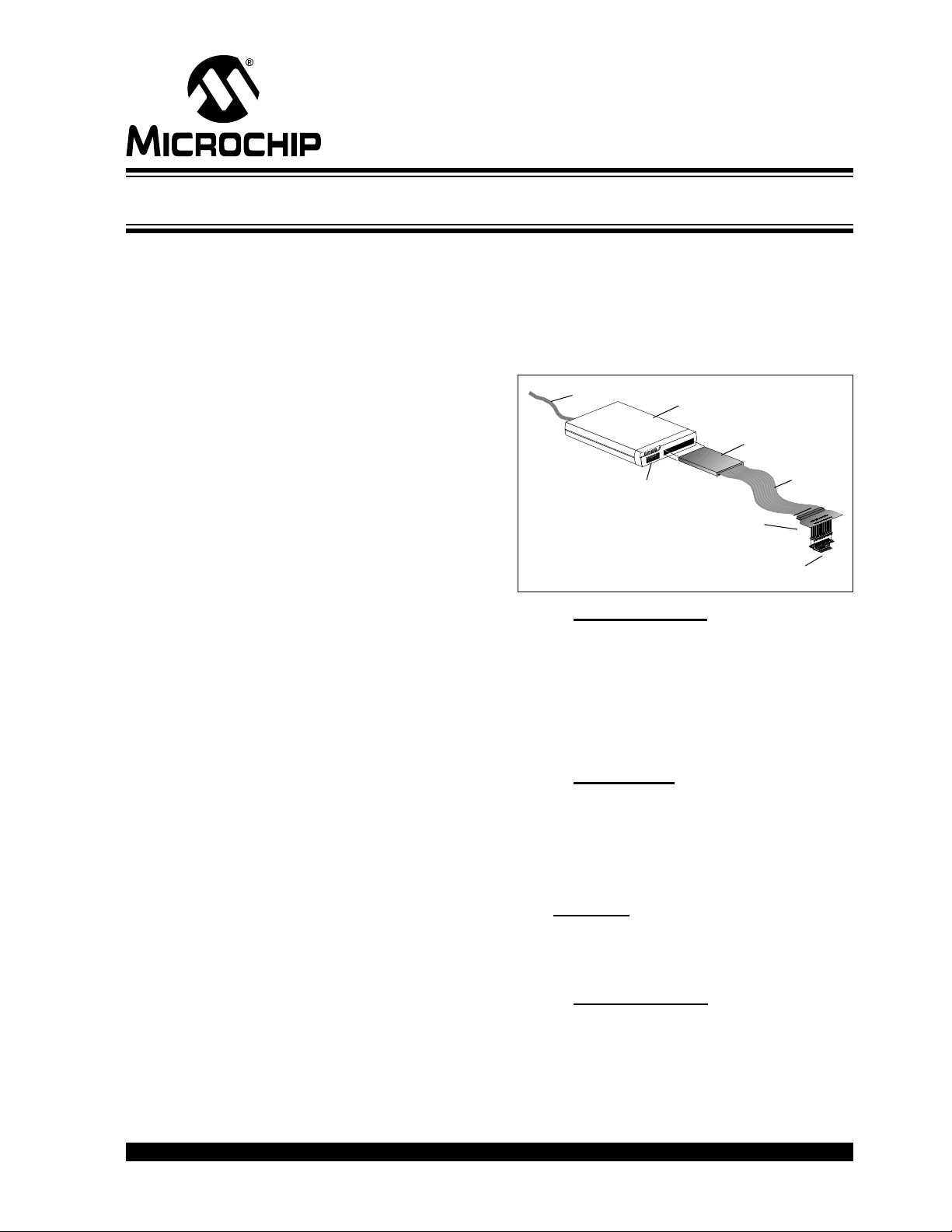

FIGURE 2-1: MPLAB ICE 2000 EMULATOR
SYSTEM
2.1 Host to Pod Cable
This is a standard parallel interface cable. MPLAB ICE
2000 is tested with a 6-foot cable. A longer cable may
work, but is not guaranteed. The cable connects to a
parallel port on the PC. If a PC has a printer connected
to an LPT device, it is recommended that an additional
interface card be installed, rather than using a splitter
or an A/B switch.
2.2 Emulator Pod
The Emulator Pod contains emulator memory and
control logic. MPLAB ICE 2000 contains a main board
and an additional board for expanded trace memory
and complex control logic. There are no field service-
able parts in the pod. For more information on the pod,
see the MPLAB ICE 2000 on-line help file in MPLAB
IDE (Help>Topics
) or the MPLAB ICE 2000 User’s
Guide (DS51488).
The MPLAB ICE 2000 processor module is inserted
into the pod for operation.
2.3 Processor Module
The processor module contains the emulator chip, logic
and low-voltage circuitry. There are no field serviceable
parts mounted on the printed circuit board housed
within the processor module enclosure.
Host to Pod Cable
Emulator Pod
Processor Module
Flexible Circuit
Logic Probe
Connector
Device
Cable
Transition
Adapter
Socket
Processor Module and Device Adapter Specification
MPLAB
®
ICE 2000
