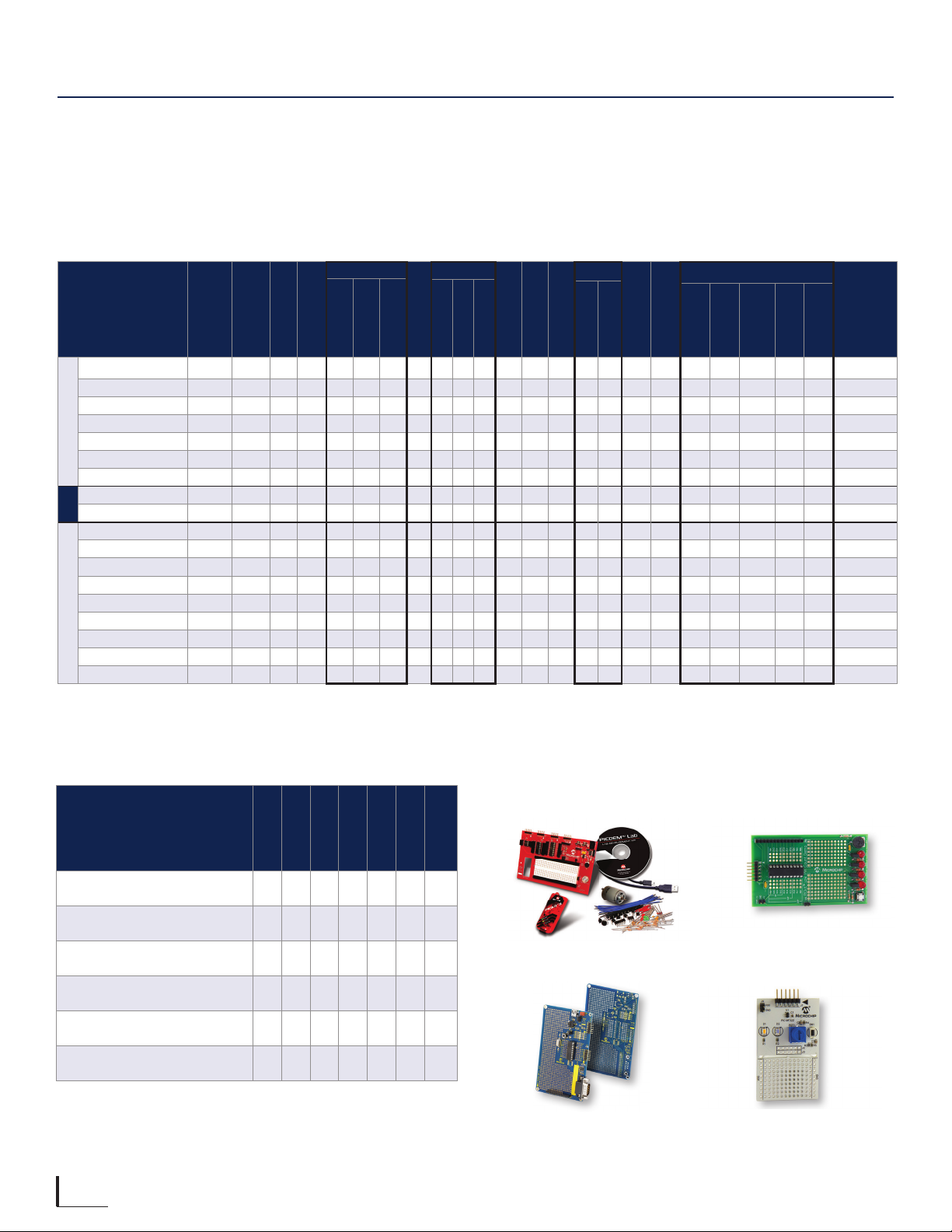

Core Independent Peripherals for 8-bit PIC Microcontrollers
Overview
Microchip is the leader in 8-bit microcontrollers by continually investing and expanding upon the PIC® microcontroller line-
up. Emphasis is persistently focused on reducing costs while developing products with a strong mix of peripherals such
as LCD drive, PWM, ADC, comparators, timers and communication. Beyond standard peripherals, Microchip is constantly
bringing additional value to PIC microcontrollers by developing unique and exclusive peripherals. These unique peripherals
allow embedded engineers to simplify their designs and create ever more creative applications and products. This
innovation is demonstrated by some of the following PIC microcontroller integrated peripherals.
Flash
RAM
Pins
I/O
ADC
Comp
DAC
EUSART
I
2
C™/SPI
USB
Timers
PWM*
MAX PWM
Channels**
New Peripherals
Availability
8-bit
10-bit
12-bit
5-bit
8-bit
9-bit
8-bit
16-bit
CLC
NCO
CWG/
COG
PSMC
HRPWM***
Low Pin Count
PIC10(L)F320 448 64 6 4 3 – – – – – – – – – 2 – 2 4 1
ü ü
–
ü
Now
PIC10(L)F322 896 64 6 4 3 – – – – – – – – – 2 – 2 4 1
ü ü
–
ü
Now
PIC12(L)F1501 1.75K 64 8 6 – 4 – 1 1 – – – – – 2 1 4 6 2
ü ü
–
ü
Now
PIC16(L)F1503 3.5K 128 14 12 – 8 – 2 1 – – –
ü
– 2 1 4 7 2
ü ü
–
ü
Now
PIC16(L)F1507 3.5K 128 20 18 – 12 – 2 – – – – – 2 1 4 7 2
ü ü
–
ü
Now
PIC16(L)F1508 7K 256 20 18 – 12 – 2 1 – –
ü ü
– 2 1 4 7 4
ü ü
–
ü
Now
PIC16(L)F1509 14K 512 20 18 – 12 – 2 1 – –
ü ü
– 2 1 4 7 4
ü ü
–
ü
Now
USB
PIC16(L)F1455 8K 1K 14 11 – 5 – 2 1 – –
ü ü ü
2 1 2 4 – –
ü
– – Now
PIC16(L)F1459 8K 1K 20 17 – 9 – 2 1 – –
ü ü ü
2 1 2 4 – –
ü
– – Now
Intelligent Analog
PIC12F752/HV752 1K 64 8 6 – 4 – 2 1 – – – – – 3 – 1 3 – –
ü
– – Now
PIC16F753/HV753 2K 128 14 12 – 8 – 2 – – 1 – – – 4 – 1 3 – –
ü
– – Q2 ‘13
PIC16(L)F1782 2K 256 28 25 – – 11 3 – 1 –
ü ü
– 2 1 4 10 – – – 2 – Now
PIC16(L)F1783 4K 512 28 25 – – 11 3 – 1 –
ü ü
– 2 1 4 10 – – – 2 – Now
PIC16(L)F1784 4K 512 44 36 – – 14 4 – 1 –
ü ü
– 2 1 6 17 – – – 3 – Q2 ‘13
PIC16(L)F1786 8K 1K 28 25 – – 11 4 – 1 –
ü ü
– 2
1 6 17 – – – 3 – Q2 ‘13
PIC16(L)F1787 8K 1K 44 36 – – 14 4 – 1 –
ü ü
– 2 1 6 17 – – – 3 – Q2 ‘13
PIC16(L)F1788 16K 2K 28 25 – – 11 4 3 1 –
ü ü
– 2 1 7 17 – – – 4 – Q2 ‘13
PIC16(L)F1789 16K 2K 44 36 – – 14 4 3 1 –
ü ü
– 2 1 7 17 – – – 4 – Q2 ‘13
*PWM inclusive of PWM, CCP, ECCP and PSMC.
**Total PWM channels is the sum of external channels available via PWM, CCP, ECCP, HRPWM, CWG, COG and PSMC.
***HRPWM available via implementation of CLC and NCO, please see app note AN1476.
8-bit Peripheral Highlights
Development Support
Development Boards
PIC10F32X
PIC12F150X
PIC16F150X
PIC16F145X
PIC12F752
PIC16F753
PIC16F178X
PICDEM™ Lab Development Kit
(DM163045)
–
ü ü ü ü ü ü
PICkit™ Low Pin Count
Development Board (DM164130-9)
–
ü ü ü ü ü
–
PIC10F32X Development Board
(AC103011)
ü
– – – – – –
PIC10F32X Debug Extension Pak
(AC244045)
ü
– – – – – –
Low Pin Count USB Development
Board (DM164127)
– – –
ü
– – –
PICkit™ 28-pin Demo Board
(DM164120-3)
– – – – – –
ü
Programmer/Debuggers
■ PICkit 3 (PG164130)
■ MPLAB® ICD 3 (DV164035)
■ MPLAB REAL ICE™ In-Circuit Debugger (DV244005)
IDE/Compiler
■ MPLAB X IDE
■ MPLAB XC8 Compiler
PICDEM™ Lab Development Kit
(DM163045)
PICkit Low Pin Count
Development Board
(DM164130-9)
PIC10F32X Development Board
(AC103011))
Low Pin Count USB
Development Board
(DM164127)
