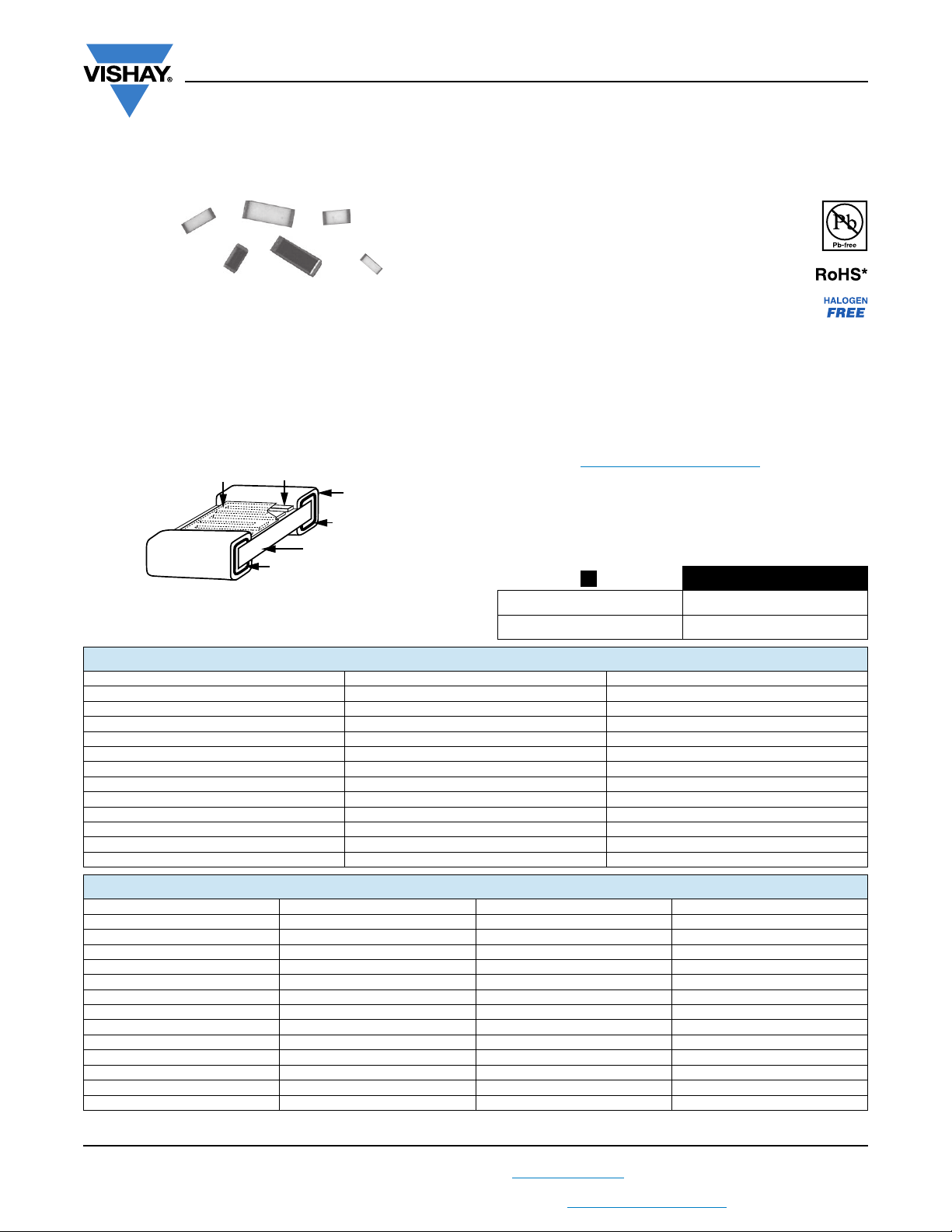

PNM
www.vishay.com
Vishay Dale Thin Film
Revision: 07-Aug-14
1
Document Number: 60057
For technical questions, contact: thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Precision Thin Film Non-Magnetic Resistor,
Surface Mount Chip, ± 25 ppm/°C, Tolerances to 0.1 %
These devices eliminate materials that would disturb
magnetic fields applications such as in MRI magnetic
resonance imaging machines. The PNM series chip resistor
has been carefully engineered with non-magnetic materials
to eliminate the effects of these stray magnetic fields on
circuit performance, thereby resulting in simplified shielding
requirements and improved sound quality in audio
applications. Providing signal conditioning without
distortion from magnetic fields.
CONSTRUCTION
FEATURES
•Non-magnetic
• Moisture resistant
• High purity alumina substrate
• Non-standard values available
• MIL-STD-202 method 106 moisture
resistance with 10 % power
• 100 % visual inspected per MIL-PRF-55342
• Very low noise and voltage coefficient (< -30 dB)
•Non-inductive
• Laser-trimmed tolerances to ± 0.1 %
• Wraparound resistance less than 10 m
• Sulfur resistant (per ASTM B809-95 humid vapor test)n
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and/or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information/tables in this datasheet for details.
TYPICAL PERFORMANCE
Note
(1)
0705 and 0805 are the same (only use 0805 when ordering)
Actual Size
1505
Adhesion layer
High Purity
Alumina Substrate
Barrier layer
Solder
coating
Passivation
Tantalum Nitride
Resistive Film
ABSOLUTE
TCR 25
TOL. 0.1
Available
Available
Available
STANDARD ELECTRICAL SPECIFICATIONS
TEST SPECIFICATIONS CONDITIONS
Material Tantalum nitride -
Resistance Range 10 to 3 M -
TCR: Absolute ± 25 ppm/°C to ± 100 ppm/°C -55 °C to +125 °C
Tolerance: Absolute ± 0.1 % to ± 1.0 % +25 °C
Stability: Absolute R ± 0.03 % -
Stability: Ratio --
Voltage Coefficient 0.1 ppm/V -
Working Voltage 75 V to 200 V -
Operating Temperature Range -55 °C to +155 °C -
Storage Temperature Range -55 °C to +155 °C -
Noise < -30 dB -
Shelf Life Stability: Absolute --
COMPONENT RATINGS
CASE SIZE
(1)
POWER RATING (mW) WORKING VOLTAGE (V) RESISTANCE RANGE ()
0402 50 75 20 to 35K
0502 100 75 20 to 65K
0505 150 75 20 to 130K
0603 150 75 10 to 130K
0805 200 100 10 to 301K
0705 200 100 10 to 301K
1005 250 100 10 to 301K
1010 500 150 50 to 600K
1206 400 200 10 to 1M
1505 400 150 10 to 1M
2208 750 150 10 to 1.75M
2010 800 200 10 to 2M
2512 1000 200 10 to 3M
