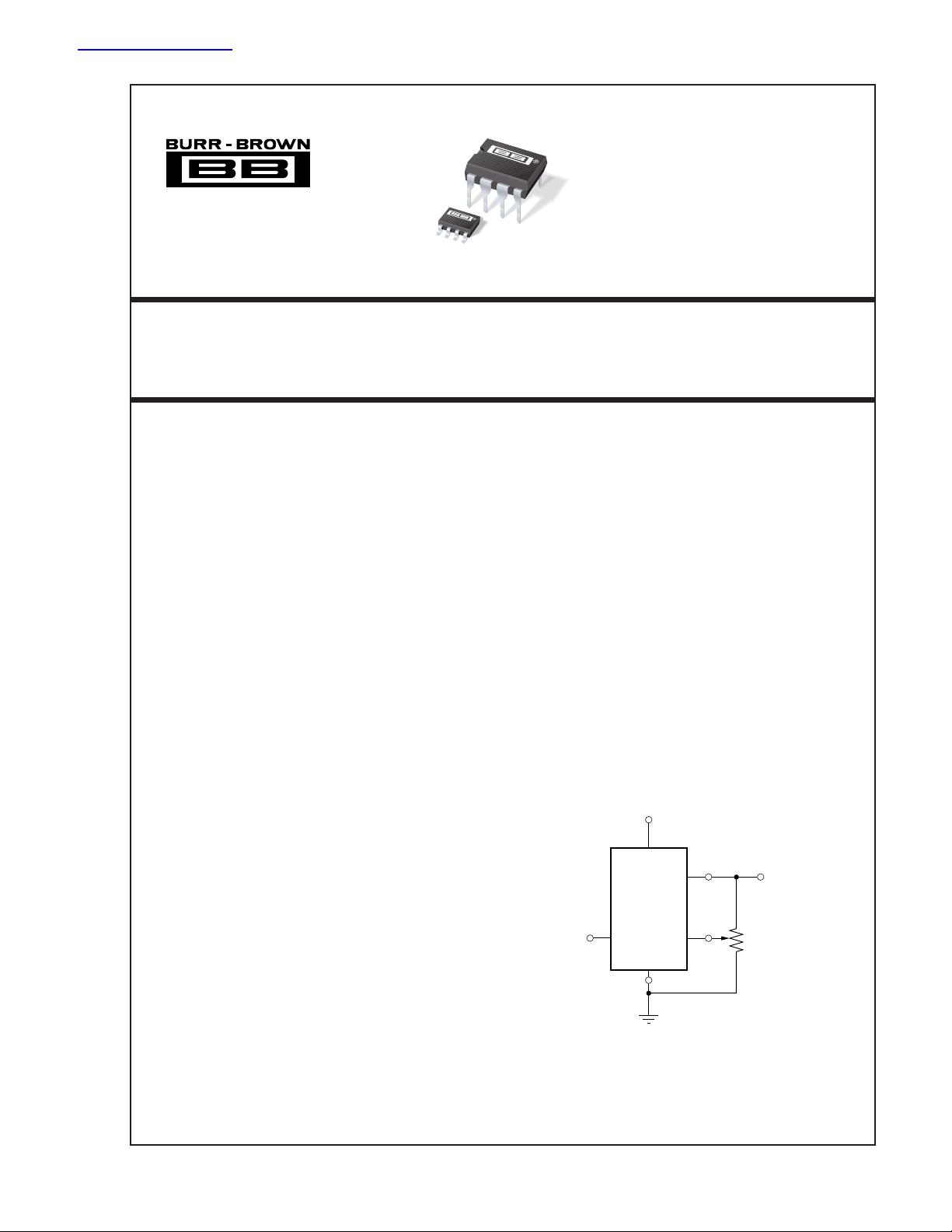

1993 Burr-Brown Corporation PDS-1177G Printed in U.S.A. December, 1993

+5V Precision

VOLTAGE REFERENCE

FEATURES

● OUTPUT VOLTAGE: +5V ±0.1% max

● EXCELLENT TEMPERATURE STABILITY:

8.5ppm/

°C max (–40°C to +85°C)

● LOW NOISE: 10

µVp-p max (0.1Hz to 10Hz)

● EXCELLENT LINE REGULATION:

0.008%/V max

● EXCELLENT LOAD REGULATION:

0.005%/mA max

● LOW SUPPLY CURRENT: 1.4mA max

● SHORT-CIRCUIT PROTECTED

● WIDE SUPPLY RANGE: 8V to 40V

● EXTENDED INDUSTRIAL TEMPERATURE

RANGE: –40

°C to +85°C

● PACKAGE OPTIONS: Plastic DIP, SOIC

REF02

APPLICATIONS

● PRECISION REGULATORS

● CONSTANT CURRENT SOURCE/SINK

● DIGITAL VOLTMETERS

● V/F CONVERTERS

● A/D AND D/A CONVERTERS

● PRECISION CALIBRATION STANDARD

● TEST EQUIPMENT

DESCRIPTION

The REF02 is a precision 5V voltage reference. The

drift is laser trimmed to 8.5ppm/°C max over the

extended industrial and military temperature range.

The REF02 provides a stable 5V output that can be

externally adjusted over a ±6% range with minimal

effect on temperature stability. REF02 operates from a

single supply with an input range of 8V to 40V with a

very low current drain of 1mA, and excellent tempera-

ture stability due to an improved design. Excellent line

and load regulation, low noise, low power, and low

cost make the REF02 the best choice whenever a 5V

voltage reference is required. All popular package

options are available: plastic DIP, and SOIC. The

REF02 is an ideal choice for portable instrumentation,

temperature transducers, A/D and D/A converters, and

digital voltmeter.

OUT

REF02

Trim

GND

+5V Reference with Trimmed Output

POT

10kΩ

(Optional)

Output

Temp

International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111 • Twx: 910-952-1111

Internet: http://www.burr-brown.com/ • FAXLine: (800) 548-6133 (US/Canada Only) • Cable: BBRCORP • Telex: 066-6491 • FAX: (520) 889-1510 • Immediate Product Info: (800) 548-6132
