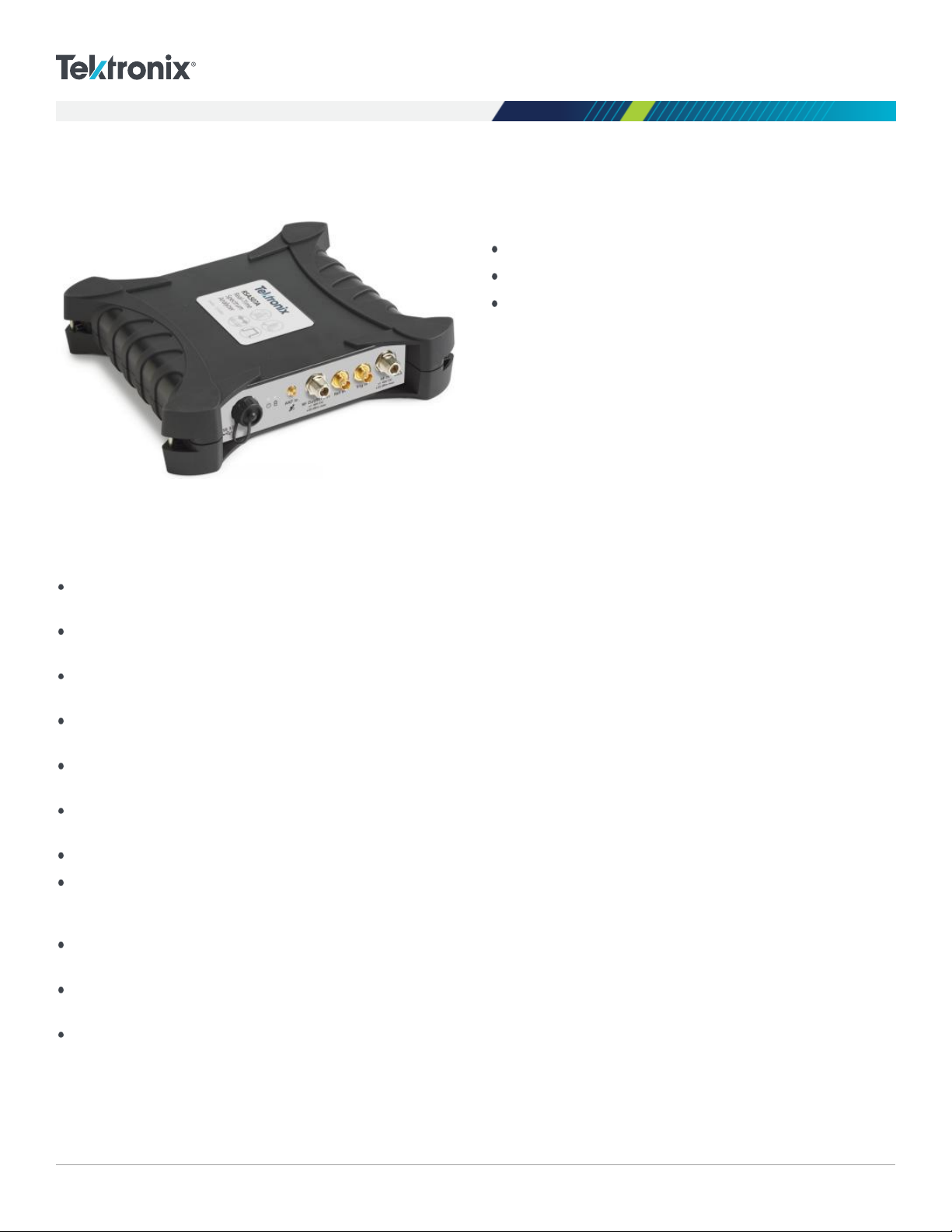

Spectrum Analyzer
RSA500A Series Portable Spectrum Analyzer Datasheet
The RSA500A Series USB spectrum analyzers offer high performance
portable spectrum analysis in a rugged battery-powered package.
Features and benefits
9 kHz to 3.0/7.5 GHz frequency range covers a broad range of analysis
needs
40 MHz acquisition bandwidth enables real time analysis for transient
capture and vector analysis
Standard GPS/GLONASS/Beidou receiver for mapping and reference
oscillator accuracy enhancement
Optional tracking generator for gain/loss, antenna and cable
measurements
Streaming capture can be used to record and play back long term
events
Mil-Std 28800 Class 2 environmental, shock and vibration
specifications for use in harsh conditions
Internal battery for extended field operations
SignalVu-PC software offers real time signal processing with DPX
Spectrum/Spectrogram to minimize time spent on transient and
interference hunting
100 μsec minimum signal duration with 100% probability of intercept
ensure you see problems first time, every time
Application programming interface included for development of custom
programs
Accessories including tablet PC, calibration kits, adapters and phase-
stable cables offer a complete field solution for interference hunting and
transmitter maintenance
Applications
Spectrum management
Interference hunting
Maintenance, installation and repair of radio networks
The RSA500 Series saves you time and helps
you succeed
The RSA500 series was built to bring real-time spectrum analysis to solving
the problems of spectrum managers, interference hunters and network
maintenance personnel who need to track down hard to find interferers,
maintain RF networks and keep records of their efforts. The heart of the
system is the USB-based RF spectrum analyzer that captures 40 MHz
bandwidths with great fidelity in harsh environments. With 70 dB dynamic
range and frequency coverage to 7.5 GHz, all signals of interest can be
examined with high confidence in your measurement results. The USB form
factor moves the weight of the instrument off of your hands, and replaces it
with a lightweight Windows tablet or laptop. Holding a light PC instead of a
heavy spectrum analyzer means you can move faster, for longer, and get
your work done faster.
The optional tracking generator enables gain/loss measurements for quick
tests of filters, duplexers and other network elements, and you can add
cable and antenna measurements of VSWR, return loss, distance to fault
and cable loss as needed.
SignalVu-PC software offers rich analysis
capability in the field
The RSA500 series operates with SignalVu-PC, a powerful program used
as the basis of Tek’s traditional spectrum analyzers, offering a deep
analysis capability previously unavailable in high performance battery-
operated solutions. Real-time processing of the DPX spectrum/spectrogram
is enabled in your PC, further reducing the cost of hardware. Customers
who need programmatic access to the instrument can choose either the
SignalVu-PC programmatic interface or use the included application
programming interface (API) that provides a rich set of commands and
measurements directly. Basic functionality of the free SignalVu-PC program
is far from basic. Base version measurements are shown below.
www.tek.com 1
