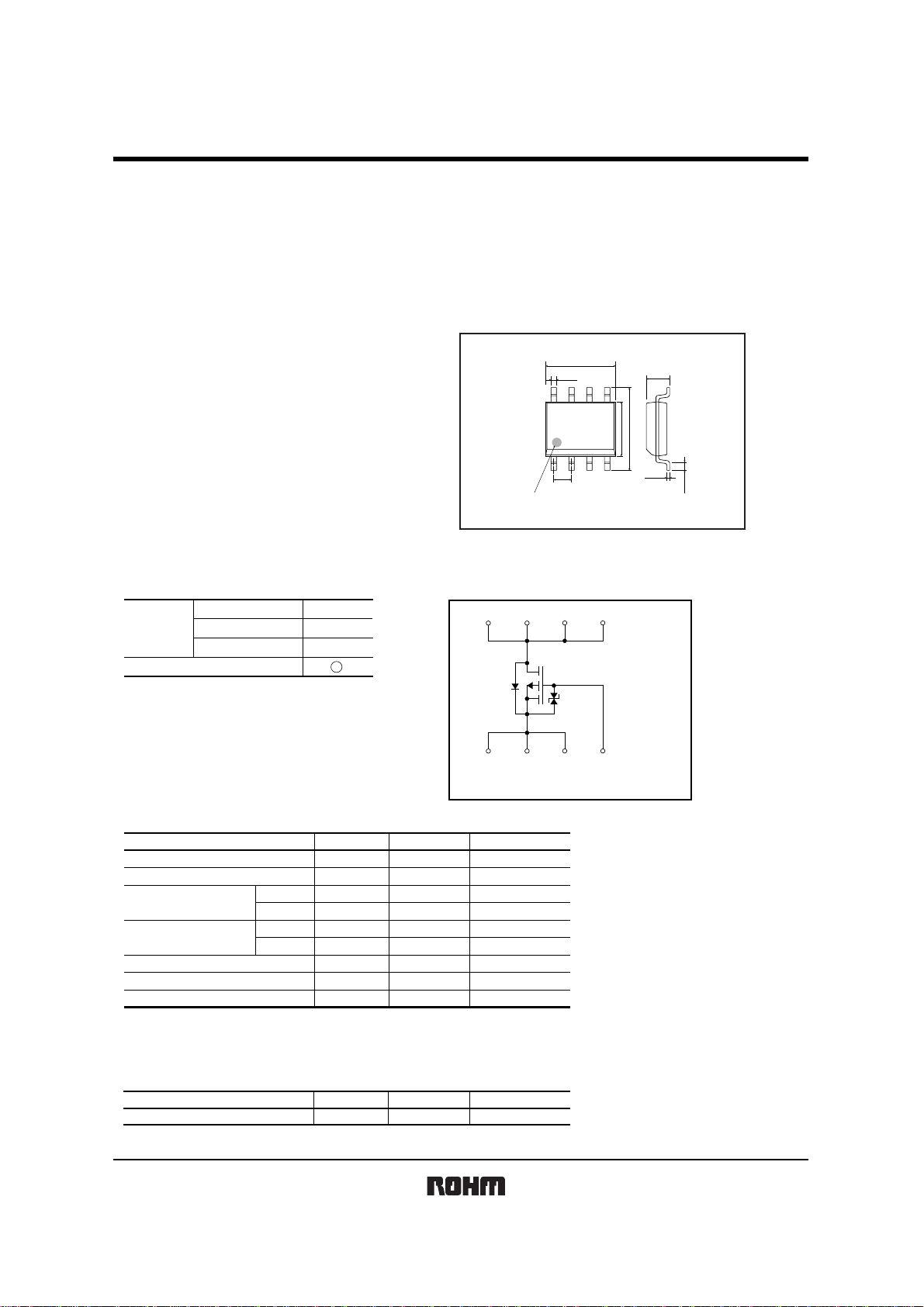

RSS090P03
Transistors
Rev.B 1/4
4V Drive
Pch
MOS FET
RSS090P03
zStructure zExternal dimensions (Unit : mm)
Silicon P-channel MOS FET
Each lead has same dimensions
SOP8
3.9
6.0
0.4Min.
5.0
1.27
0.2
1.75
(
1
)
(
4
)
(
8
)
(
5
)
0.4
1pin mark
zFeatures
1) Low On-resistance.
2) Built-in G-S Protection Diode.
3) Small Surface Mount Package (SOP8).
zApplication
Power switching, DC / DC converter.
zPackaging specifications zEquivalent circuit
Package
Code
Taping
Basic ordering unit (pieces)
RSS090P03
TB
2500
Type
(1) Source
(2) Source
(3) Source
(4) Gate
(5) Drain
(6 )Drain
(7) Drain
(8) Drain
∗1 ESD PROTECTION DIODE
∗2 BODY DIODE
∗2
∗1
(8) (7) (6) (5)
(1) (2) (3) (4)
zAbsolute maximum ratings (Ta=25°C)
∗1
∗1
∗2
Parameter
V
V
DSS
Symbol
−30
V
V
GSS
±20
A
I
D
±9.0
A
I
DP
±36
A
I
S
−1.6
A
I
SP
−36
W
P
D
2.0
°C
Tch 150
°C
Tstg
−55 to +150
Limits Unit
Drain-source voltage
Gate-source voltage
Drain current
Total power dissipation
Channel temperature
Range of Storage temperature
Continuous
Pulsed
Continuous
Pulsed
∗1 Pw≤10µs, Duty cycle≤1%
∗2 Mounted on a ceramic board
Source current
(Body diode)
zThermal resistance
°C / W
Rth (ch-a) 62.5
Parameter Symbol Limits Unit
Channel to ambient
∗
Mounted on a ceramic board.
∗
