US
UK
Taiwan
China
Singapore
+1-847-639-6400 sales@coilcraft.com
+44-1236-730595 sales@coilcraft-europe.com
+886-2-2264 3646 sales@coilcraft.com.tw
+86-21-6218 8074 sales@coilcraft.com.cn
+ 65-6484 8412 sales@coilcraft.com.sg
© Coilcraft Inc. 2012
This product may not be used in medical of high
risk applications without prior Coilcraft appr
oval.
Specification subject to change without notice.
Please check out web site for latest infor
mation.

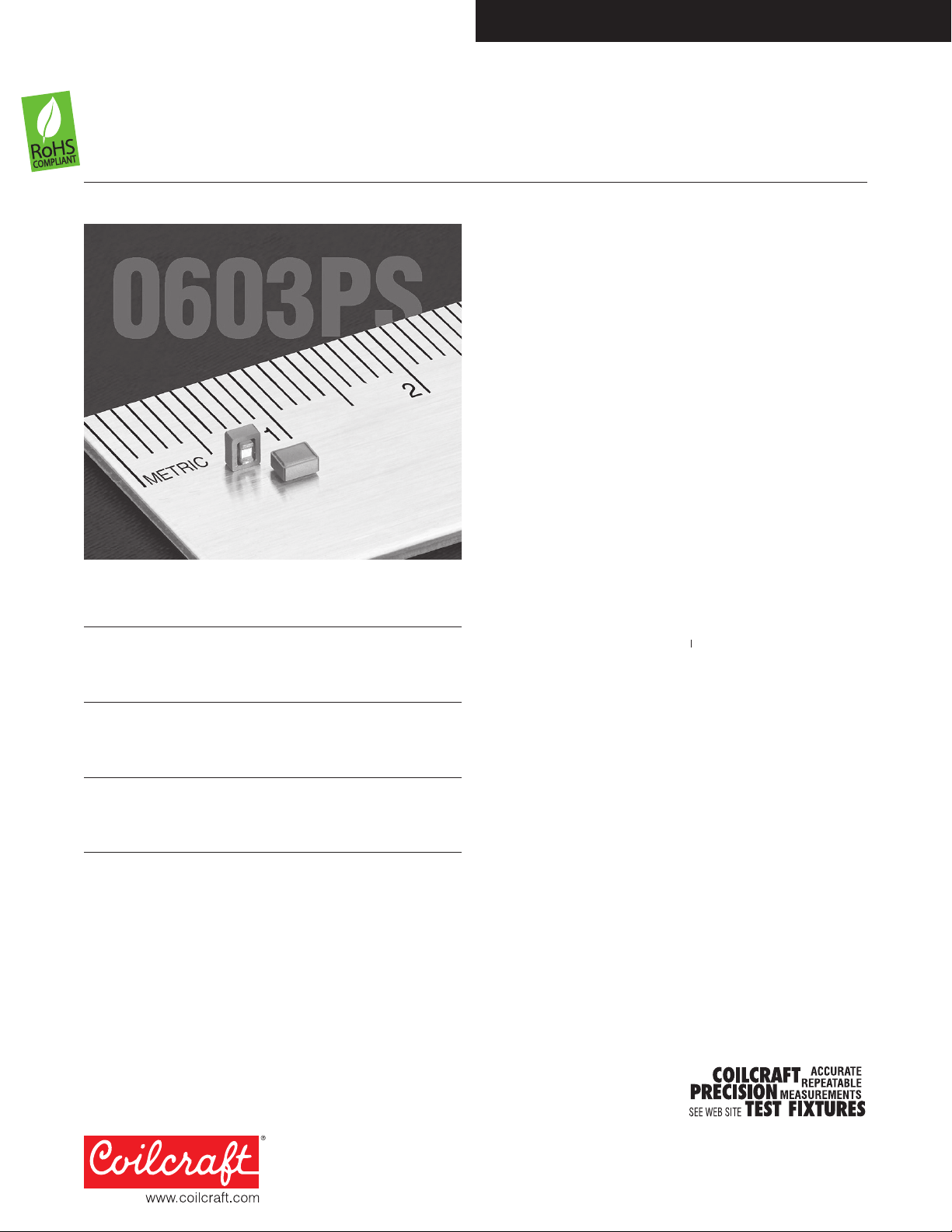

Shielded High SRF Inductors
–
0603PS
Document 266-1
Document 266-1 Revised 03/14/12
DCR
4
SRF
5
Part
L ±10%
2
Q min
3
max typ
Isat
6
Irms
7
number
1
(µH) at 1 MHz (Ohms) (MHz) (A) (A)
0603PS-781KL_ 0.78 15 0.24 475 0.55 1.30
0603PS-102KL_ 1.0 15 0.26 390 0.40 1.00
0603PS-182KL_ 1.8 15 0.54 155 0.39 0.70
0603PS-222KL_ 2.2 15 0.75 245 0.33 0.60
0603PS-272KL_ 2.7 15 0.75 127 0.33 0.55
0603PS-332KL_ 3.3 15 0.88 72 0.32 0.50
0603PS-392KL_ 3.9 15 1.00 72 0.27 0.48
0603PS-472KL_ 4.7 15 1.08 64 0.26 0.47
0603PS-562KL_ 5.6 15 1.23 51 0.25 0.41
0603PS-682KL_ 6.8 15 1.37 39 0.23 0.40
0603PS-822KL_ 8.2 20 1.43 30 0.22 0.39
0603PS-103KL_ 10 20 1.60 30 0.21 0.38
0603PS-153KL_ 15 20 1.92 22 0.16 0.35
0603PS-223KL_ 22 20 2.96 16 0.13 0.27
0603PS-333KL_ 33 20 5.63 12 0.10 0.20
0603PS-473KL_ 47 20 5.69 12 0.10 0.18
1. When ordering, please specify packaging code:
0603PS-473KLC
Packaging: C = 7″ machine-ready reel. EIA-481 embossed plastic
tape (2000 parts per full reel).
B = Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
D = 13″ machine-ready reel. EIA-481 embossed plastic
tape (7500 parts per full reel).
2. Inductance measured at 100 kHz, 0.1 Vrms, using a Coilcraft SMD-A
fixture in an Agilent/HP 4263B LCR meter.
3. Q measured on an Agilent/HP 4291 with an Agilent/HP 16193 test
fixture.
4. DCR measured on a micro-ohmmeter and a Coilcraft CCF840 test
fixture.
5. SRF measured using an Agilent/HP 8753D network analyzer and a
Coilcraft SMD-D test fixture.
6. DC current at which the inductance drops 10% (typ) from its value
without current.
7. Current that causes a 40°C temperature rise from 25°C ambient.
8. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Core material Ceramic/Ferrite
Core and winding loss See www.coilcraft.com/coreloss
Terminations RoHS compliant silver-palladium-platinum-glass frit.
Weight 26.4 – 27.9 mg
Ambient temperature –40°C to +65°C with Irms current, +65°C to
+105°C with derated current
Storage temperature Component: –40°C to +105°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 2000/7″reel; 7500/13″ reel Plastic tape: 8 mm wide,
0.23 mm thick, 4 mm pocket spacing, 1.8 mm pocket depth
PCB washing Only pure water or alcohol recommended
• HigherSRFthanourotherpowerinductors
• Highinductancewithtighttolerance
• Excellentcurrenthandlingforapartthissize
