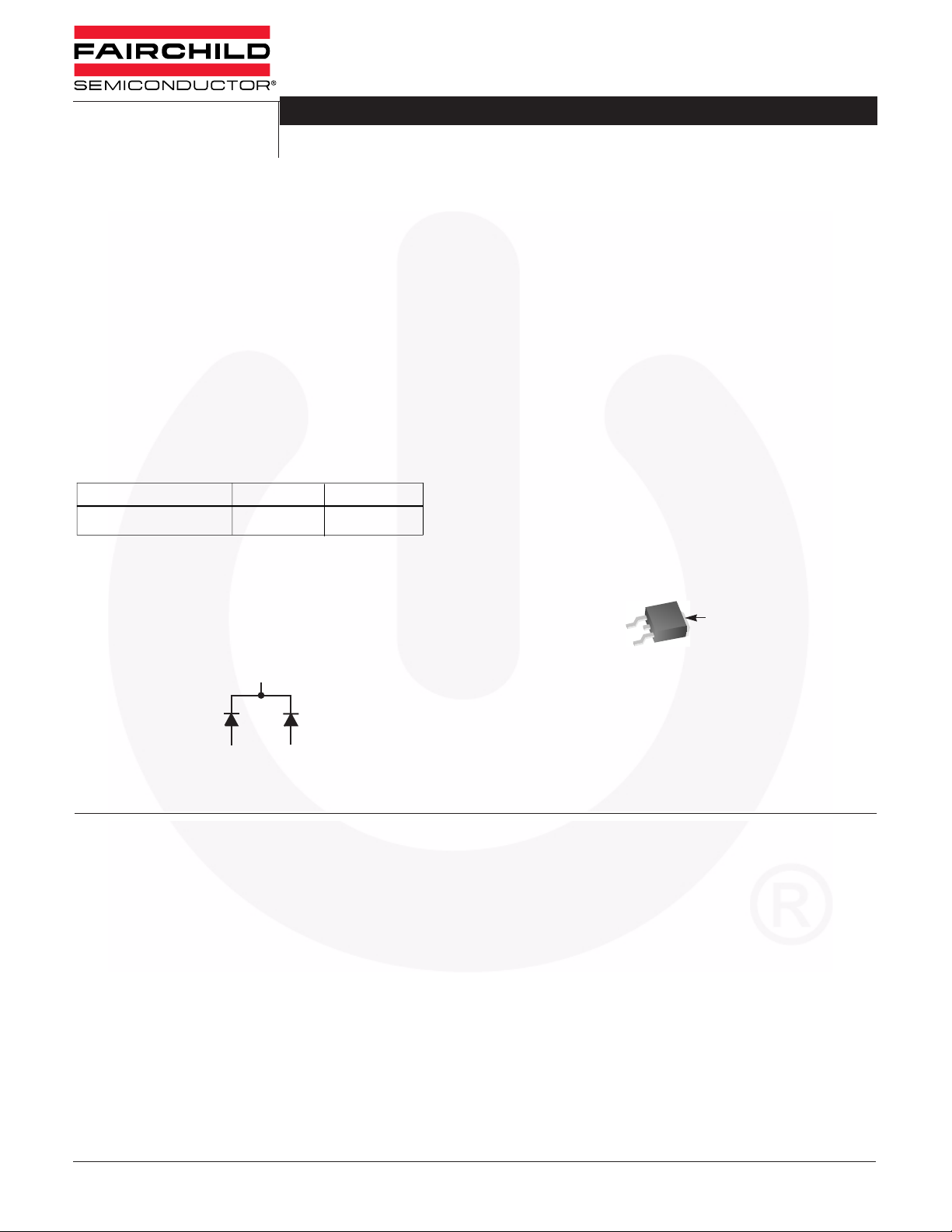

12 A, 200 V, Ultrafast Dual Diode
The RURD620CCS9A is an ultrafast dual diode with low
forward voltage drop. This device is intended for use as
freewheeling and clamping diodes in a variety of
switching power supplies and other power switching
applications. It is specially suited for use in switching
power supplies and industrial application.
Symbol
Features
• Ultrafast Recovery t
rr
= 30 ns (@ I
F
= 6 A)
• Max Forward Voltage, V
F
= 1.0 V (@ T
C
= 25°C)
• Reverse Voltage, V
RRM
= 200 V
• Avalanche Energy Rated
• RoHS Compliant
Applications
• Switching Power Supplies
• Power Switching Circuits
• General Purpose
Packaging
JEDEC TO-252
Ordering Information
NOTE: When ordering, use the entire part number. Add the suffix,
9A, to obtain the TO-252 variant in tape and reel, i.e.,
RURD620CCS9A.
A
1
K
A
2
ANODE 1
ANODE 2
CATHODE
(FLANGE)
Absolute Maximum Ratings
(Per Leg) T
C
= 25
o
C Unless Otherwise Specified
UNIT
Peak Repetitive Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
RRM
200 V
Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
RWM
200 V
DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V
R
200 V
Average Rectified Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
F(AV)
T
C
= 160
o
C
6A
Repetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FRM
Square Wave, 20 kHz
12 A
Nonrepetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FSM
Halfwave, 1 phase, 60 Hz
60 A
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P
D
45 W
Avalanche Energy (See Figures 10 and 11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E
AVL
10 mJ
Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
STG
,T
J
-65 to 175
o
C
Data Sheet November 2013
RURD620CCS9A
RURD620CCS9A
PART NUMBER PACKAGE
BRAND
RURD620CCS9A
TO-252-3L
UR620C
www.fairchildsemi.com
1
©2001 Fairchild Semiconductor Corporation
RHRD620CC9SA Rev. C1
