SBR is registered trademarks of Diodes Incorporated.

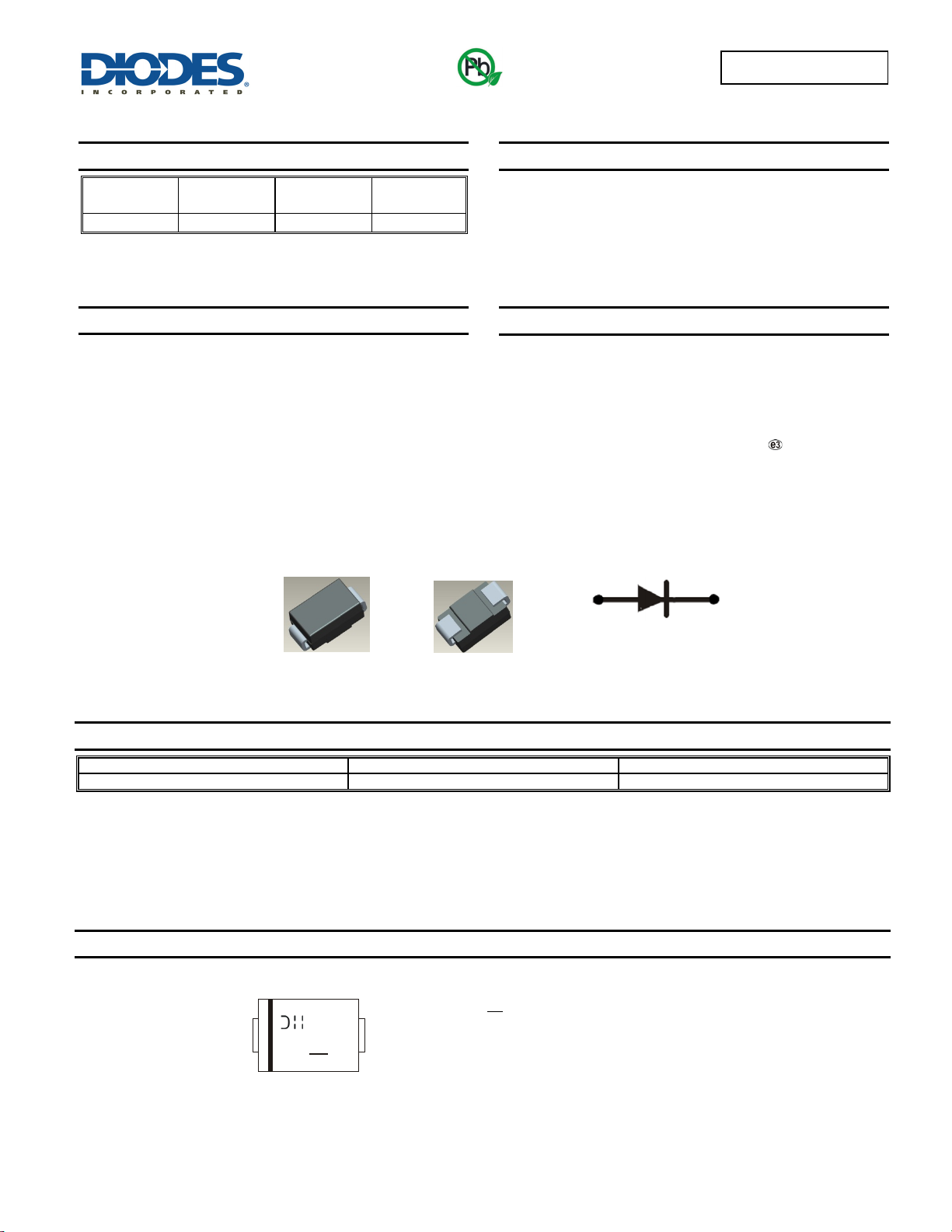

SBRT5A50SA
Document number: DS36940 Rev. 2 - 2
1 of 4
www.diodes.com
April 2014
© Diodes Incorporated
SBRT5A50SA
NEW PRODUCT ADVANCED INFORMATION
ADVANCE INFORMATION
ADVANCE INFORMATION
5A TrenchSBR
TRENCH SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V) I
O
(A)
V
F
(MAX) (V)
@ +25°C
I
R(MAX)
(mA)
@ +25°C
50 5 0.53 0.15
Description and Applications
The SBRT5A50SA is a 5A 50V single rectifier packaged in the low
profile SMA package. Providing low VF and excellent high
temperature stability, this device is ideal for use in general
rectification applications such as:
Boost Diode
Blocking Diode
Recirculating Diode
Features and Benefits
Reduced ultra-low forward voltage drop (V
F
); better efficiency
and cooler operation.
Reduced high temperature reverse leakage; Increased reliability
against thermal runaway failure in high temperature operation.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: SMA
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.064 grams (approximate)
Ordering Information (Note 4)
Part Number Case Packaging
SBRT5A50SA-13 SMA 5000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Green
TX5 = Product Type Marking Code
YWW = Date Code Marking
Y = Last digit of year (ex: 4 for 2014)
WW = Week code 01 to 53
A
B = Foundry and Assembly Code
YWW
TX5
AB
Device symbol
SMA
Top View
Bottom View
