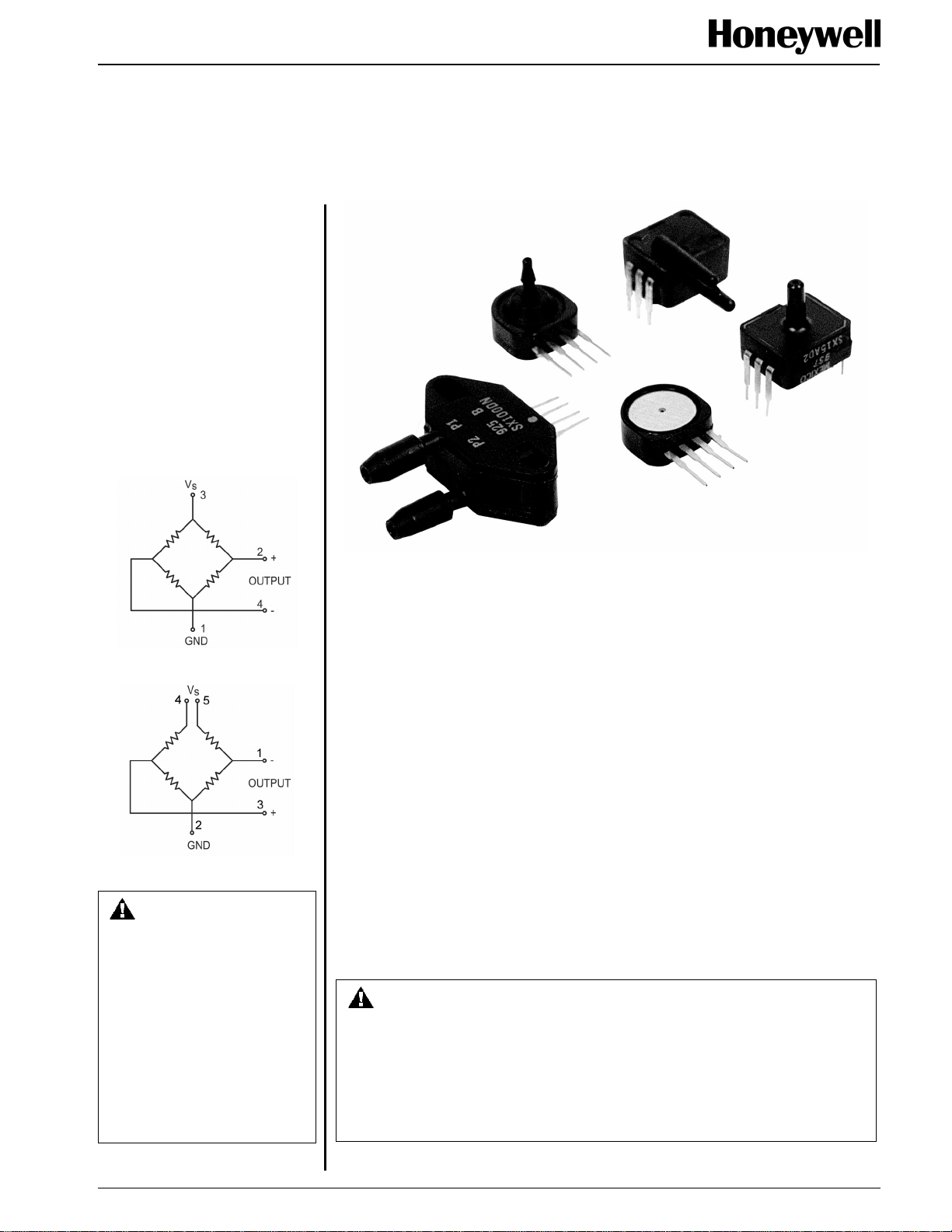

Silicon Pressure Sensors
0 psi to 5 psi to 0 psi to 300 psi
SCC Series
Sensing and Control
FEATURES
• Low Cost Sensor Element
• Internal Temperature
Compensation
• Differential or Gage
Pressures
TYPICAL APPLICATIONS
• Pneumatic Controls
• Automotive Diagnostics
• Medical Equipment
• Dental Equipment
• Environmental Controls
EQUIVALENT CIRCUITS
Button, Nipple and “N” Packages
DIP Packages
WARNING
PERSONAL INJURY
DO NOT USE these
products as safety or
emergency stop devices or
in any other application
where failure of the product
could result in personal
injury.
Failure to comply with
these instructions could
result in death or serious
injury.
GENERAL DESCRIPTION
The SCC Series sensors offer an extremely low cost sensor element with a
temperature stable output when driven with a constant current source.
These integrated circuit sensors were designed for extremely cost sensitive
applications where precise accuracy over a wide temperature range is not
required. This series is intended for use with non-corrosive, non-ionic
working fluids such as air, and dry gases.
Absolute devices have an internal vacuum reference and an output voltage
proportional to applied pressure. The differential devices allow application of
pressure to either side of the diaphragm and devices are thereby available to
measure both differential and gage pressures.
This product is packaged either in standard low cost chip carrier “button”
package or a DIP package. Both packages are designed for applications
where the sensing element is to be integral to the OEM equipment. These
packages can be o-ring sealed, epoxied, and/or clamped onto a pressure
fitting. A closed bridge four pin SIP configuration is provided for electrical
connection to the button package. The DIP package offers a 5-pin open
bridge configuration.
WARNING
MISUSE OF DOCUMENTATION
• The information presented in this product sheet is for reference only.
Do not use this document as a product installation guide.
• Complete installation, operation, and maintenance information is
provided in the instructions supplied with each product.
Failure to comply with these instructions could result in death or
serious injury.
