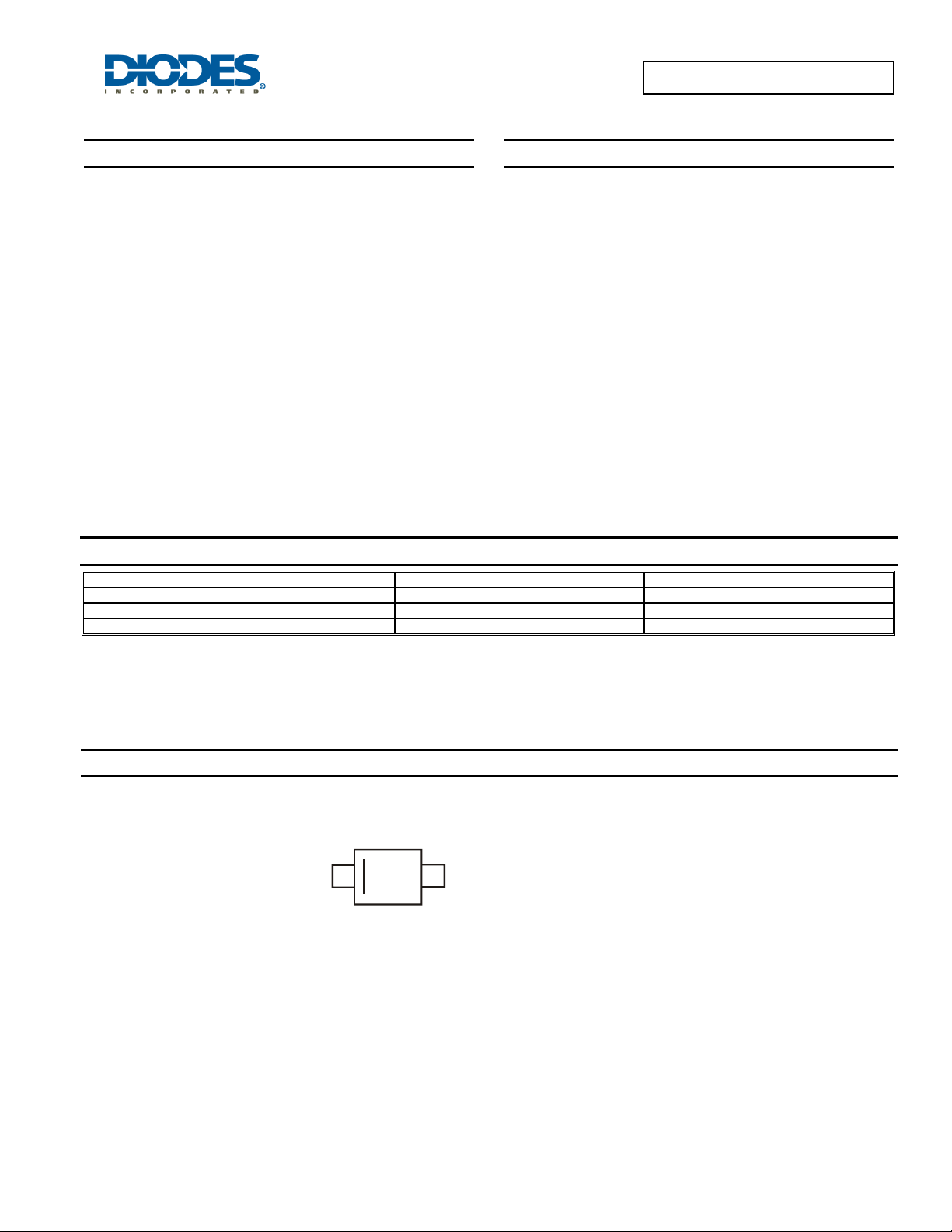

SD101AWS – SD101CWS
Document number: DS30078 Rev. 12 - 2
1 of 4
www.diodes.com
January 2012
© Diodes Incorporated
SD101AWS
–
SD101CWS
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
• Low Forward Voltage Drop
• Guard Ring Construction for Transient Protection
• Negligible Reverse Recovery Time
• Low Capacitance
• Ultra-small Surface Mount Package
• Lead Free/RoHS Compliant Version (Note 1)
• “Green” Device (Note 2)
Mechanical Data
• Case: SOD323
• Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Polarity: Cathode Band
• Leads: Matte Tin Finish annealed over Alloy 42 leadframe (Lead
Free Plating). Solderable per MIL-STD-202, Method 208
• Weight: 0.004 grams (approximate)
Ordering Information (Note 3)
Part Number Case Packaging
SD101AWS-7-F SOD323 3000/Tape & Reel
SD101BWS-7-F SOD323 3000/Tape & Reel
SD101CWS-7-F SOD323 3000/Tape & Reel
Notes: 1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
Top View
xx = Product Type Marking Code
S1 or SK = SD101AWS
S2 or SK = SD101BWS
S3 or SC or SK = SD101CWS
XX
