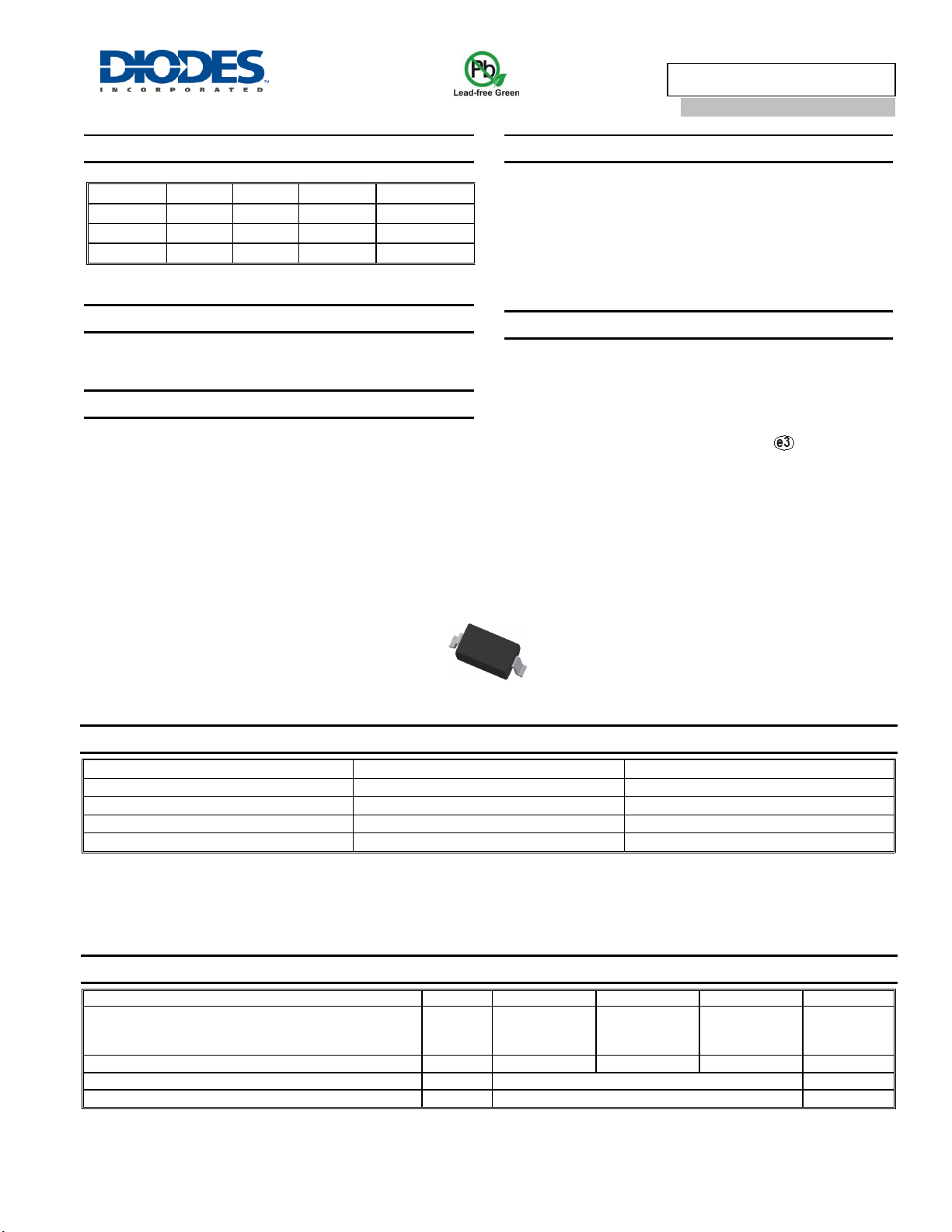

SD103AW - SD103CW
Document number: DS11013 Rev. 25 - 2
1 of 4
www.diodes.com
August 2016
© Diodes Incorporated
SD103AW - SD103CW
SCHOTTKY BARRIER DIODE
Product Summary (@T
A
= +25°C)
Name
V
RRM
(V)
I
O
(A)
V
F
Max (V)
I
R
Max
(µA)
SD103AW
40
0.2
0.60
5.0A@30V
SD103BW
30
0.2
0.60
5.0A@20V
SD103CW
20
0.2
0.60
5.0A@10V
Description
These are 0.2A, 20V/30V/40V Schottky rectifier packaged in SOD123
package.
Applications
Providing low V
F
and low reserve leakage, this device is ideal for use
in general rectification applications such as:
Low Voltage Rectification
High-Efficiency DC-DC Conversion
Switch Mode Power Supply
Inverse Polarity Protection
Features and Benefits
Low Forward Voltage Drop (V
F
)
Better Efficiency and Cooler Operation
Guard Ring Construction for Transient Protection
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: SOD123
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.01 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
SD103AW-7-F
SOD123
3000/Tape and Reel
SD103BW-7-F
SOD123
3000/Tape and Reel
SD103CW-7-F
SOD123
3000/Tape and Reel
SD103CW-13-F
SOD123
10,000/Tape and Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Maximum Ratings (@T
A
= +25°C, unless otherwise specified.)
Characteristic
Symbol
SD103AW
SD103BW
SD103CW
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
V
RRM
V
RWM
V
R
40
30
20
V
RMS Reverse Voltage
V
R(RMS)
28
21
14
V
Forward Continuous Current (Note 5)
I
FM
350
mA
Non-Repetitive Peak Forward Surge Current @ t 1.0s
I
FSM
1.5
A
Top View
SOD123
