SF2036E 其他数据使用手册 - muRata（村田）
制造商:
muRata（村田）
分类:
SAW滤波器
封装:
SM-3030-6
描述:
SF2036 系列 1880 MHz 60 MHz 通带 2.45 dB 损耗 -30 至 +85° C 表面贴装 声表面波滤波器
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
封装信息在P1P5
技术参数、封装参数在P1P5
电气规格在P1
导航目录
SF2036E数据手册
Page:
of 5 Go
若手册格式错乱，请下载阅览PDF原文件
©2010-2014 by Murata Electronics N.A., Inc.

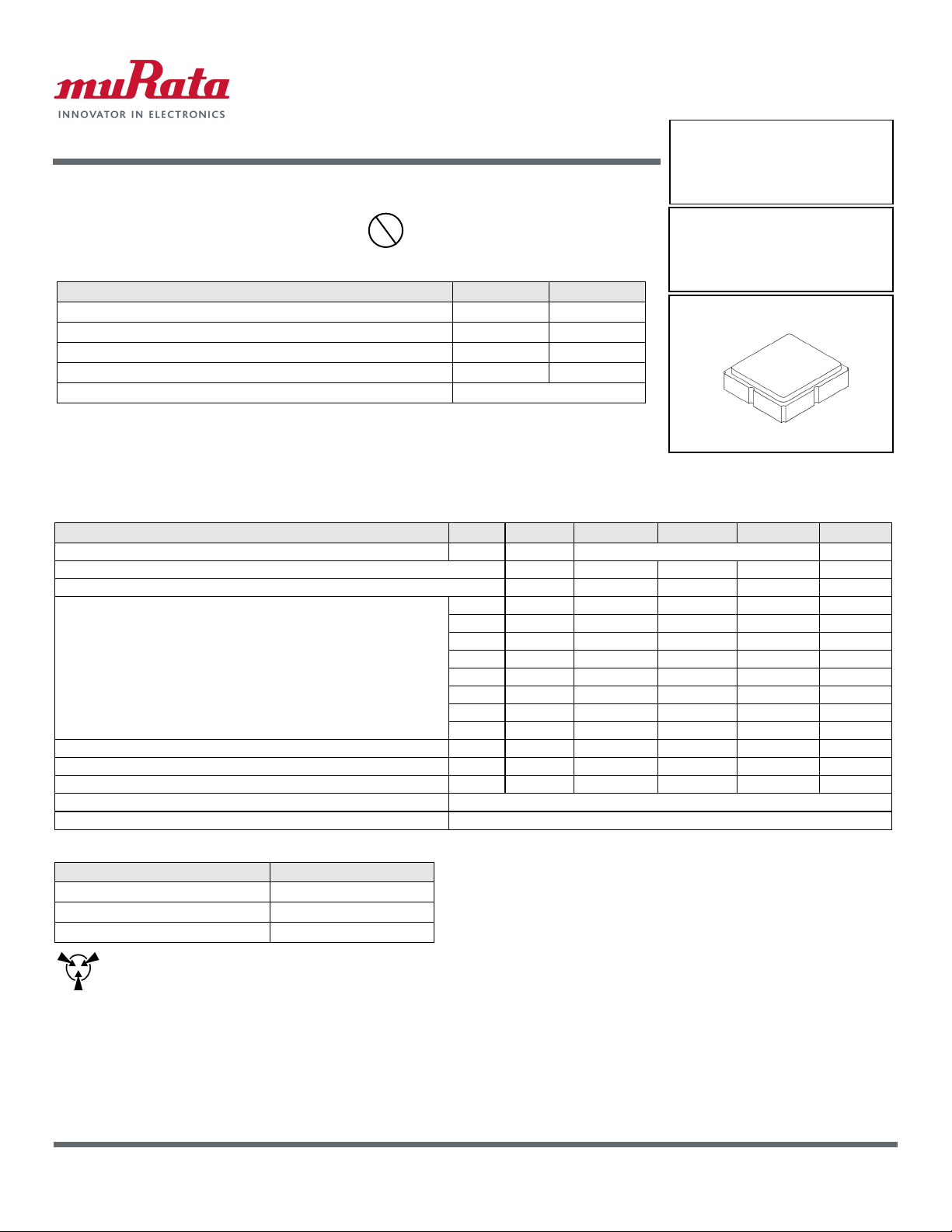

SF2036E (R) 3/26/14 Page 1 of 5 www.murata.com
RFM products are now
Murata products.
1. Unless noted otherwise, all specifications apply over the operating temperature range with filter soldered to the specified demonstration board with impedance
matching to 50 and measured with 50 network analyzer.
2. Unless noted otherwise, all frequency specifications are referenced to the nominal center frequency, fc.
3. Rejection is measured as attenuation below the minimum IL point in the passband. Rejection in final user application is dependent on PCB layout and external
impedance matching design. See Application Note No. 42 for details.
4. The design, manufacturing process, and specifications of this filter are subject to change.
5. US and international patents may apply.
6. Murata, stylized Murata logo, and Murata N.A., Inc. are registered trademarks of Murata Manufacturing Co., Ltd.
Electrical Characteristics
Electrical Connections
Characteristic Sym Notes Min Typ Max Units
Center Frequency f
C
1880 MHz
Insertion Loss, 1850 to 1910 MHz IL 2.45 4.0 dB
Amplitude Ripple, 1850 to 1910 MHz 1.2 2.5 dB
P-P
Attenuation Referenced to 0 dB:
DC to 1660 MHz 20 32 dB
1660 to 1721 MHz 30 35 dB
1721 to 1800 MHz 20 37 dB
1930 to 1990 MHz 719 dB
2000 to 2040 MHz 25 37 dB
2040 to 2480 MHz 31 38 dB
3700 to 3820 MHz 25 35 dB
Input/Output Return Loss, 1850 to 1910 MHz 7.4 13 dB
Source Impedance Z
S
50
Load Impedance Z
L
50
Case Style SM3030-6 3 x 3 mm Nominal Footprint
Lid Symbolization, Y=year, WW=week, S=shif 510 YWWS
Connection Terminals
Input 2
Output 5
Ground All others
• Low Insertion Loss L-Band SAW Filter
• 3.0 X 3.0 mm Surface-Mount Case
• Complies with Directive 2002/95/EC (RoHS)
Absolute Maximum Ratings
Rating Value Units
Maximum Incident Power in Passband +10 dBm
DC Voltage on any Non-ground Terminal 5 V
Operating Temperature Range -30 to +85 °C
Storage Temperature Range in Tape and Reel -40 to +85 °C
Maximum Soldering Profile, 5 Cycles Maximum 265 °C for 10 s
1880 MHz
SAW Filter
SF2036E
SM3030-6
CAUTION: Electrostatic Sensitive Device. Observe precautions for handling.
NOTES:
Pb
