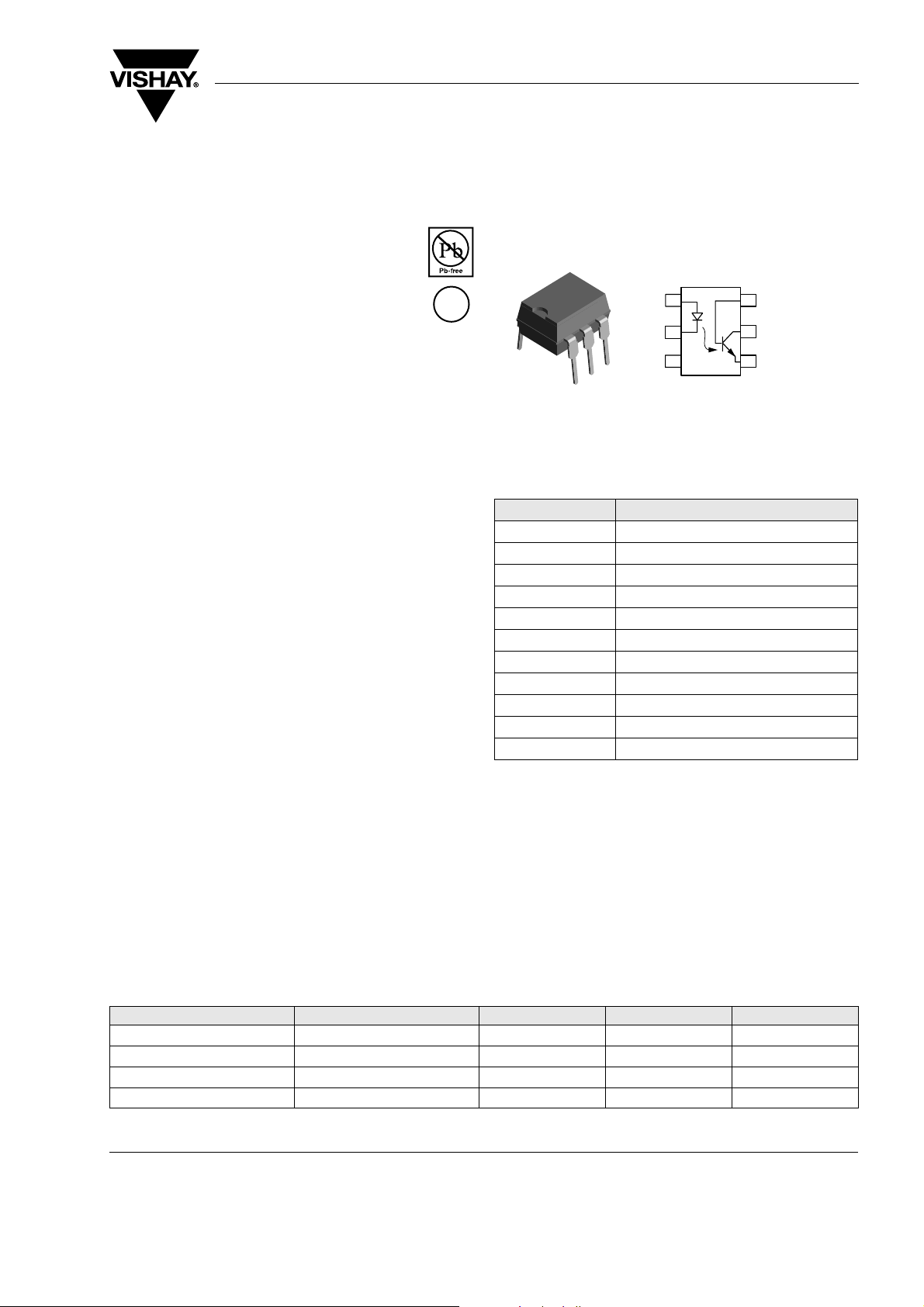

SFH600
Document Number 83662
Rev. 1.4, 26-Oct-04
Vishay Semiconductors
www.vishay.com
1
i179004i179004
1
2
3
6
5
4
B
C
E
A
C
NC
Optocoupler, Phototransistor Output, With Base Connection
Features
• Isolation Test Voltage (1.0 s), 5300 V
RMS
•V
CEsat
= 0.25 (≤ 0.4) V, I
F
= 10 mA,
I
C
= 2.5 mA
• Built to conform to VDE Requirements
• High Quality Premium Device
• Long Term Stability
• Storage Temperature, - 55 °C to + 150 °C
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
Agency Approvals
• UL1577, File No. E52744 System Code H or J,
Double Protection
• DIN EN 60747-5-2 (VDE0884)
DIN EN 60747-5-5 pending
Available with Option 1
• CSA 93751
• BSI IEC60950 IEC60065
Description
The SFH600 is an optocoupler with a GaAs LED emit-
ter which is optically coupled with a silicon planar pho-
totransistor detector. The component is packaged in
a plastic plug-in case, 20 AB DIN 41866.
The coupler transmits signals between two electri-
cally isolated circuits. The potential difference
between the circuits to be coupled should not exceed
the maximum permissible insulating voltage.
Order Information
For additional information on the available options refer to
Option Information.
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Stresses in excess of the absolute Maximum Ratings can cause permanent damage to the device. Functional operation of the device is
not implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absolute
Maximum Rating for extended periods of the time can adversely affect reliability.
Input
Part Remarks
SFH600-0 CTR 40 - 80 %, DIP-6
SFH600-1 CTR 63 - 125 %, DIP-6
SFH600-2 CTR 100 - 200 %, DIP-6
SFH600-3 CTR 160 - 320 %, DIP-6
SFH600-0X007 CTR 40 - 80 %, SMD-6 (option 7)
SFH600-1X007 CTR 63 - 125 %, SMD-6 (option 7)
SFH600-1X009 CTR 63 - 125 %, SMD-6 (option 9)
SFH600-2X006 CTR 100 - 200 %, DIP-6 400 mil (option 6)
SFH600-2X007 CTR 100 - 200 %, SMD-6 (option 7)
SFH600-3X006 CTR 160 - 320 %, DIP-6 400 mil (option 6)
SFH600-3X007 CTR 160 - 320 %, SMD-6 (option 7)
Parameter Test condition Symbol Value Unit
Reverse voltage V
R
6.0 V
DC forward current I
F
60 mA
Surge forward current t
p
= 10 μsI
FSM
2.5 A
Total power dissipation P
diss
100 mW
e3
