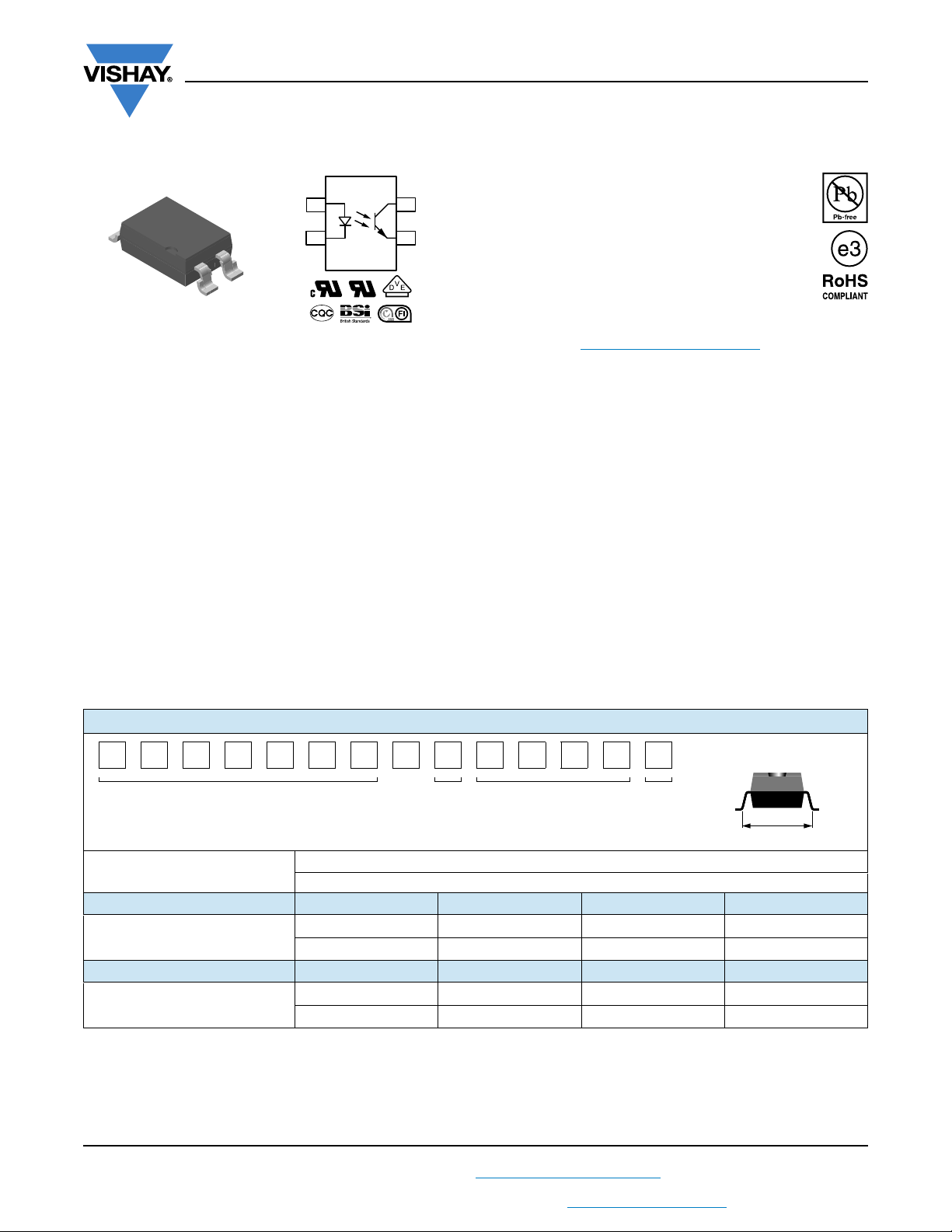

SFH6156
www.vishay.com
Vishay Semiconductors
Rev. 2.7, 19-Oct-15
1
Document Number: 83671
For technical questions, contact: optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Optocoupler, Phototransistor Output, High Reliability, 5300 V
RMS
DESCRIPTION
The SFH6156 features a variety of transfer ratios, low
coupling capacitance and high isolation voltage. This
coupler has a GaAs infrared diode emitter, which is optically
coupled to a silicon planar phototransistor detector, and is
incorporated in a plastic SMD package.
The coupling devices are designed for signal transmission
between two electrically separated circuits.
FEATURES
• Excellent CTR linearity depending on forward
current
• Isolation test voltage, 5300 V
RMS
• Fast switching times
• Low CTR degradation
• Low coupling capacitance
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
APPLICATIONS
• Switchmode power supply
• Telecom
• Battery powered equipment
AGENCY APPROVALS
The safety application model number covering all products
in this datasheet is SFH615A. This model number should be
used when consulting safety agency documents.
• UL1577, file no. E52744 system code H or J, double
protection
• DIN EN 60747-5-5 (VDE 0884-5) available with option 1
• cUL tested to CSA 22.2 bulletin 5A
• BSI IEC 60950, IEC 60065
• FIMKO EN6005, EN60950-1
• CQC G8898-2011
E
CA
C
1
2
4
3
17448-5
1
ORDERING INFORMATION
SFH6156 - #X001T
PART NUMBER CTR
BIN
PACKAGE OPTION TAPE
AND
REEL
AGENCY CERTIFIED/PACKAGE
CTR (%)
10 mA
UL, cUL, BSI, FIMKO, CQC 40 to 80 63 to 125 100 to 200 160 to 320
SMD-4, 100 mil, pitch
SFH6156-1 SFH6156-2 SFH6156-3 SFH6156-4
SFH6156-1T SFH6156-2T SFH6156-3T SFH6156-4T
VDE, UL, cUL, BSI, FIMKO, CQC 40 to 80 63 to 125 100 to 200 160 to 320
SMD-4, 100 mil, pitch
SFH6156-1X001 SFH6156-2X001 SFH6156-3X001 SFH6156-4X001
SFH6156-1X001T SFH6156-2X001T SFH6156-3X001T SFH6156-4X001T
SMD-4
> 8 mm
