Document Number: 83671 For technical questions, contact: optocoupler.answers@vishay.com
www.vishay.com
Rev. 2.1, 10-Dec-08 631

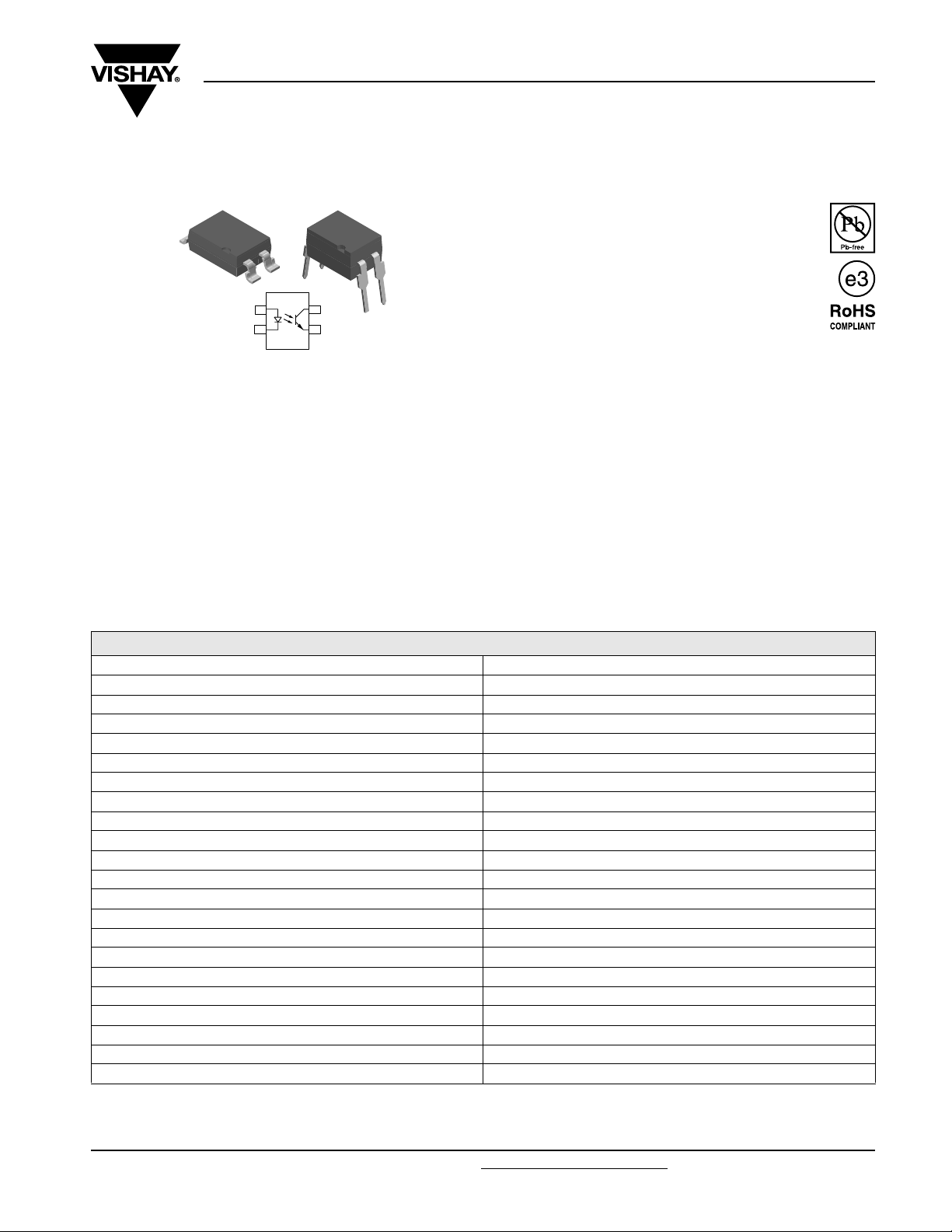

Optocoupler, Phototransistor Output,
High Reliability, 5300 V
RMS
SFH615A, SFH6156
Vishay Semiconductors
DESCRIPTION
The SFH615A (DIP) and SFH6156 (SMD) feature a variety
of transfer ratios, low coupling capacitance and high isolation
voltage. These couplers have a GaAs infrared diode emitter,
which is optically coupled to a silicon planar phototransistor
detector, and is incorporated in a plastic DIP-4 or SMD
package.
The coupling devices are designed for signal transmission
between two electrically separated circuits.
The couplers are end-stackable with 2.54 mm lead spacing.
Creepage and clearance distances of > 8.0 mm are achieved
with option 6. This version complies with IEC 60950
(DIN VDE 0805) for reinforced insulation up to an operation
voltage of 400 V
RMS
or DC. Specifications subject to change.
FEATURES
• Excellent CTR linearity depending on forward
current
• Isolation test voltage, 5300 V
RMS
• Fast switching times
• Low CTR degradation
• Low coupling capacitance
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC and
WEEE 2002/96/EC
APPLICATIONS
• Switchmode power supply
• Telecom
• Battery powered equipment
AGENCY APPROVALS
• UL1577, file no. E52744 system code H or J, double
protection
• DIN EN 60747-5-5 (VDE 0884) available with option 1
Note
For additional information on the available options refer to option information. See tape and reel section for 4 pin optocouplers T0 with 90°
rotation.
1
2
4
3
E
C
A
C
17448
1
1
ORDER INFORMATION
PART REMARKS
SFH615A-1 CTR 40 % to 80 %, DIP-4
SFH615A-2 CTR 63 % to 125 %, DIP-4
SFH615A-3 CTR 100 % to 200 %, DIP-4
SFH615A-4 CTR 160 % to 320 %, DIP-4
SFH6156-1 CTR 40 % to 80 %, SMD-4
SFH6156-2 CTR 63 % to 125 %, SMD-4
SFH6156-3 CTR 100 % to 200 %, SMD-4
SFH6156-4 CTR 160 % to 320 %, SMD-4
SFH615A-1X006 CTR 40 % to 80 %, DIP-4 400 mil (option 6)
SFH615A-1X007 CTR 40 % to 80 %, SMD-4 (option 7)
SFH615A-2X006 CTR 63 % to 125 %, DIP-4 400 mil (option 6)
SFH615A-2X007 CTR 63 % to 125 %, SMD-4 (option 7)
SFH615A-2X009 CTR 63 % to 125 %, SMD-4 (option 9)
SFH615A-3X006 CTR 100 % to 200 %, DIP-4 400 mil (option 6)
SFH615A-3X007 CTR 100 % to 200 %, SMD-4 (option 7)
SFH615A-3X008 CTR 100 % to 200 %, SMD-4 (option 8)
SFH615A-3X009 CTR 100 % to 200 %, SMD-4 (option 9)
SFH615A-4X006 CTR 160 % to 320 %, DIP-4 400 mil (option 6)
SFH615A-4X007 CTR 160 % to 320 %, SMD-4 (option 7)
SFH615A-4X008 CTR 160 % to 320 %, SMD-4 (option 8)
SFH615A-4X009 CTR 160 % to 320 %, SMD-4 (option 9)
