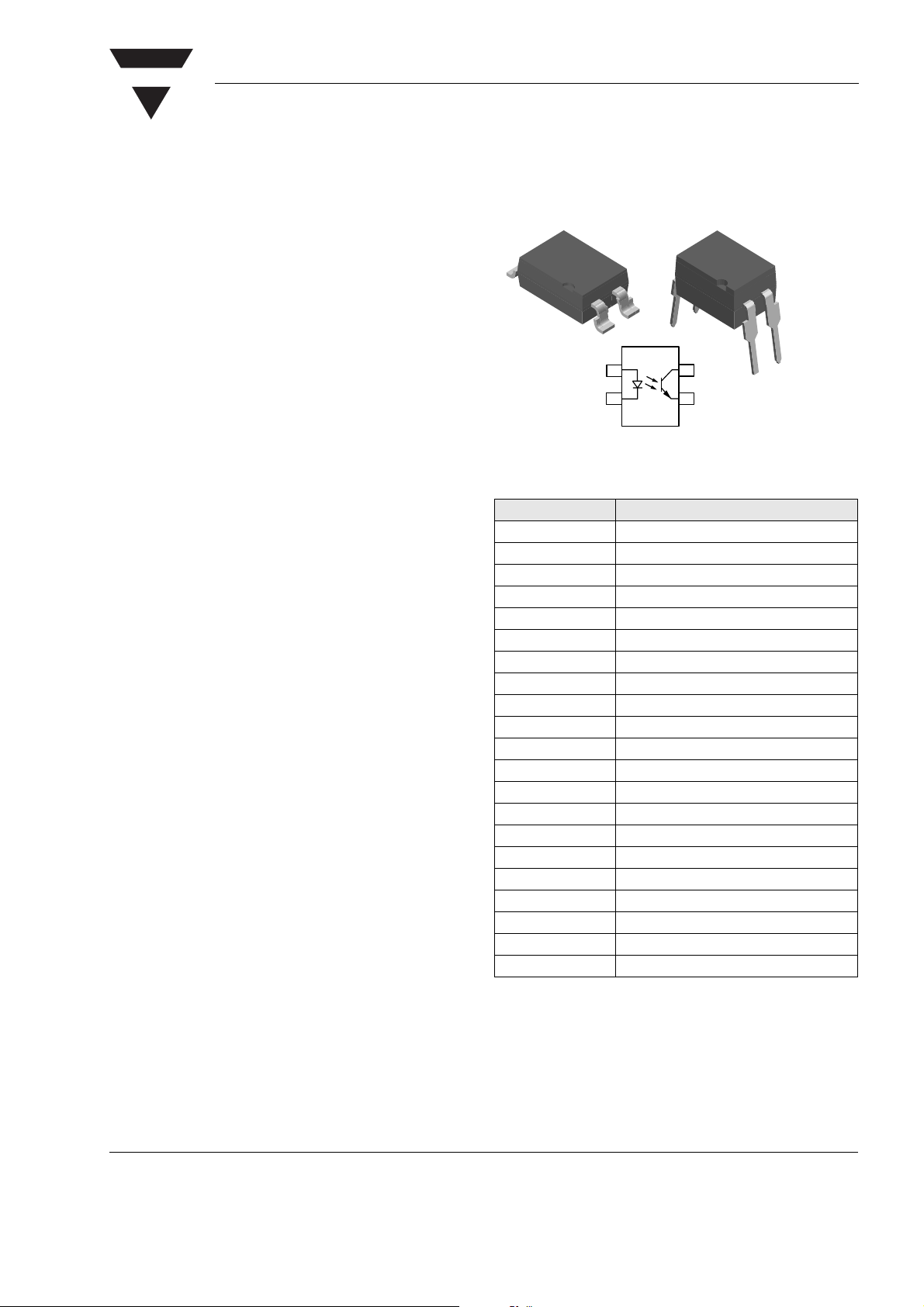

VISHAY
SFH615A / SFH6156
Document Number 83671
Rev. 1.6, 20-Jul-04
Vishay Semiconductors
www.vishay.com
1
1
2
4
3
E
C
A
C
17448
1
1
Optocoupler, High Reliability, 5300 V
RMS
Features
• Excellent CTR Linearity Depending on
Forward Current
• Isolation Test Voltage, 5300 V
RMS
• Fast Switching Times
• Low CTR Degradation
• Low Coupling Capacitance
• Lead-free component
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
Agency Approvals
• UL1577, File No. E52744 System Code H or J,
Double Protection
• DIN EN 60747-5-2 (VDE0884)
DIN EN 60747-5-5 pending
Available with Option 1
Applications
Switchmode power supply
Telecom
Battery powered equipment
Description
The SFH615A (DIP) and SFH6156 (SMD) feature a
variety of transfer ratios, low coupling capacitance
and high isolation voltage. These couplers have a
GaAs infrared diode emitter, which is optically cou-
pled to a silicon planar phototransistor detector, and
is incorporated in a plastic DIP-4 or SMD package.
The coupling devices are designed for signal trans-
mission between two electrically separated circuits.
The couplers are end-stackable with 2.54 mm lead
spacing.
Creepage and clearance distances of > 8.0 mm are
achieved with option 6. This version complies with
IEC 60950 (DIN VDE 0805) for reinforced insulation
up to an operation voltage of 400 V
RMS
or DC.
Specifications subject to change.
Order Information
For additional information on the available options refer to
Option Information.
See TAPE AND REEL Section for 4-pin optocouplers T0 with 90 °
rotation.
Part Remarks
SFH615A-1 CTR 40 - 80 %, DIP-4
SFH615A-2 CTR 63 - 125 %, DIP-4
SFH615A-3 CTR 100 - 200 %, DIP-4
SFH615A-4 CTR 160 - 320 %, DIP-4
SFH6156-1 CTR 40 - 80 %, SMD-4
SFH6156-2 CTR 63 - 125 %, SMD-4
SFH6156-3 CTR 100 - 200 %, SMD-4
SFH6156-4 CTR 160 - 320 %, SMD-4
SFH615A-1X006 CTR 40 - 80 %, DIP-4 400 mil (option 6)
SFH615A-1X007 CTR 40 - 80 %, SMD-4 (option 7)
SFH615A-2X006 CTR 63 - 125 %, DIP-4 400 mil (option 6)
SFH615A-2X007 CTR 63 - 125 %, SMD-4 (option 7)
SFH615A-2X009 CTR 63 - 125 %, SMD-4 (option 9)
SFH615A-3X006 CTR 100 - 200 %, DIP-4 400 mil (option 6)
SFH615A-3X007 CTR 100 - 200 %, SMD-4 (option 7)
SFH615A-3X008 CTR 100 - 200 %, SMD-4 (option 8)
SFH615A-3X009 CTR 100 - 200 %, SMD-4 (option 9)
SFH615A-4X006 CTR 160 - 320 %, DIP-4 400 mil (option 6)
SFH615A-4X007 CTR 160 - 320 %, SMD-4 (option 7)
SFH615A-4X008 CTR 160 - 320 %, SMD-4 (option 8)
SFH615A-4X009 CTR 160 - 320 %, SMD-4 (option 9)
