Document Number: 83673 For technical questions, contact: optocoupler.answers@vishay.com
www.vishay.com
Rev. 1.9, 10-Dec-08 651

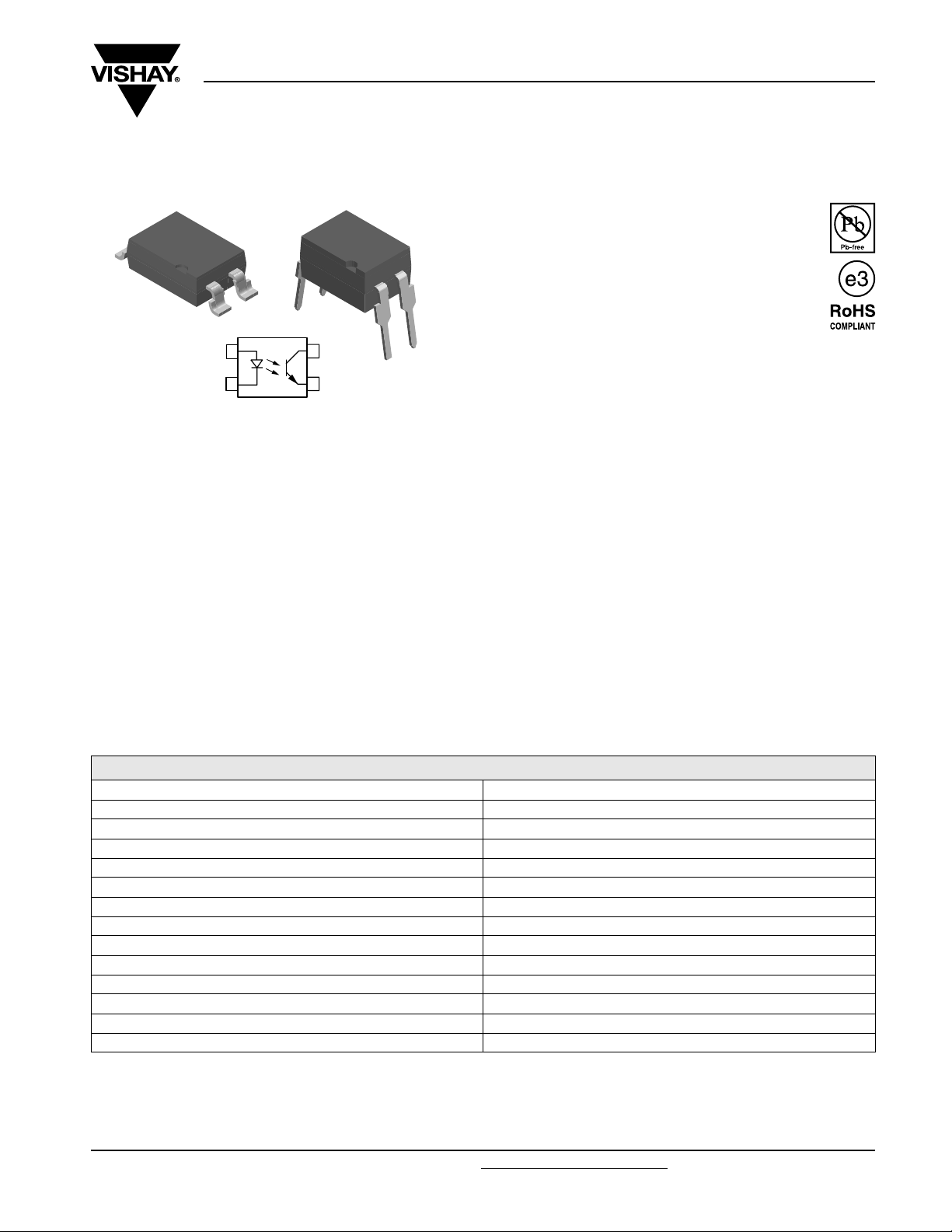

Optocoupler, Phototransistor Output,
Low Input Current
SFH618A, SFH6186
Vishay Semiconductors
DESCRIPTION
The SFH618A (DIP) and SFH6186 (SMD) feature a high
current transfer ratio, low coupling capacitance and high
isolation voltage. These couplers have a GaAs infrared diode
emitter, which is optically coupled to silicon planar
phototransistor detector, and is incorporated in a plastic
DIP-4 or SMD package.
The coupling devices are designed for signal transmission
between two electrically separated circuits.The couplers are
end-stackable with 2.54 mm lead spacing. Creepage and
clearance distances of > 8.0 mm achieved with option 6. This
version complies with IEC 60950 (DIN VDE 0805) for
reinforced insulation to an operation voltage of 400 V
RMS
or
DC.
FEATURES
• Good CTR linearity depending on forward
current
• Low CTR degradation
• High collector emitter voltage, V
CEO
= 55 V
• Isolation test voltage, 5300 V
RMS
• Low coupling capacitance
• End stackable, 0.100" (2.54 mm) spacing
• High common mode transient immunity
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC and
WEEE 2002/96/EC
APPLICATIONS
• Telecom
• Industrial controls
• Battery powered equipment
• Office machines
AGENCY APPROVALS
• UL1577, file no. E52744 system code H or J, double
protection
• CSA 93751
• DIN EN 60747-5-5 (VDE 0884) available with option 1
• BSI IEC 60950; IEC 60065
•FIMKO
Note
For additional information on the available options refer to option information.
1
1
i179061
E
C
A
C
1
2
4
3
ORDER INFORMATION
PART REMARKS
SFH618A-2 CTR 63 % to 125 %, DIP-4
SFH618A-3 CTR 100 % to 200 %, DIP-4
SFH618A-4 CTR 160 % to 320 %, DIP-4
SFH618A-5 CTR 250 % to 500 %, DIP-4
SFH6186-2 CTR 63 % to 125 %, SMD-4
SFH6186-3 CTR 100 % to 200 %, SMD-4
SFH6186-4 CTR 160 % to 320 %, SMD-4
SFH6186-5 CTR 250 % to 500 %, SMD-4
SFH618A-3X006 CTR 100 % to 200 %, DIP-4 400 mil (option 6)
SFH618A-3X007 CTR 100 % to 200 %, SMD-4 (option 7)
SFH618A-4X006 CTR 160 % to 320 %, DIP-4 400 mil (option 6)
SFH618A-5X006 CTR 250 % to 500 %, DIP-4 400 mil (option 6)
SFH618A-5X007 CTR 250 % to 500 %, SMD-4 (option 7)
