Packaging, Tape and Reel Information
www.vishay.com
Vishay Semiconductors
Rev. 2.2, 06-Oct-11
1
Document Number: 83714
For technical questions, contact: optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Packaging, Tape and Reel Information
DESCRIPTION
Optocouplers are available in plastic dual-in-line packages
(DIP), SOP packages, and in a surface-mount, gull-wing,
lead bend configuration. Optocouplers purchased in the
DIP configuration are shipped in tubes. Optocouplers
purchased in a gull-wing configuration can be shipped in
tubes or on carrier tape. This section provides stick
specifications, tape and reel specifications, and component
information.
TUBE SPECIFICATIONS
Figure 1 shows the physical dimensions of transparent,
antistatic, plastic shipping tubes. Figure 2 shows tube safety
agency labeling and orientation information.
The following table lists the number of parts per tube.

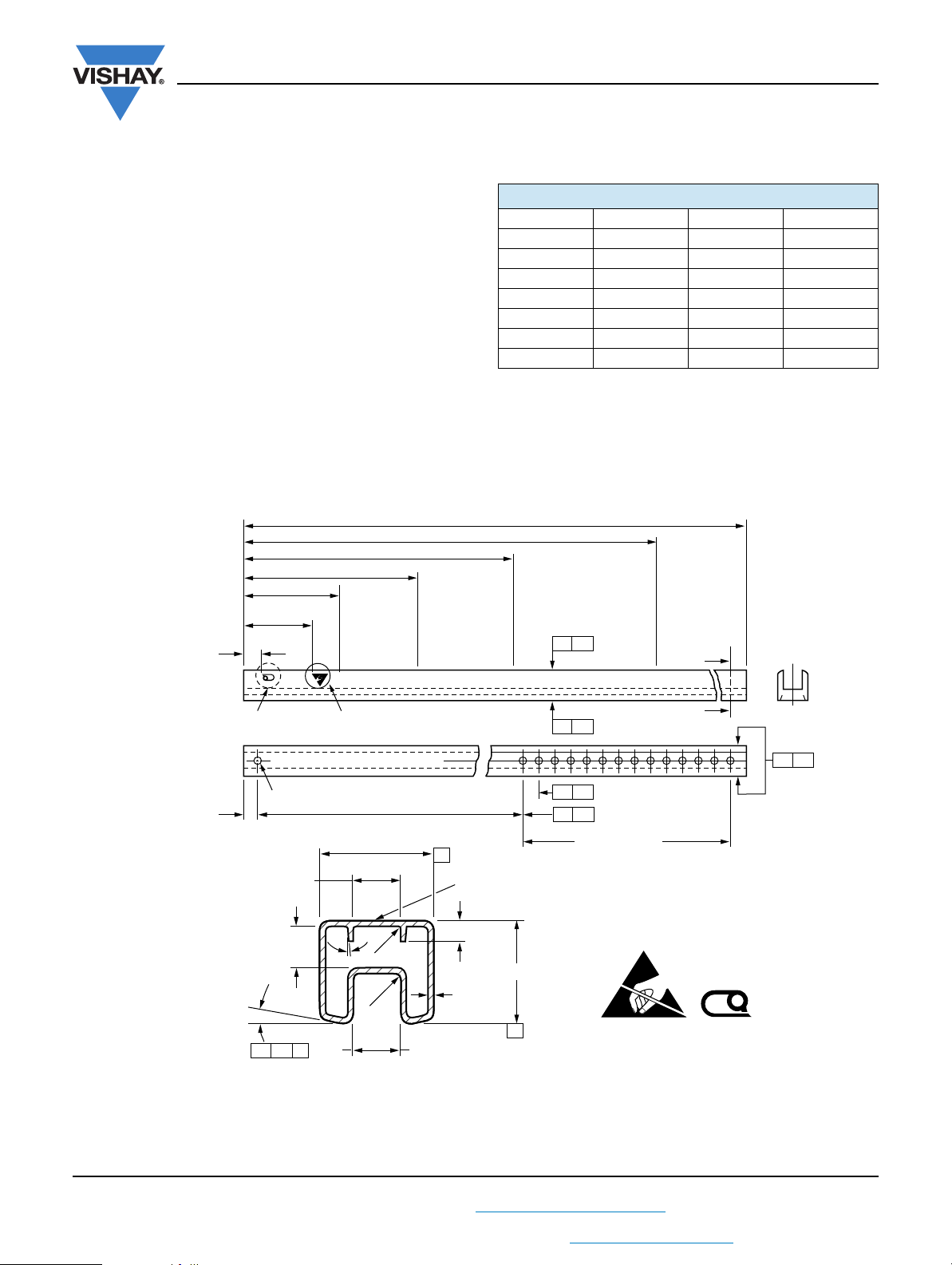

Fig. 1 - Shipping Tube Specifications for DIP Packages
DEVICES PER TUBS
TYPE UNITS/TUBE TUBES/BOX UNITS/BOX
DIP-16 25 40 1000
DIP-4 100 40 4000
DIP-6 50 40 2000
DIP-8 50 40 2000
HV, CNY64 40 50 2000
HV, CNY65 30 35 1050
HV, CNY66 25 35 875
MADE IN MALAYSIA
ANTISTATIC
Detail A
200 ± 0.5
125 ± 0.5
150 ± 0.5
Detail B
Detail
A
Detail B
10°
6°
Section A - B
B
R0.1
R 0.5
14 x
//
0.2
B
13 x 10 = 130
A
B
–1.0
Not to scale
Transparent rigid PVC
A
Dimensions in millimeters
17996
OPTOSEMICONDUCTOR
VISHAY
260 ± 0.5
330 ± 0.5
528 ± 0.2
30 ± 0.5
0.7 ± 0.5
3 ± 0.5
380 ± 1
12 ± 0.3
6.6 ± 0.3
4.4 ± 0.3
5.7 ± 0.15
11 ± 0.3
0.6 ± 0.1
2.7 ± 0.2
–1.0
1.0
–1.0
–1.0
