Document Number: 83686 For technical questions, contact: optocoupleranswers@vishay.com
www.vishay.com
Rev. 2.1, 17-May-11 3
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SFH690ABT, SFH690AT, SFH690BT, SFH690CT, SFH690DT
Optocoupler Phototransistor Output, SOP-4,
100 mil pitch, Mini-Flat Package
Vishay Semiconductors
Note
• Minimum and maximum values are testing requirements. Typical values are characteristics of the device and are the result of engineering
evaluation. Typical values are for information only and are not part of the testing requirements.

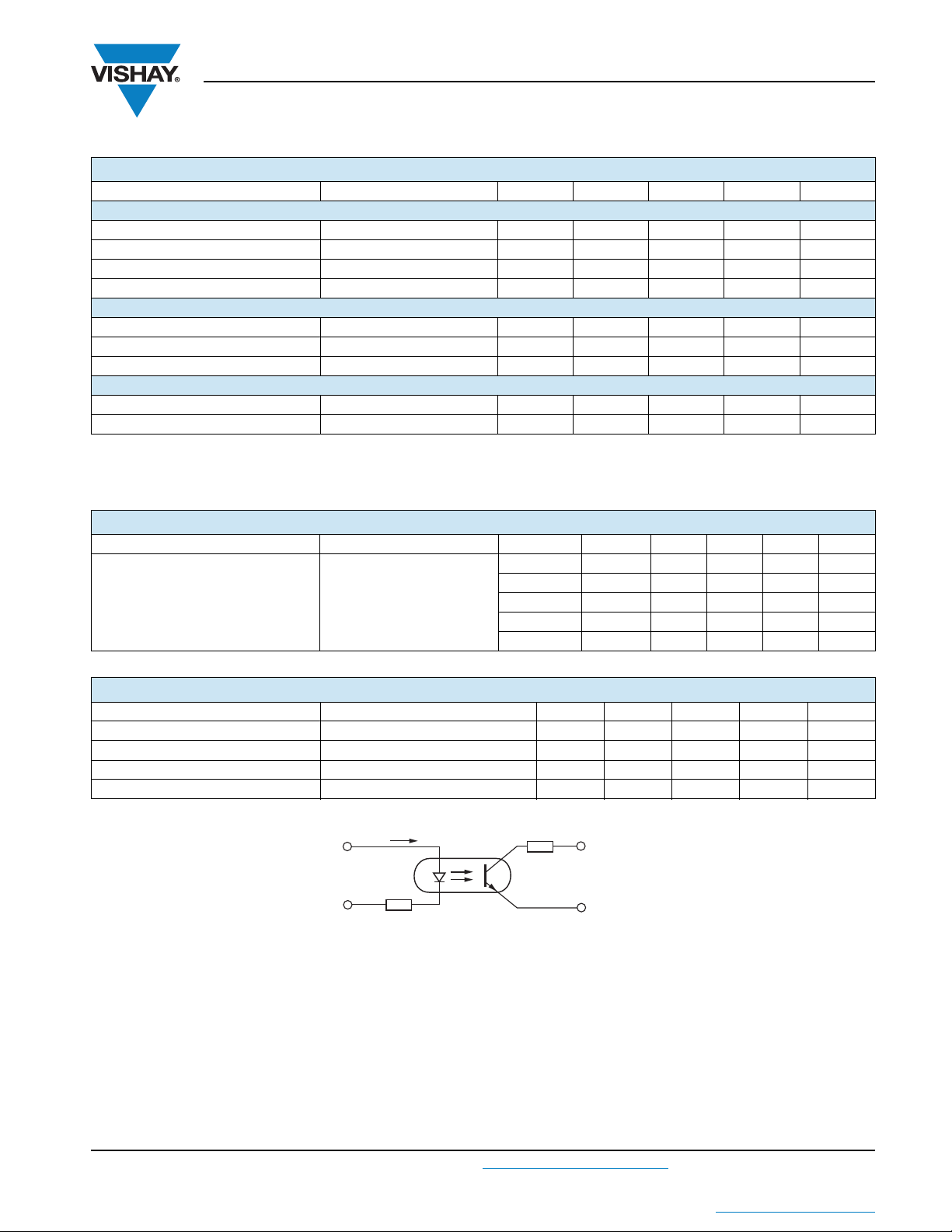

Fig. 2 - Switching Operation (without Saturation)
ELECTRICAL CHARACTERISTICS (T
amb
= 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT
INPUT
Forward voltage I
F
= 5 mA V
F
1.15 1.4 V
Reverse current V
R
= 6 V I
R
0.01 10 μA
Capacitance V
R
= 0 V, f = 1 MHz C
O
14 pF
Thermal resistance R
thJA
750 K/W
OUTPUT
Collector emitter leakage current V
CE
= 20 V I
CEO
100 nA
Collector emitter capacitance V
CE
= 5 V, f = 1 MHz C
CE
2.8 pF
Thermal resistance R
thJA
500 K/W
COUPLER
Collector emitter saturation voltage I
F
= 10 mA, I
C
= 2 mA V
CEsat
0.1 0.3 V
Coupling capacitance f = 1 MHz C
C
0.3 pF
CURRENT TRANSFER RATIO (T
amb
= 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
I
C
/I
F
I
F
= 5 mA, V
CE
= 5 V
SFH690ABT CTR 50 300 %
SFH690AT CTR 50 150 %
SFH690BT CTR 100 300 %
SFH690CT CTR 100 200 %
SFH690DT CTR 200 400 %
SWITCHING CHARACTERISTICS (T
amb
= 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT
Rise time I
C
= 2 mA, V
CC
= 5 V, R
L
= 100 t
r
3μs
Fall time I
C
= 2 mA, V
CC
= 5 V, R
L
= 100 t
f
4μs
Turn-on time I
C
= 2 mA, V
CC
= 5 V, R
L
= 100 t
on
5μs
Turn-off time I
C
= 2 mA, V
CC
= 5 V, R
L
= 100 t
off
3μs
isfh690at_01
R
L
=100Ω
V
CC
=5V
50 Ω
I
F
