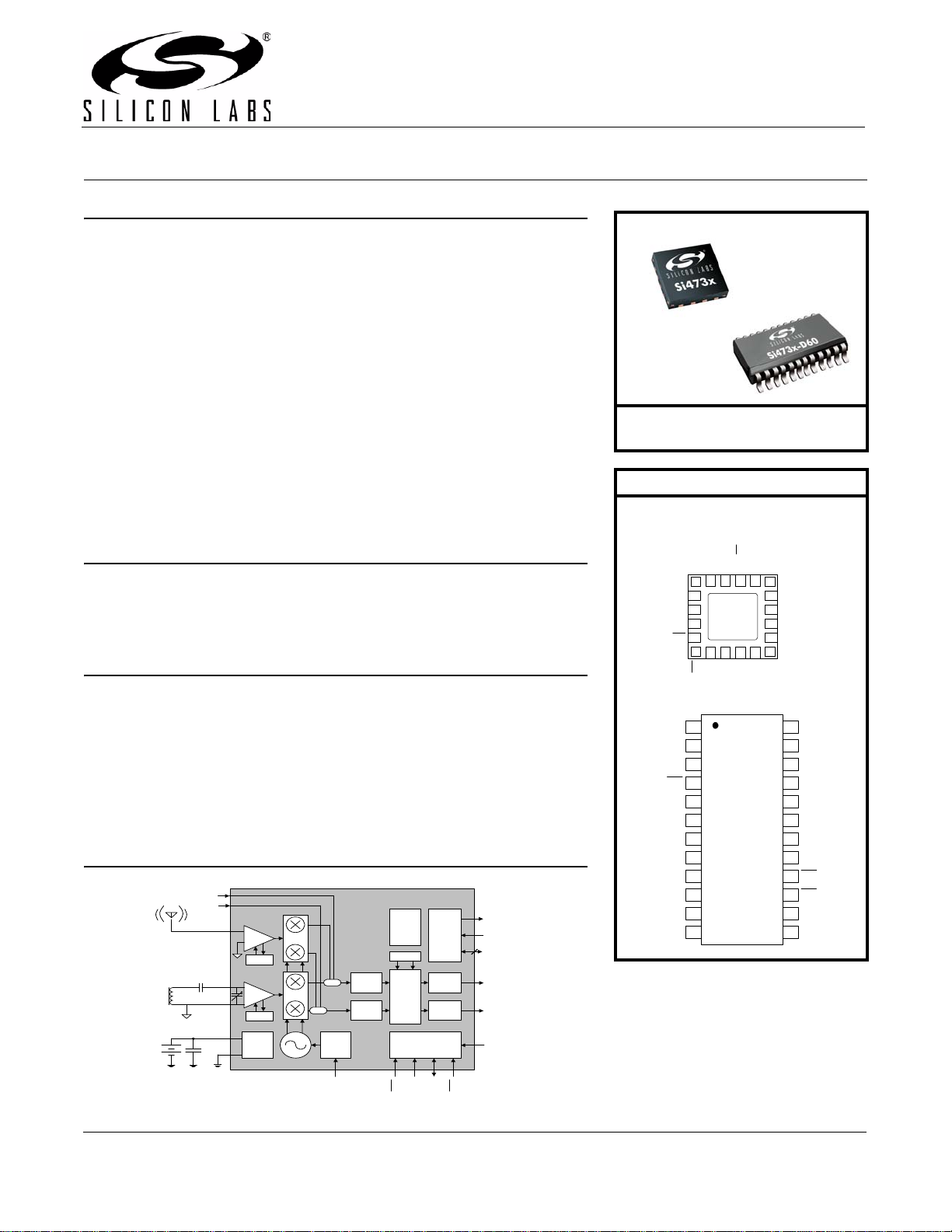

Rev. 1.1 11/11 Copyright © 2011 by Silicon Laboratories Si473x-D60
Si4730/31/34/35-D60
BROADCAST AM/FM/SW/LW RADIO RECEIVER
Features
Applications
Description
The Si473x-D60 digital CMOS AM/FM radio receiver IC integrates the complete
tuner function from antenna input to digital audio output and includes a stereo
audio AUXIN ADC input for converting analog audio into standard I2S digital
audio, enabling a cost efficient digital audio platform for consumer electronic
applications with high TDMA noise immunity, superior radio performance, and
high fidelity audio power amplification. When enabling the analog inputs in stereo
AUXIN ADC-mode, the Si473x-D60 supports I2S digital audio output only (no
analog output).
Functional Block Diagram
Worldwide FM band support
(64–108 MHz)
Worldwide AM band support
(520–1710 kHz)
SW band support (Si4734/35)
(2.3–26.1 MHz)
LW band support (Si4734/35)
(153–279 kHz)
Excellent real-world performance
Integrated VCO
Advanced AM/FM seek tuning
Automatic frequency control (AFC)
Automatic gain control (AGC)
Digital FM stereo decoder
Programmable de-emphasis
Advanced Audio Processing
Multiplexed stereo audio AUXIN
ADC with 85 dB dynamic range
Seven selectable AM channel filters
AM/FM/SW/LW digital tuning
EN55020 compliant
No manual alignment necessary
Programmable reference clock
Adjustable soft mute control
RDS/RBDS processor (Si4731/35)
Digital audio out
2-wire and 3-wire control interface
Integrated LDO regulator
Wide range of ferrite loop sticks and
air loop antennas supported
QFN and SSOP packages
RoHS compliant
Table and portable radios
Mini/micro systems
CD/DVD and Blu-ray players
Stereo boom boxes
Modules for consumer electronics
Clock radios
Mini HiFi and docking stations
Entertainment systems
ADC
Si473x-D60
DSP
DAC
LOUT
ROUT
AFC
GPO/DCLK
LDO
VA
2.7~5.5 V (QFN)
2.0~5.5 V (SSOP)
RDS
(Si4731/
35)
AMI
VD
1.62 -3.6 V
SEN
CONTROL
INTERFACE
SCLK
LNA
AGC
LNA
AGC
GND
ADC
Mux
Mux
DAC
LOW-IF
SDIO
RST
DIGITAL
AUDIO
DFS
DOUT
LIN
RIN
RCLK
AM / LW
ANT
RFGND
FMI
FM / SW
ANT
+
This product, its features, and/or its
architecture is covered by one or more of
the following patents, as well as other
patents, pending and issued, both
foreign and domestic: 7,127,217;
7,272,373; 7,272,375; 7,321,324;
7,355,476; 7,426,376; 7,471,940;
7,339,503; 7,339,504.
Ordering Information:
See page 33.
Pin Assignments
Si473x-D60(SSOP)
Si473x-D60 (QFN)
GND
PAD
1
2
3
17181920
11
12
13
14
6
7 8 9
4
5
16
10
15
GPO2/[INT]
VD
DOUT/[LIN]
LOUT/[DFS]
ROUT/[DOUT]
GNDRST
NC
AMI
RCLK
SDIO
VA
FMI
RFGND
GPO3/[DCLK]
NC
GPO1
DFS/[RIN]
SCLK
SEN
LOUT/[DFS]
ROUT/[DOUT]
DBYP
VD
GPO2/[INT]
GPO3/[DCLK]
DOUT/[LIN]
DFS/[RIN]
1
2
3
4
5
6
7
8
9
10
11
12
GPO1
VA
SDIO
NC
NC
RCLK
SEN
FMI
RFGND
SCLK
GND
NC
NC
RST
GND
AMI
24
23
22
21
20
19
18
17
16
15
14
13
