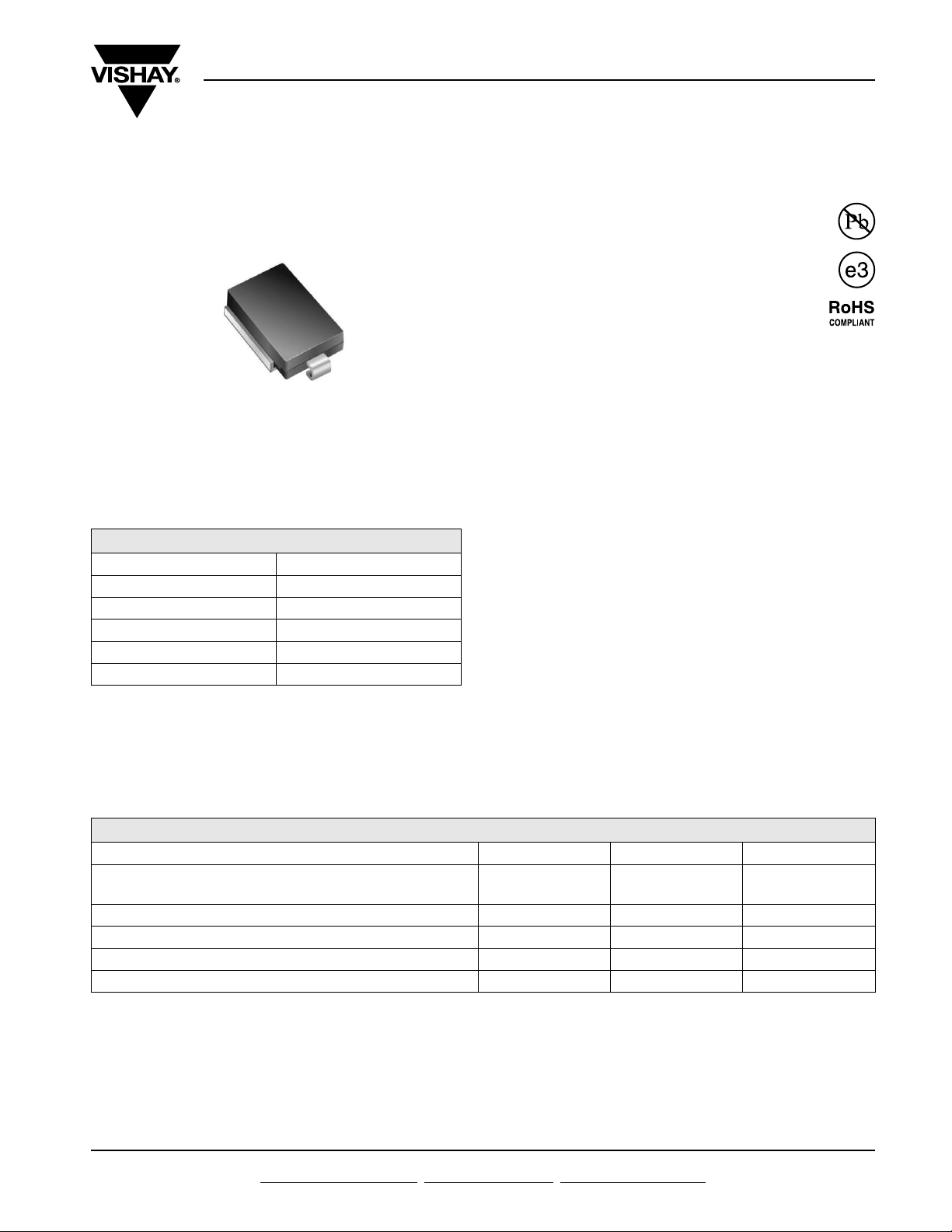

New Product
SM8S10 thru SM8S43A
Vishay General Semiconductor
Document Number: 88387
Revision: 21-Oct-08
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com
, PDD-Asia@vishay.com, PDD-Europe@vishay.com
www.vishay.com
1
Surface Mount Automotive Transient Voltage Suppressors
High Temperature Stability and High Reliability Conditions
FEATURES
• Patented PAR
®
construction
• Available in uni-directional polarity only
• Low leakage current
• Low forward voltage drop
• High surge capability
• Meets ISO7637-2 surge specification (varied by
test condition)
• Meets MSL level 1, per J-STD-020, LF maximum
peak of 245 °C
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
Use in sensitive electronics protection against
voltage transients induced by inductive load switching
and lighting, especially for automotive load dump
protection application.
MECHANICAL DATA
Case: DO-218AB
Molding compound meets UL 94 V-0 flammability
rating
Base P/NHE3 - RoHS compliant, high reliability/
automotive grade (AEC Q101 qualified)
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD22-B102
HE3 suffix meets JESD 201 class 2 whisker test
Polarity: Heatsink is anode
PRIMARY CHARACTERISTICS
V
WM
10 V to 43 V
P
PPM
(10 x 1000 µs) 6600 W
P
PPM
(10 x 10 000 µs) 5200 W
P
D
8 W
I
FSM
700 A
T
J
max. 175 °C
DO-218AB
*
Patent #'s:
4,980,315
5,166,769
5,278,095
Patented*
Note:
(1) Non-repetitive current pulse derated above T
A
= 25 °C
MAXIMUM RATINGS (T
C
= 25 °C unless otherwise noted)
PARAMETER SYMBOL VALUE UNIT
Peak pulse power dissipation
with 10/1000 µs waveform
with 10/10 000 µs waveform
P
PPM
6600
5200
W
Power dissipation on infinite heatsink at T
C
= 25 °C (Fig. 1) P
D
8.0 W
Peak pulse current with 10/1000 µs waveform
(1)
I
PPM
see next table A
Peak forward surge current 8.3 ms single half sine-wave I
FSM
700 A
Operating junction and storage temperature range T
J
, T
STG
- 55 to + 175 °C
