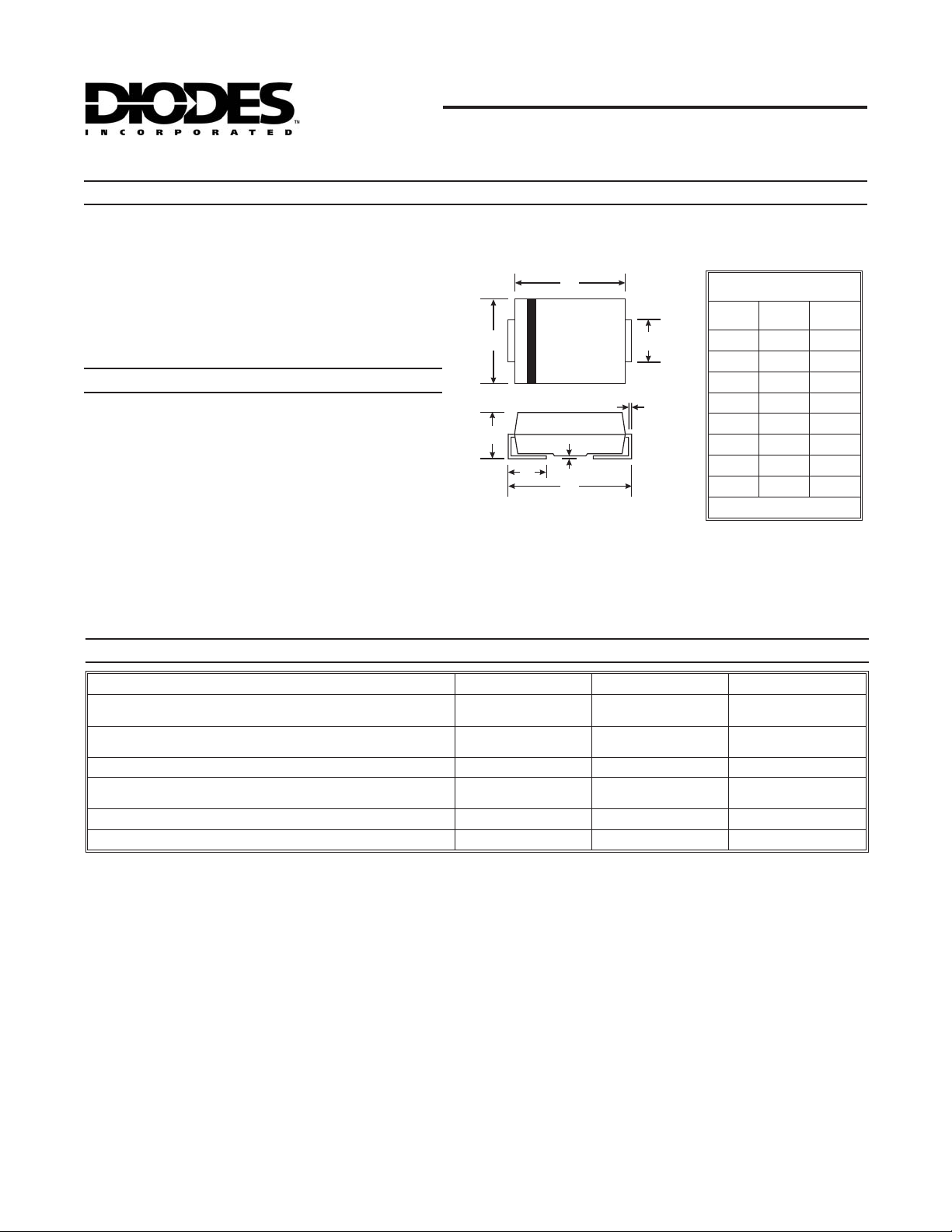

DS19005 Rev. 13 - 2 1 of 4 SMAJ5.0(C)A - SMAJ170(C)A
www.diodes.com
ã Diodes Incorporated
SMAJ5.0(C)A - SMAJ170(C)A
400W SURFACE MOUNT TRANSIENT VOLTAGE
SUPPRESSOR
A
B
C
D
G
H
E
J
SMA
Dim Min Max
A
2.29 2.92
B
4.00 4.60
C
1.27 1.63
D
0.15 0.31
E
4.80 5.59
G
0.10 0.20
H
0.76 1.52
J
2.01 2.30
All Dimensions in mm
Features
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Characteristic Symbol Value Unit
Peak Pulse Power Dissipation
(Non repetitive current pulse derated above T
A
=25°C) (Note 1)
P
PK
400 W
Peak Forward Surge Current, 8.3ms Single Half Sine Wave
Superimposed on Rated Load (JEDEC Method) (Notes 1, 2, & 3)
I
FSM
40 A
Steady State Power Dissipation @ T
L
= 75°C
PM
(AV)
1.0 W
Instantaneous Forward Voltage @ I
PP
= 35A
(Notes 1, 2, & 3)
V
F
3.5 V
Operating Temperature Range
T
j
-55 to +150 °C
Storage Temperature Range
T
STG
-55 to +175 °C
·
400W Peak Pulse Power Dissipation
·
Glass Passivated Die Construction
·
Uni- and Bi-Directional Versions Available
·
Excellent Clamping Capability
·
Fast Response Time
·
Lead Free Finish/RoHS Compliant (Note 4)
Mechanical Data
·
Case: SMA
·
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
·
Moisture Sensitivity: Level 1 per J-STD-020C
·
Terminals: Lead Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
·
Polarity Indicator: Cathode Band (Note: Bi-directional
devices have no polarity indicator.)
·
Marking: Date Code and Marking Code See Page 4
·
Weight: 0.064 grams (approximate)
Notes: 1. Valid provided that terminals are kept at ambient temperature.
2. Measured with 8.3ms single half sine-wave. Duty cycle = 4 pulses per minute maximum.
3. Unidirectional units only.
4. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see
EU Directive Annex Notes 5 and 7.
