www.element14.com
www.farnell.com
www.newark.com

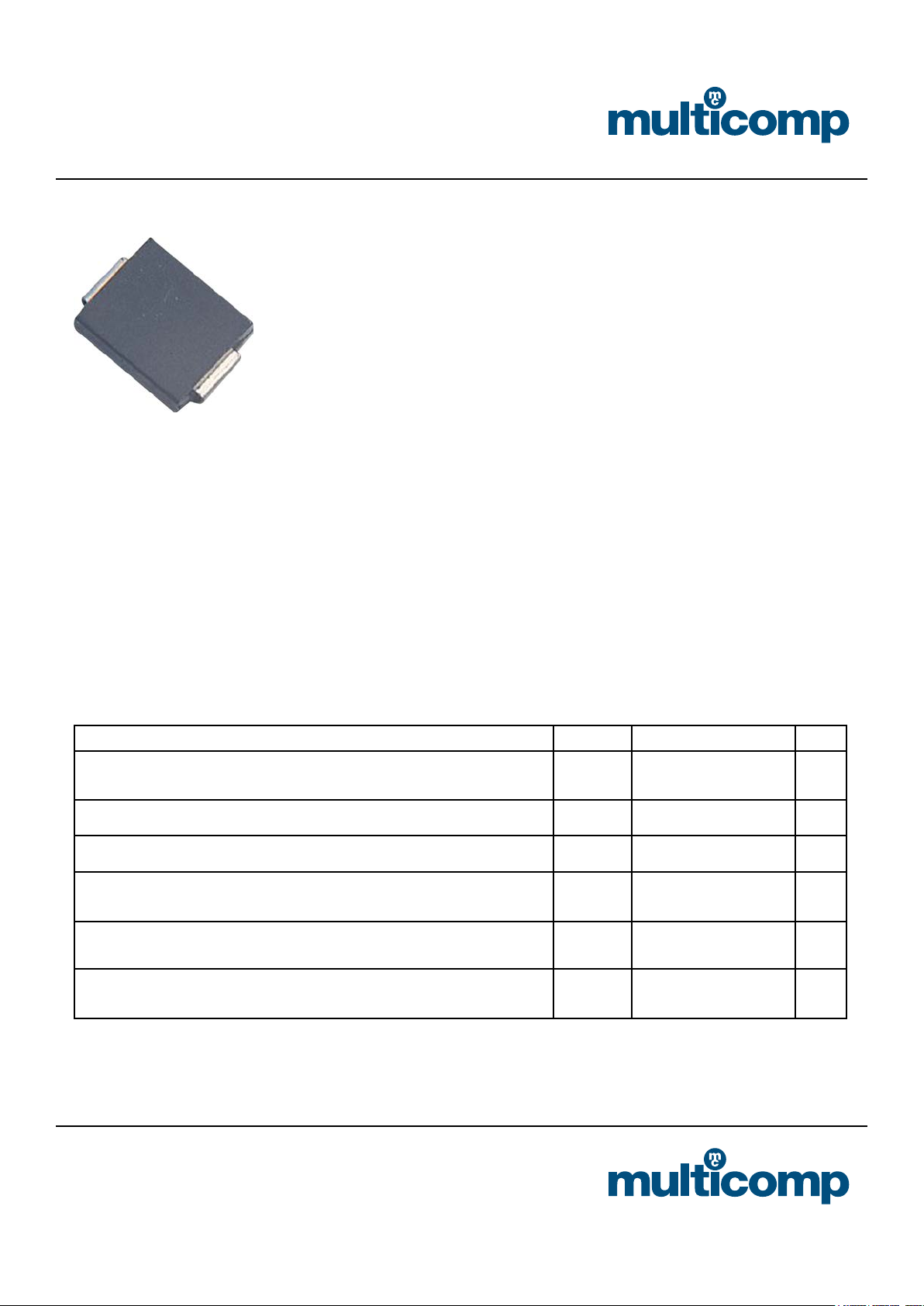

Page <1>
V1.025/02/13
Transient Voltage Suppressor
Features:
• Optimized for LAN Protection Applications
• Low Prole Package With Built-In Strain Relief For Surface Mounted Applications
• Low Incremental Surge Resistance, Excellent Clamping Capability
• 400W Peak Pulse Power Capability with a 10/1,000µs Wave Form,
Repetition Rate (duty cycle): 0.01% (300W above 78V)
• Very Fast Response Time
• High Temperature Soldering Guaranteed : 260°C/10 seconds at Terminals
Mechanical Data
• Case : JEDEC DO-214AC molded plastic over passivated chip
• Terminals : solder plated, solderable per MIL-STD-750, method 2026
• Polarity : forint-directional types the colour band denotes the cathode, which is positive with respect to the anode under
normal TVS operation
• Mounting position: any Weight : 0.002oz, 0.064g
Devices for Bidirectional Applications
For Bi-directional devices, use sufx C or CA (e.g. SMAJ10C, SMAJ10CA). Electrical characteristics apply in both directions.
Characteristic Symbol Value Unit
Peak power dissipation with a 10/1,000μs waveform
(Note 1,2, Fig.1)
P
PPM Min. 400 W
Peak pulse current with a 10/1,000μs waveform (Note 1) I
PPM See Next Table A
Typical thermal resistance, junction to ambient (Note 3) R
θJA 120 °C/W
Peak forward surge current, 8.3ms single half sine-wave uni-directional
only (Note 2)
I
FSM 40 A
Typical thermal resistance, junction to ambient (Note 3) R
θJL 30 °C/W
Operating junction and storage temperature range T
J, TSTG -55 to +150 °C
Maximum Ratings and Thermal Characteristics (TA=25°C unless otherwise noted)
Note:
(1) Non-repetitive current pules, per Fig. 3 and derate above T
A=25 per Fig. 2. Rating is 300W above 78V.
(2) Mounted on 0.2ʺ × 0.2ʺ (5mm × 5mm) copper pads to each terminal.
(3) Mounted on minimum recommended pad layout
