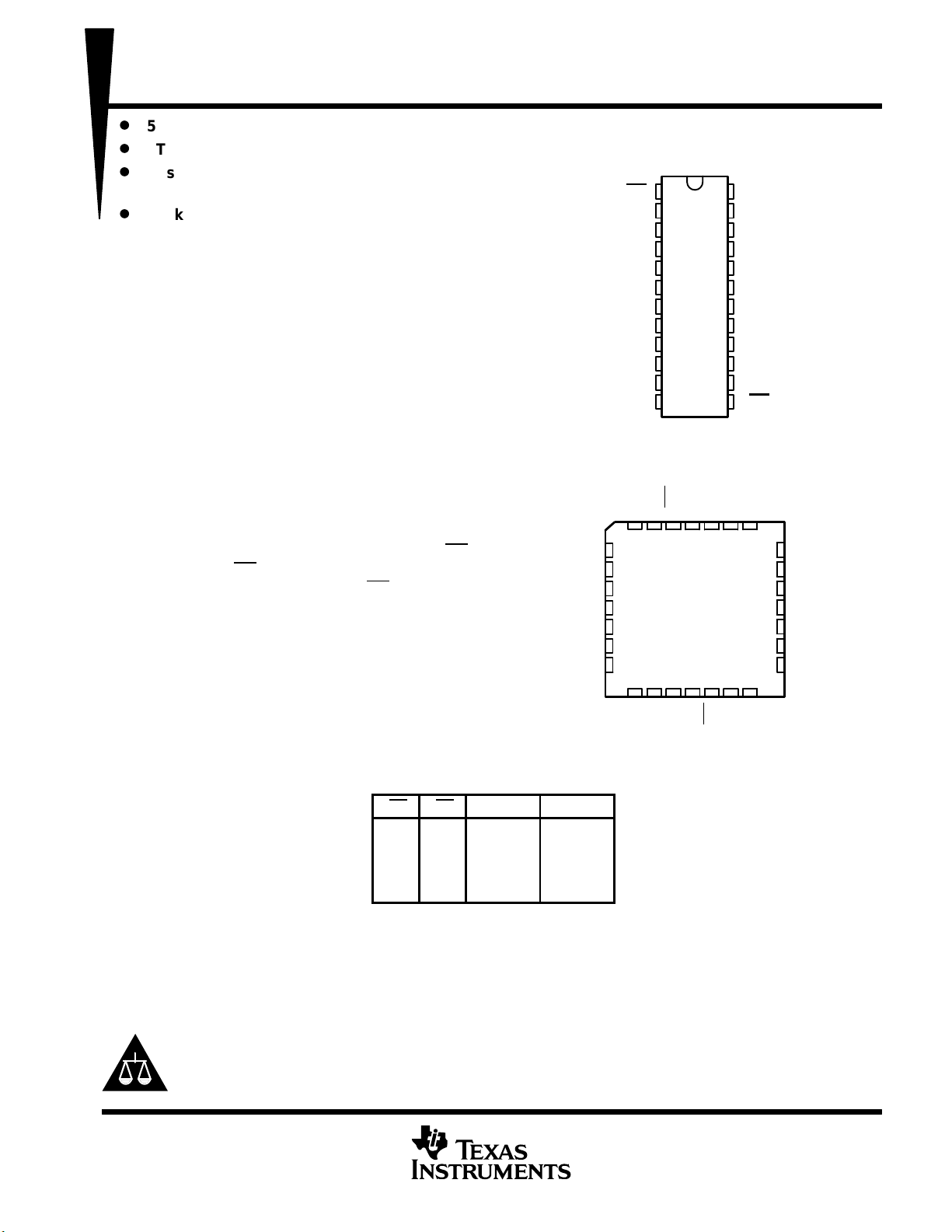

SN54CBTD3384, SN74CBTD3384
10-BIT BUS SWITCHES
WITH LEVEL SHIFTING
SCDS025H – MAY 1995 – REVISED MAY 1997
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
D
5-Ω Switch Connection Between Two Ports
D
TTL-Compatible Input and Output Levels
D
Designed to Be Used in Level-Shifting
Applications
D
Package Options Include Plastic
Small-Outline (DW), Shrink Small-Outline
(DB), Quarter-Size Small-Outline (DBQ),
and Thin Shrink Small-Outline (PW)
Packages, Ceramic Flat (W) Package,
Ceramic DIPs (JT), and Ceramic Chip
Carriers (FK)
description
The ’CBTD3384 provide ten bits of high-speed
TTL-compatible bus switching. The low on-state
resistance of the switches allows connections to
be made without adding propagation delay. A
diode to V
CC
is integrated on the die to allow for
level shifting between 5-V inputs and 3.3-V
outputs.
These devices are organized as two 5-bit
switches with separate output-enable (OE
)
inputs. When OE
is low, the switch is on and port
A is connected to port B. When OE
is high, the
switch is open and a high-impedance state exists
between the two ports.
The SN54CBTD3384 is characterized for
operation over the full military temperature range
from –55°C to 125°C. The SN74CBTD3384 is
characterized for operation from –40°C to 85°C.
FUNCTION TABLE
1OE
2OE 1B1–1B5 2B1–2B5
L L 1A1–1A5 2A1–2A5
L H 1A1–1A5 Z
H L Z 2A1–2A5
H H Z Z
Copyright 1997, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
SN54CBTD3384 . . . JT OR W PACKAGE
SN74CBTD3384 . . . DB, DBQ, DW, OR PW PACKAGE
(TOP VIEW)
1OE
1B1
1A1
1A2
1B2
1B3
1A3
1A4
1B4
1B5
1A5
GND
V
CC
2B5
2A5
2A4
2B4
2B3
2A3
2A2
2B2
2B1
2A1
2OE
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
SN54CBTD3384 . . . FK PACKAGE
(TOP VIEW)
321
13 14
5
6
7
8
9
10
11
2A4
2B4
2B3
NC
2A3
2A2
2B2
1A2
1B2
1B3
NC
1A3
1A4
1B4
4
15 16 17 18
1A5
GND
NC
2OE
2A1
2B1
1A1
1B1
1OE
NC
28 27 26
12
1B5
2B5
2A5
25
24
23
22
21
20
19
V
CC
NC – No internal connection
