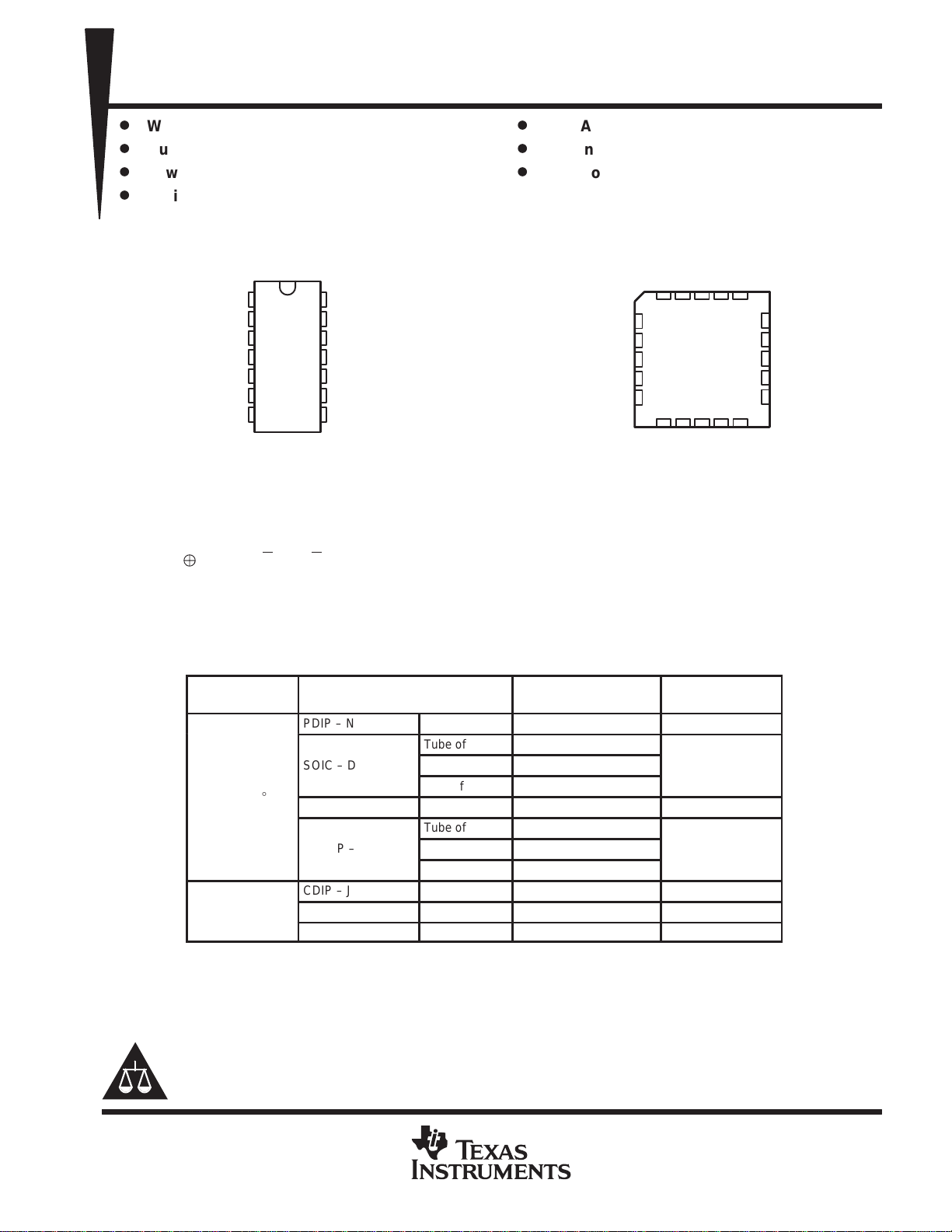

SN54HC86, SN74HC86
QUADRUPLE 2-INPUT EXCLUSIVE-OR GATES
SCLS100E – DECEMBER 1982 – REVISED AUGUST 2003
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
D
Wide Operating Voltage Range of 2 V to 6 V
D
Outputs Can Drive Up To 10 LSTTL Loads
D
Low Power Consumption, 20-µA Max I
CC
D
Typical t
pd
= 10 ns
D
±4-mA Output Drive at 5 V
D
Low Input Current of 1 µA Max
D
True Logic
1
2
3
4
5
6
7
14
13
12
11
10
9
8
1A
1B
1Y
2A
2B
2Y
GND
V
CC
4B
4A
4Y
3B
3A
3Y
SN54HC86 ...J OR W PACKAGE
SN74HC86 . . . D, N, NS, OR PW PACKAGE
(TOP VIEW)
3212019
910111213
4
5
6
7
8
18
17
16
15
14
4A
NC
4Y
NC
3B
1Y
NC
2A
NC
2B
1B
1A
NC
3Y
3A
V
4B
2Y
GND
NC
SN54HC86 . . . FK PACKAGE
(TOP VIEW)
CC
NC – No internal connection
description/ordering information
These devices contain four independent 2-input exclusive-OR gates. They perform the Boolean function
Y = A
ę
B or Y = A
B + AB in positive logic.
A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced
in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the
output.
ORDERING INFORMATION
T
A
PACKAGE
†
ORDERABLE
PART NUMBER
TOP-SIDE
MARKING
–40 C to 85 C
PDIP – N Tube of 25 SN74HC86N SN74HC86N
–40 C to 85 C
SOIC – D
Tube of 50 SN74HC86D
HC86
–40 C to 85 C
SOIC – D
Reel of 2500 SN74HC86DR
HC86
–40°C to 85°C
Reel of 250 SN74HC86DT
–40°C to 85°C
SOP – NS Reel of 2000 SN74HC86NSR HC86
TSSOP – PW
Tube of 90 SN74HC86PW
HC86
TSSOP – PW
Reel of 2000 SN74HC86PWR
HC86
Reel of 250 SN74HC86PWT
–55 C to 125 C
CDIP – J Tube of 25 SNJ54HC86J SNJ54HC86J
–55
°
C to 125
°
C
CFP – W Tube of 150 SNJ54HC86W SNJ54HC86W
LCCC – FK Tube of 55 SNJ54HC86FK SNJ54HC86FK
†
Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are
available at www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications o
f
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright 2003, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
On products compliant to MIL-PRF-38535, all parameters are tested
unless otherwise noted. On all other products, production
processing does not necessarily include testing of all parameters.
