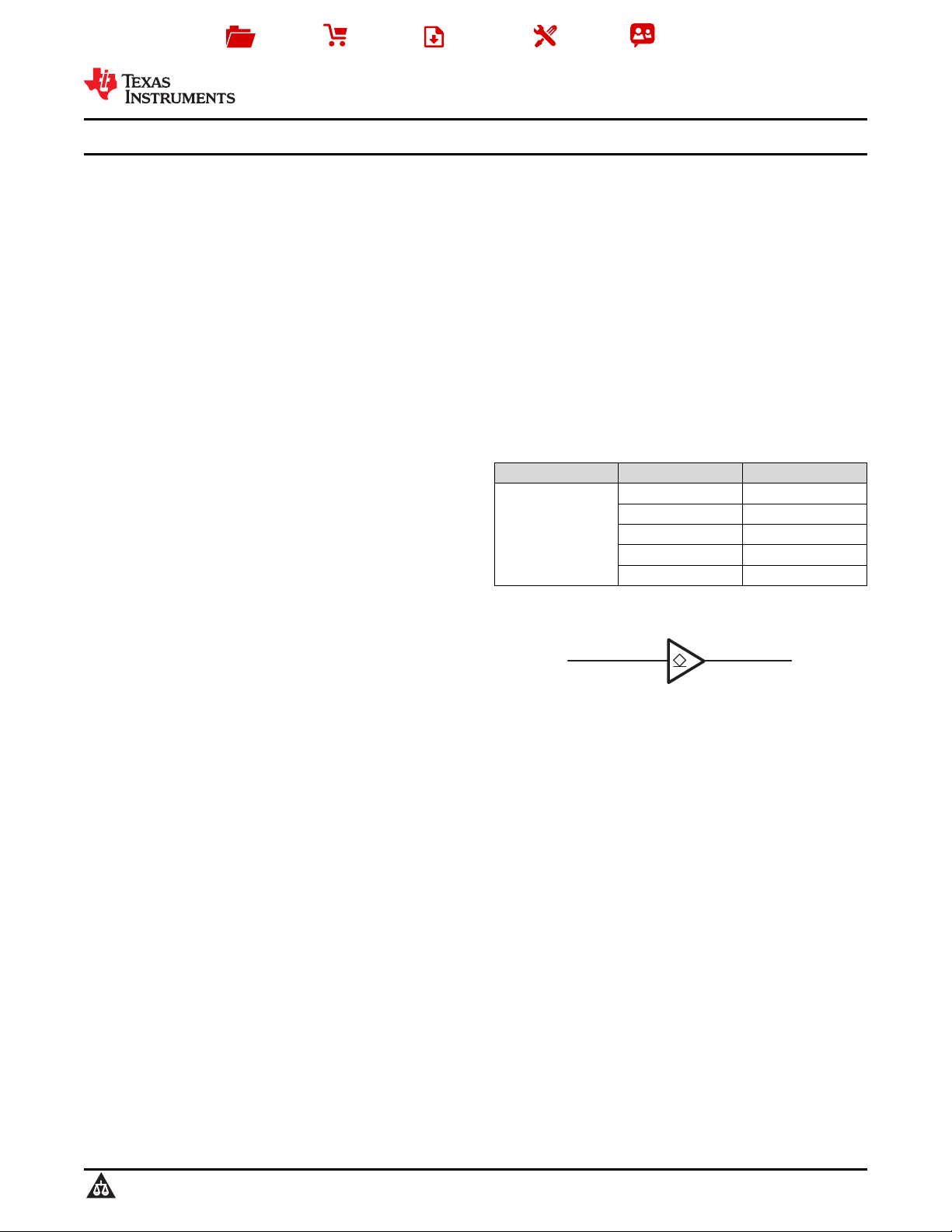

SN74LVC1G07
SCES296AC –FEBRUARY 2000–REVISED APRIL 2014
SN74LVC1G07 Single Buffer/Driver With Open-Drain Output
1 Features 3 Description
This single buffer/driver is designed for 1.65-V to
1
• Available in the Ultra Small 0.64-mm
2
5.5-V V
CC
operation.
Package (DPW) With 0.5-mm Pitch
The output of the SN74LVC1G07 device is open
• Supports 5-V V
CC
Operation
drain and can be connected to other open-drain
• Input and Open-Drain Output Accept
outputs to implement active-low wired-OR or active-
Voltages up to 5.5 V
high wired-AND functions. The maximum sink current
• Can Translate Up or Down
is 32 mA.
• Max t
pd
of 4.2 ns at 3.3 V
The SN74LVC1G07 is available in a variety of
• Low Power Consumption, 10-µA Max I
CC
packages, including the ultra-small DPW package
with a body size of 0.8 mm × 0.8 mm.
• ±24-mA Output Drive at 3.3 V
• I
off
Supports Live Insertion, Partial-Power-Down
white space
Mode, and Back-Drive Protection
white space
• Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
Device Information
(1)
• ESD Protection Exceeds JESD 22
DEVICE NAME PACKAGE BODY SIZE
SOT-23 (5) 2.9mm × 1.6mm
– 2000-V Human-Body Model (A114-A)
SC70 (5) 2.0mm × 1.25mm
– 200-V Machine Model (A115-A)
SN74LVC1G07 X2SON (4) 0.8mm × 0.8mm
– 1000-V Charged-Device Model (C101)
SON (6) 1.45mm × 1.0mm
SON (6) 1.0mm × 1.0mm
2 Applications
(1) For all available packages, see the orderable addendum at
• AV Receiver
the end of the datasheet.
• Blu-ray Player and Home Theater
• DVD Recorder and Player
• Desktop or Notebook PC
• Digital Radio or Internet Radio Player
• Digital Video Camera (DVC)
• Embedded PC
• GPS: Personal Navigation Device
• Mobile Internet Device
• Network Projector Front End
• Portable Media Player
• Pro Audio Mixer
• Smoke Detector
• Solid State Drive (SSD): Enterprise
• High-Definition (HDTV)
• Tablet: Enterprise
• Audio Dock: Portable
• DLP Front Projection System
• DVR and DVS
• Digital Picture Frame (DPF)
• Digital Still Camera
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
