For further information contact your local STMicroelectronics sales office.
September 2013 Doc ID 023384 Rev 2 1/6
1

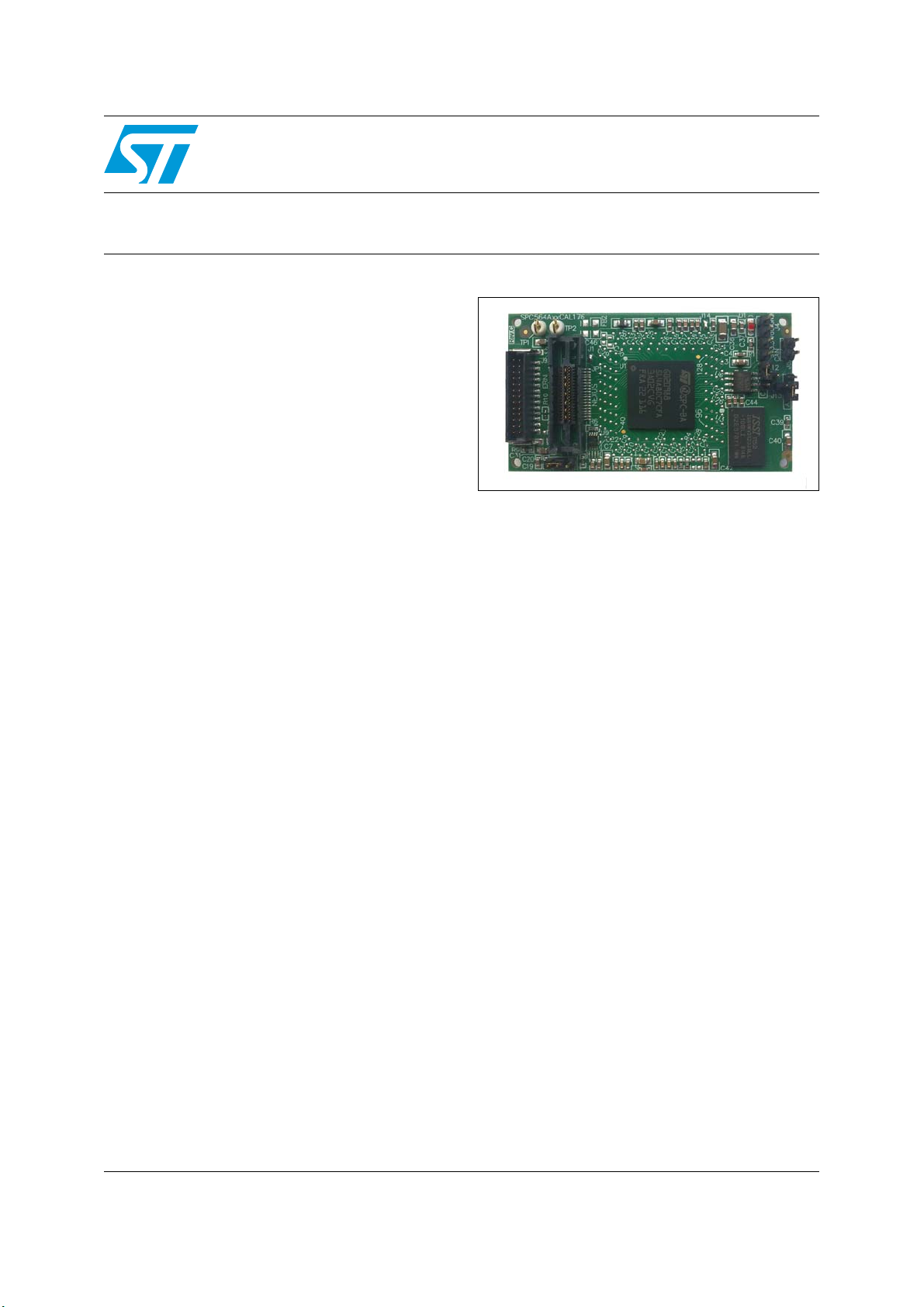

SPC564A80CAL176
SPC564A70CAL176
SPC564Axx microcontroller family calibration and emulation
system
Data brief
Features
■
Support for LQFP176 MCU production
package allowing calibration systems to be
built without requiring modifications to the
standard production system housing
■
2 MB static RAM organized as 512 K words by
32 bits
■
32-bit multiplexed Calibration bus
configuration;
■
Support for Nexus-based debug tools even if
application PCB does not include Nexus
connector
■
Nexus functionality with 12 Message Data Out
(MDO) signals
■
Support for full-feature calibration tools via
availability of comprehensive set of device
signals available on the connectors.
■
ERNI 154819 connector optimized for
calibration
■
High speed CAN transceiver with signals
protection
■
Specifications:
■
Board size 36 x 64.5 mm
■
Target connector compatible with
TQPACK176SD
Description
The SPC564A70CALxx and SPC564A80CALxx
is a calibration and emulation system supporting
the STMicroelectronics
®
SPC564AXX family of
automotive microprocessors.
The Calibration Adapter is designed to substitute
the QFP device on an ECU version used during
engine calibration.
The complete system consists of a
SPC564A70CAL176 board or a
SPC564A80CAL176 and a POLYPOD-TQ176
Poly-Pod which plugs directly into the
motherboard.
The Calibration Adapter can also be used as
emulation board as the Nexus trace port on
CSP496 allows using the pins for application
purpose.
www.st.com
