1 of 8

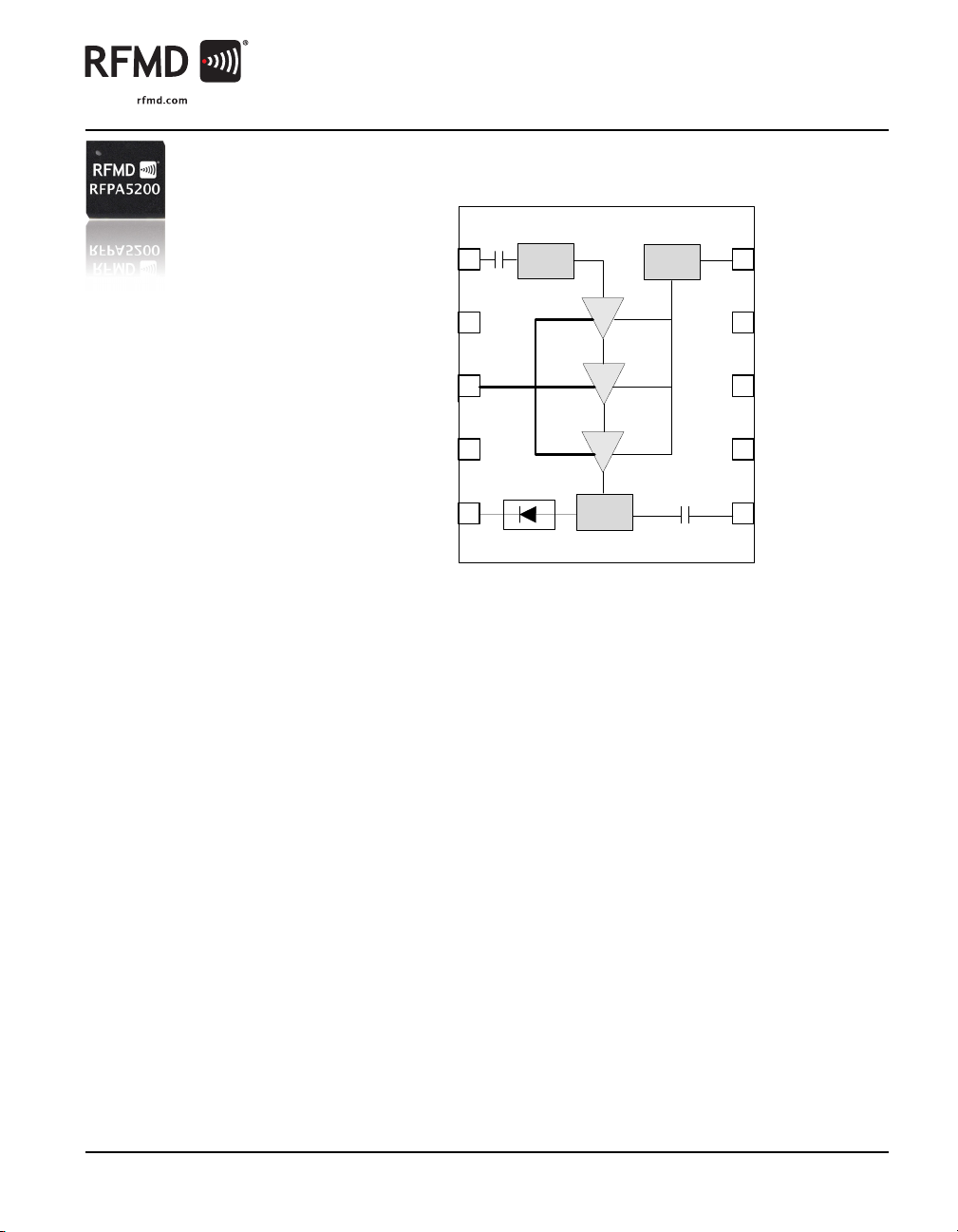

Functional Block Diagram
RF MICRO DEVICES®, RFMD®, Optimum Technology Matching®, Enabling Wireless Connectivity™, PowerStar®, POLARIS™ TOTAL RADIO™ and UltimateBlue™ are trademarks of RFMD, LLC. BLUETOOTH is a trade-
mark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and registered trademarks are the property of their respective owners. ©2012, RF Micro Devices, Inc.
Product Description
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
Ordering Information
RFOUT
PA_EN
Vreg
NC/
GND
Pdet
VCC
3
1
10
2
9
8
7
4
GND
RFIN
GND
GND
5 6
Input
Match
Output
Match
Bias
Circuit
RFPA5200
3.3V to 5.0V, 2.4GHz to 2.5GHz
Integrated PA Module
RFPA5200 is a three-stage power amplifier (PA) designed for 802.11b/g/n
applications. The integrated input and output 50Ω match eliminates the
need for any external matching components and greatly reduces layout
area, bill of materials (BOM) and manufacturability cost in the customer
application. The RFPA5200 is manufactured on an advanced InGaP het-
erojunction bipolar transistor (HBT) process. This PA is capable of achiev-
ing linear power up to 27dBm with an EVM < 3% while maintaining
excellent power added efficiency (PAE). The device is provided in a 4mm x
4mm x 1mm, 10-pin laminate package and it meets or exceeds the power
requirements of IEEE802.11b/g/n WiFi RF systems.
Features
P
OUT
= 27dBm, 5V < 3%
Dynamic EVM
33dB Typical Gain
High PAE
Integrated Input and Output
50Ω Match
Integrated Power Detector
Integrated Harmonic Filtering
Applications
WiFi 802.11 b/g/n
Applications
Consumer Premise
Equipment (CPE)
Picocell; Femtocell
Data Cards and Terminals
Wireless Access Points,
Gateways, Routers and Set
Top Box Applications
RFPA5200SB 5-Piece bag
RFPA5200SR 100-Piece reel
RFPA5200TR7 2500-Piece reel
RFPA5200SQ 25-Piece bag
RFPA5200PCK-410 RFPA5200 Eval board with 5-piece bag
RFPA5200PCK-411 RFPA5200 Balanced eval board with 5-piece bag
DS130606
Preliminary
Package: Laminate, 4mm x 4 mm x 1 mm
