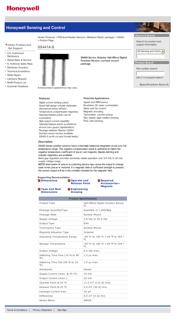

SS441A-S
SS400 Series Unipolar Hall-
Effect Digital
Position Sensor; surface mount
package
Actual product appearance may vary.
Features
l
Digital current sinking output
l
Quad-Hall design virtually eliminates
mechanical stress effects
l
Temperature compensated magnetics
l
Operate/release points can be
customized
l
High output current capability
l
Operate/release points symmetrical
around zero gauss (bipolar/latch)
l
Package material: Plaskon 3300H
l
Surface mount version available:
SS400-S (w ith cut and formed leads)
Potential Applications
l
Speed and RPM sensor
l
Brushless DC motor commutation
l
Motor and fan control
l
Magnetic encoding
l
Tachometer, counter pickup
l
Disc speed, tape rotation sensing
l
Flow -rate sensing
Description
SS400 Series position sensors have a thermally balanced integrated circuit over full
temperature range. The negative compensation slope is optimized to match the
negative temperature coefficient of low er cost magnets. Bipolar,latching and
unipolar magnetics are available.
Band gap regulation provides extremely stable operation over 3.8 Vdc to 30 Vdc
supply voltage range.
NOTE: Interruption of pow er to a latching device may cause the output to change
state w hen pow er is restored. If a magnetic field of sufficient strength is present,
the sensor output w ill be in the condition dictated by the magnetic field.
Supporting Docum entation
Dimensions Operate and
Release Point
Required
Accessories—
Magnets
Tape and Reel
Dimensions
Engineering
Drawing
Product Specifications
Product Type Hall-Effe ct Digita l Position Sensor
IC
Pa ckage Quantity/Type Ava ilable in 1,000/Ba g
Pa ckage Style Surface Mo unt
Supply Volta ge 3.8 Vdc to 30.0 Vdc
Output Type Sink
Termination Type Surface Mo unt
Ma gnetic Actuation Type Unipolar
Ope rating Tem perature Range -40 °C to 150 °C [-40 °F to 302 °
F]
Storage Te m perature -65 °C to 160 °C [-85 °F to 320 °
F]
Output Voltage 0.4 Vdc m ax .
Switching Tim e Rise (10 % to 90
%)
1.5 µs max .
Switching Tim e Fall (90 % to 10
%)
1.5 µs max .
Ava ilability Global
Supply Curre nt (m ax. @ 25 °C) 10 m A
Output Curre nt (m ax.) 20 m A
Ope rate Point @ 25 °C 11.5 m T [115 G] m a x .
Release Point @ 25 °C 2.0 m T [20 G] m in.
Leak age Curre nt m ax . 10 µA
Diffe rential 0.5 m T [5 G] m in.
Se rie s Nam e SS400
