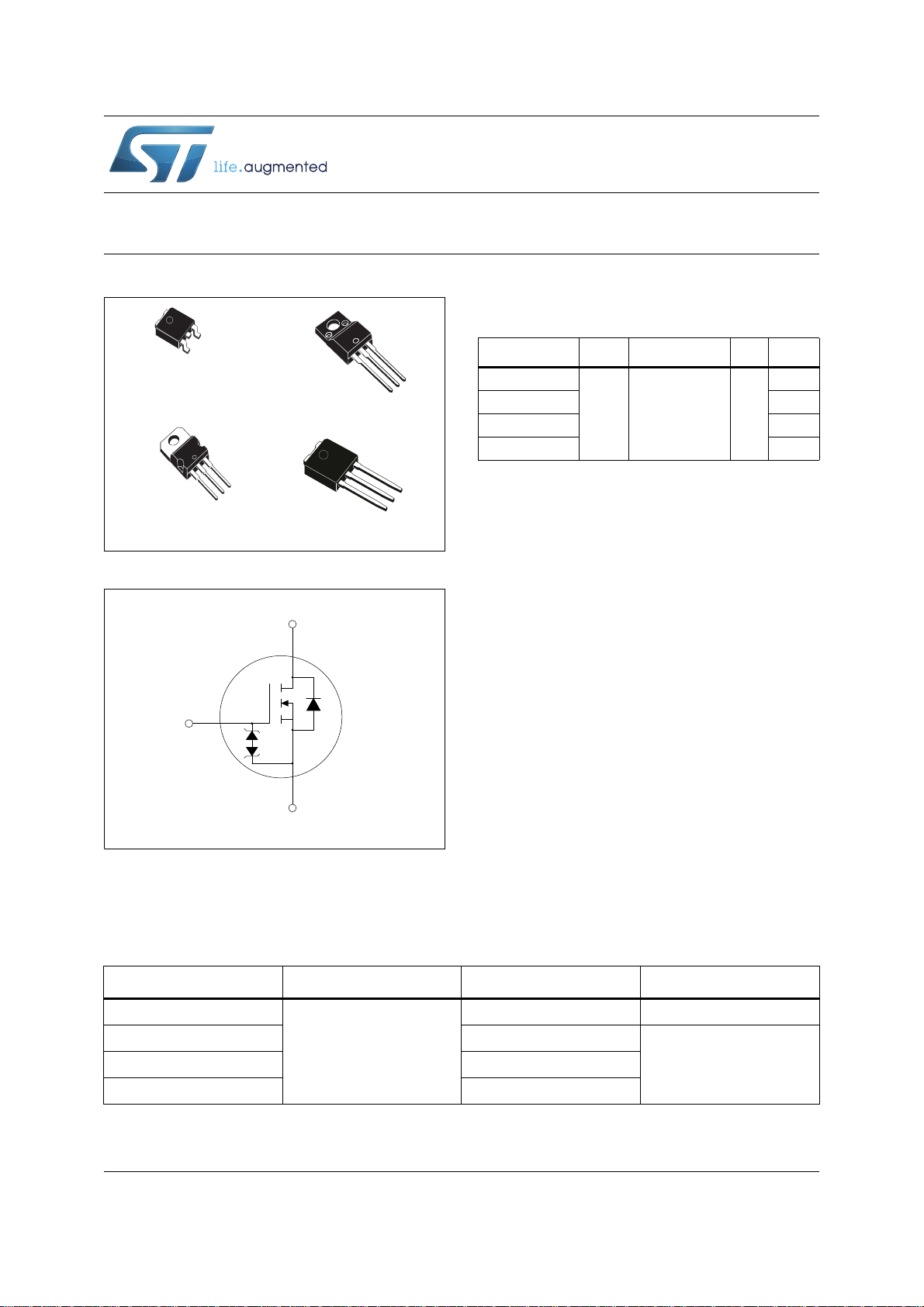

This is information on a product in full production.
May 2013 DocID15696 Rev 3 1/23
23
STD5N95K3, STF5N95K3, STP5N95K3,
STU5N95K3
N-channel 950 V, 3 Ω typ., 4 A Zener-protected SuperMESH3™
Power MOSFET in DPAK, TO-220FP, TO-220 and IPAK packages
Datasheet
−
production data
Figure 1. Internal schematic diagram
Features
• 100% avalanche tested
• Extremely large avalanche performance
• Gate charge minimized
• Very low intrinsic capacitances
• Zener-protected
Applications
• Switching applications
Description
These SuperMESH3™ Power MOSFETs are the
result of improvements applied to
STMicroelectronics’ SuperMESH™ technology,
combined with a new optimized vertical structure.
These devices boast an extremely low on-
resistance, superior dynamic performance and
high avalanche capability, rendering them suitable
for the most demanding applications.
D(2, TAB)
G(1)
S(3)
AM01476v1
1
2
3
TA B
TO-220
TO-220FP
3
2
1
TA B
DPAK
1
3
TA B
1
2
3
Order codes V
DS
R
DS(on)
max I
D
P
TOT
STD5N95K3
950 V 3.5 Ω 4 A
90 W
STF5N95K3 25 W
STP5N95K3 90 W
STU5N95K3 90 W
Table 1. Device summary
Order codes Marking Package Packaging
STD5N95K3
5N95K3
DPAK Tape and reel
STF5N95K3 TO-220FP
TubeSTP5N95K3 TO-220
STU5N95K3 IPAK
www.st.com
