STM3210B-EVAL 产品描述及参数 - ST Microelectronics（意法半导体）
制造商:
ST Microelectronics（意法半导体）
分类:
开发板
封装:
Board
描述:
STM32F10xxx评估板,5V电源,用户/测试FLASH/SRAM启动,音频播放和录制,64MMicroSD,TYPE A/B SmartCard ,8M串行FLASH,双232,IIC/SMBus,IrDA,CAN2.0A/B,USB2.0,240X320 TFT 彩色LCD,JTAG.(不包括调试工具)
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
应用领域在P3
导航目录
STM3210B-EVAL数据手册
Page:
of 3 Go
若手册格式错乱，请下载阅览PDF原文件

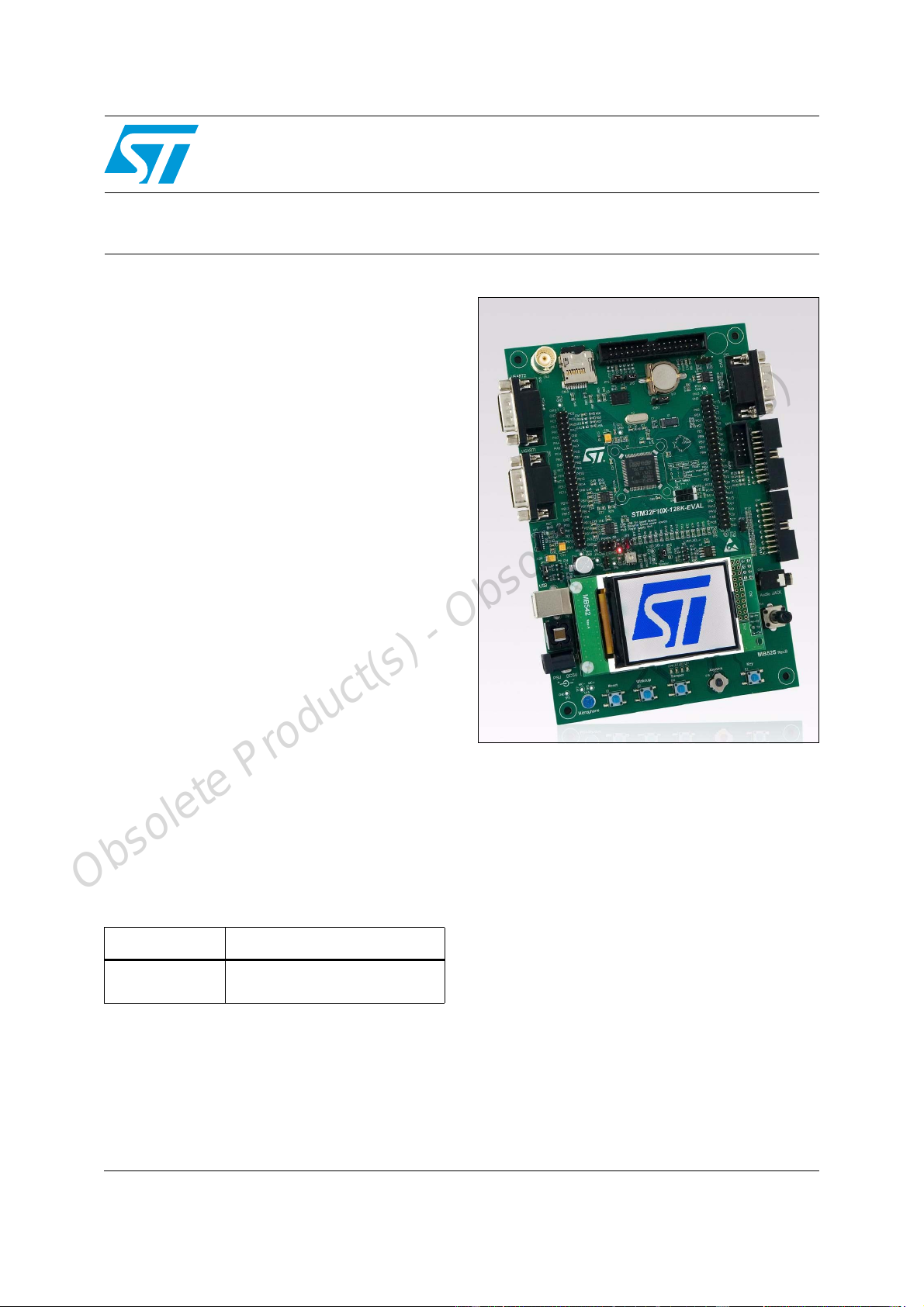

Data brief
For further information contact your local STMicroelectronics sales office.
August 2010 Doc ID 17805 Rev 1 1/3
3
STM3210B-EVAL
STM3210B-EVAL evaluation board
Features
■ Three 5 V power supply options: power jack,
USB connector or daughterboard
■ Boot from user Flash, test Flash or SRAM
■ Audio play and record
■ 1 Gbyte microSD Card™
■ Type A and Type B smartcard support
■ 8 Mbyte serial Flash
■ I2C/SMBus compatible serial interface
temperature sensor
■ Two RS-232 communication channels with
support for RTS/CTS handshake on one
channel
■ IrDA transceiver
■ USB 2.0 full speed connection
■ CAN 2.0A/B compliant connection
■ Induction motor control connector
■ JTAG, SWD and trace tool support
■ 240x320 TFT color LCD
■ Joystick with 4-direction control and selector
■ Reset, wakeup, tamper and user push buttons
■ Four LEDs
■ RTC with backup battery
■ Extension connector for daughterboard or
wrapping board
Description
The STM3210B-EVAL evaluation board is
designed as a complete development
environment for STMicroelectronic’s ARM
TM
Cortex-M3 core-based STM32F10x 128 Kbyte
microcontrollers.
With a complete range of hardware evaluation
features, the STM3210B-EVAL board is designed
to help developers evaluate all device peripherals
(such as USB, motor control, CAN, MicroSD
Card™, smartcard, USART) and develop their
own applications.
Extension connectors make it possible to easily
connect a daughterboard or wrapping board for a
specific application.
Table 1. Device summary
Order code Reference
STM3210B-EVAL
STM32F10x 128 Kbyte evaluation
board
www.st.com
Obsolete Product(s) - Obsolete Product(s)
