For further information contact your local STMicroelectronics sales office.
February 2016 DocID025209 Rev 3 1/4
32F401CDISCOVERY
Discovery kit with STM32F401VC MCU
Data brief
Features
• STM32F401VCT6 microcontroller featuring
256 Kbytes of Flash memory, 64 Kbytes of
RAM in an LQFP100 package
• On-board ST-LINK/V2 with selection mode
switch to use the kit as a standalone
ST-LINK/V2 (with SWD connector for
programming and debugging)
• Board power supply: through USB bus or from
an external 5 V supply voltage
• External application power supply: 3 V and 5 V
• L3GD20: ST MEMS motion sensor 3-axis
digital output gyroscope
• LSM303DLHC: ST MEMS system-in-package
featuring a 3D digital linear acceleration sensor
and a 3D digital magnetic sensor
• MP45DT02: ST MEMS audio sensor,
omnidirectional digital microphone
• CS43L22, audio DAC with integrated class D
speaker driver
• Eight LEDs:
– LD1 (red/green) for USB communication
– LD2 (red) for 3.3 V power on
– Four user LEDs:
LD3 (orange), LD4 (green), LD5 (red) and
LD6 (blue)
– Two USB OTG LEDs:
LD7 (green) V
BUS
and LD8 (red) over-
current
• Two pushbuttons (user and reset)
• USB OTG with micro-AB connector
• Extension header for LQFP100 I/Os for a quick
connection to the prototyping board and an
easy probing
• Comprehensive free software including a
variety of examples, part of STM32CubeF4
package or STSW-STM32136 for legacy
Standard Libraries usage

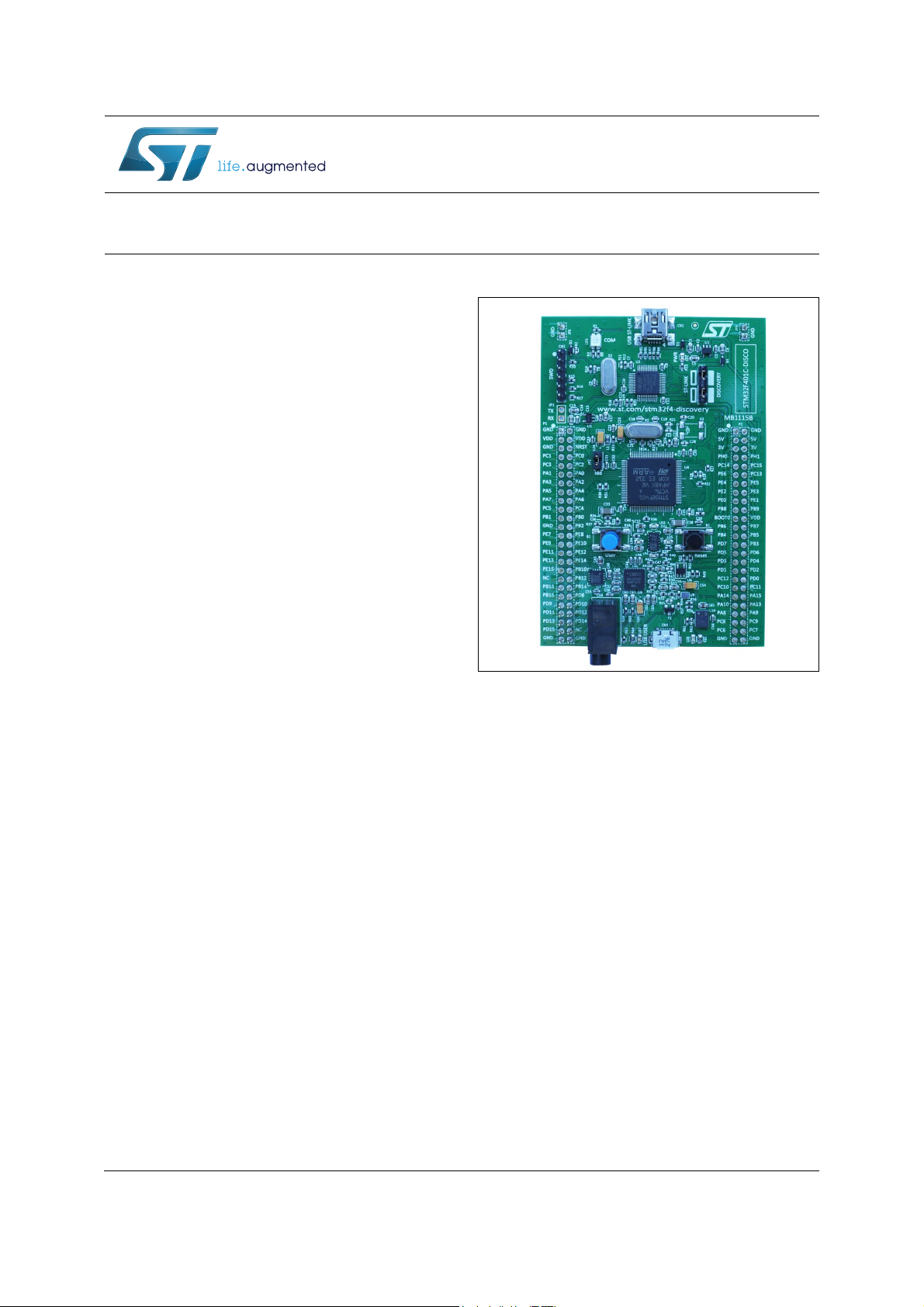

1. Picture not contractual.
Description
The 32F401CDISCOVERY Discovery kit allows
users to easily develop applications with the
STM32F401 high performance MCUs with ARM
®
Cortex
®
-M4 32-bit core. It offers everything
required either for beginners or experienced
users, to get quickly started.
Based on the STM32F401VCT6, it includes an
ST-LINK/V2 embedded debug tool, a gyroscope,
an e-compass and digital microphone ST MEMs,
an audio DAC with an integrated class D speaker
driver, a USB OTG micro-AB connector, LEDs
and pushbuttons.
www.st.com
