STM32F401RDT6 产品描述及参数 - ST Microelectronics（意法半导体）
制造商:
ST Microelectronics（意法半导体）
分类:
32位控制器
封装:
LQFP-64
描述:
STMICROELECTRONICS STM32F401RDT6 微控制器, 32位, 动态效率线, ARM 皮质-M4, 84 MHz, 384 KB, 96 KB, 64 引脚, LQFP
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
STM32F401RDT6数据手册
Page:
of 3 Go
若手册格式错乱，请下载阅览PDF原文件
For further information contact your local STMicroelectronics sales office.
October 2014 DocID025209 Rev 2 1/3

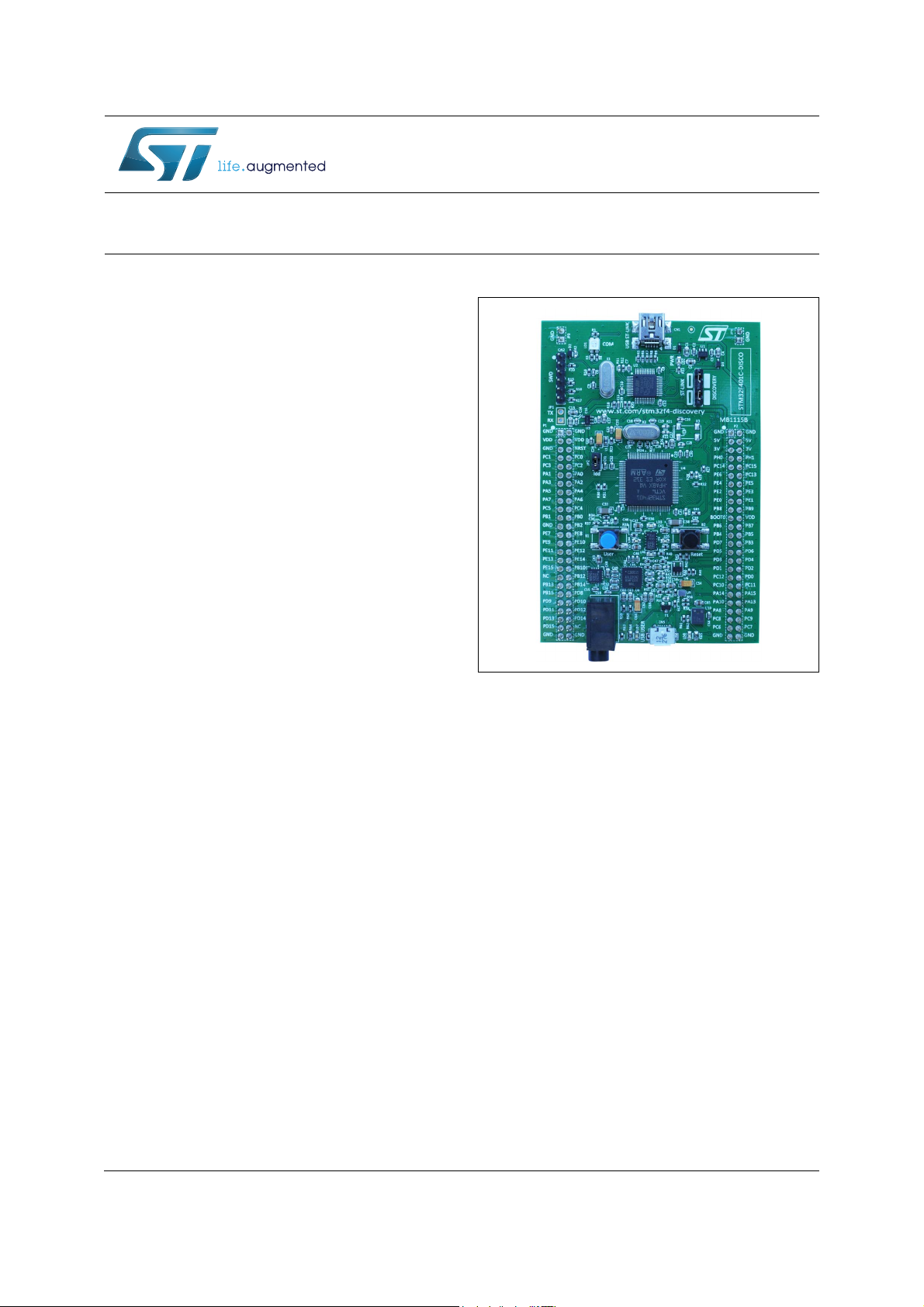

32F401CDISCOVERY
Discovery kit for STM32F401 line
Data brief
Features
• STM32F401VCT6 microcontroller featuring
256 KB of Flash memory, 64 KB of RAM in an
LQFP100 package
• On-board ST-LINK/V2 with selection mode
switch to use the kit as a standalone ST-
LINK/V2 (with SWD connector for
programming and debugging)
• Board power supply: through USB bus or from
an external 5 V supply voltage
• External application power supply: 3 V and 5 V
• L3GD20: ST MEMS motion sensor 3-axis
digital output gyroscope.
• LSM303DLHC: ST MEMS system-in-package
featuring a 3D digital linear acceleration sensor
and a 3D digital magnetic sensor.
• MP45DT02: ST MEMS audio sensor,
omnidirectional digital microphone
• CS43L22, audio DAC with integrated class D
speaker driver
• Eight LEDs:
– LD1 (red/green) for USB communication
– LD2 (red) for 3.3 V power on
– Four user LEDs:
LD3 (orange), LD4 (green), LD5 (red) and
LD6 (blue)
– Two USB OTG LEDs:
LD7 (green) VBus and LD8 (red) over-
current
• Two push-buttons (user and reset)
• USB OTG with micro-AB connector
• Extension header for LQFP100 I/Os for a quick
connection to the prototyping board and an
easy probing
• Comprehensive free software including a
variety of examples, part of STM32CubeF4
package or STSW-STM32136 for legacy
Standard Libraries usage
Description
The STM32F401 Discovery helps you to discover
the entry level microcontrollers of the STM32 F4
series and to develop your applications easily. It
offers everything required for beginners and
experienced users to get started quickly.
Based on the STM32F401VCT6, it includes an
ST-LINK/V2 embedded debug tool, a gyroscope,
an e-compass and digital microphone ST MEMs,
an audio DAC with an integrated class D speaker
driver, an OTG micro-AB connector, LEDs and
push-buttons.
www.st.com
