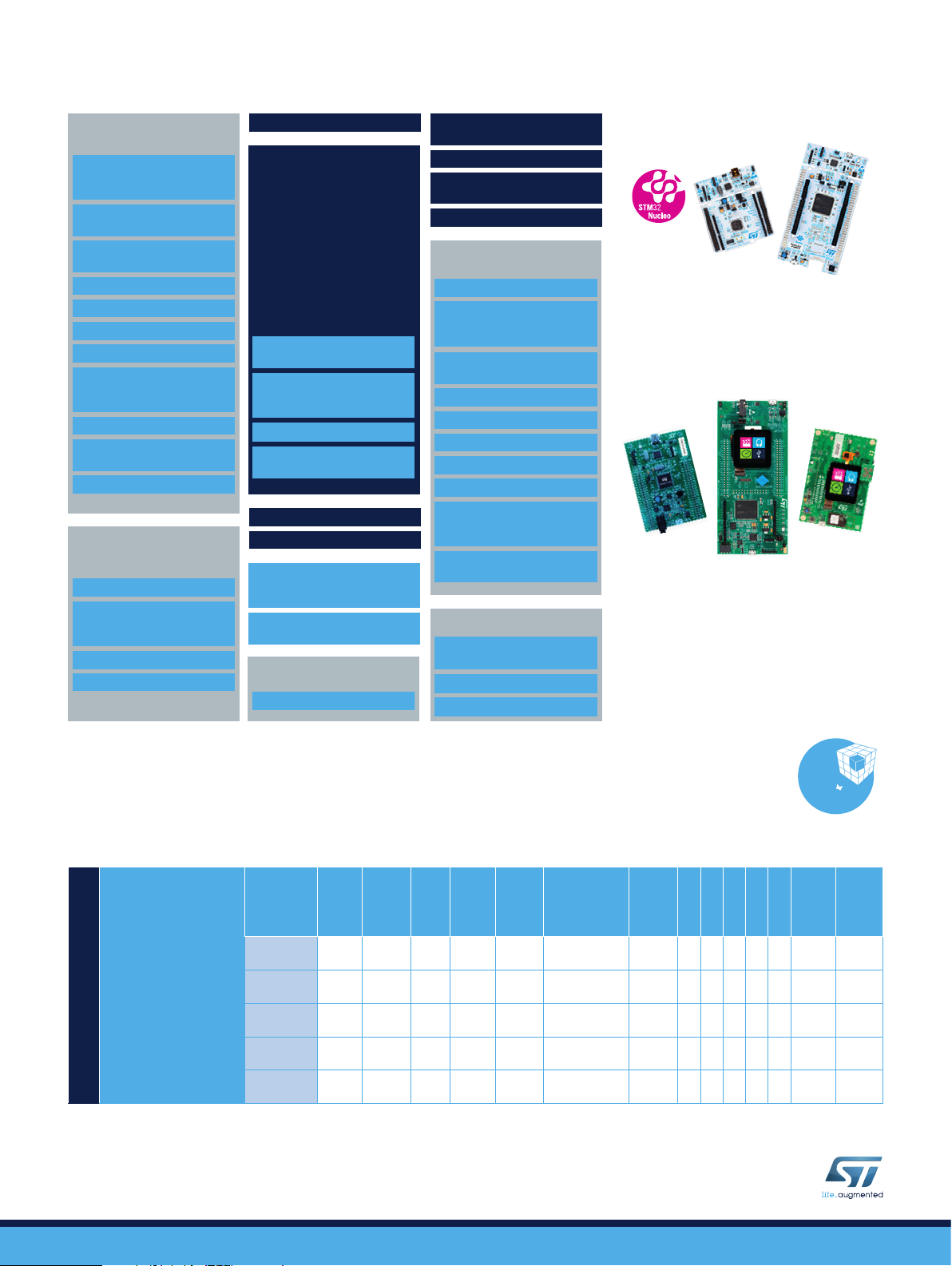

STM32F423 BLOCK DIAGRAM
STM32F423xH
ART Accelerator
TM
AHB-Lite bus matrix
APB bus
True random number
generator (TRNG)
16-channel DMA with
Enhanced Batch
Acquisition Mode (BAM+)
ARM
®
Cortex
®
-M4 CPU
100 MHz
JTAG/SW debug/ETM
Memory Protection Unit
(MPU)
Floating point unit
(FPU)
Nested vector
interrupt
controller (NVIC)
System
Up to 114 I/Os
96-bit unique ID
RTC/AWU
Power supply
1.2 V regulator
POR/PDR/PVD/BOR
Internal RC oscillators
32 kHz + 16 MHz
Clock control
PLL
2x watchdogs
(independent and
window)
Cyclic redundancy
check (CRC)
Xtal oscillators
32 kHz + 4 ~26 MHz
SysTick timer
Control
10x 16-bit timer
2x 32-bit timer
1x LP timer
2x 16-bit motor control
PWM synchronized
AC timer
Up to 1.5-Mbyte Flash
memory
80-byte backup
registers
512-byte OTP
320-Kbyte SRAM
AES (128-/256-bit)
Encryption
Analog
1x 12-bit ADC 2.4 MSPS
12 channels / 0.41 µs
Temperature sensor
2x DAC
Connectivity
SDIO
3x CAN 2.0B
USB 2.0 OTG FS (LPM)
FMC 16-bit (NOR only)
1x DFSDM 4 ch / 2 filters
1x DFSDM 8 ch / 4 filters
+ Beamforming enhanced
4x USART, 6x UART
LIN, smartcard, IrDA,
modem control
5x SPI or 5x I²S
(2x FD / 3x HD)
4x I²C (SMBus/PMBus)
Dual Quad-SPI
1x SAI
(Serial audio interface)
SOFTWARE TOOLS
In addition to the wide set of partners and ARM
®
ecosystem solutions, the STM32F4 Access lines benet from dedicated tools
and software including STM32CubeF4 embedded software (HAL, Low-Layer APIs and CMSIS (CORE, DSP, RTOS), and a set of
USB, TCP/IP, le system, RTOS, and graphic middleware components) with examples running on STM32 Nucleo, discovery kits
and evaluation boards.
STM32F4 ACCESS LINES
ARM
®
Cortex
®
-M4 (DSP + FPU) –
Up to 180 MHz
• ART Accelerator™
• SDIO
• USART, SPI, I²C
• I²S + audio PLL
• 16 and 32-bit timers
• 12-bit ADC (0.41µs)
• True Random Number
Generator
• Batch Acquisition Mode
• Low voltage 1.7 to 3.6 V
• Temperature:
• -40 °C to 125 °C
Product lines
FCPU
(MHz)
Flash
(Kbytes)
RAM
(KB)
RUN current
(µA/MHz)
STOP
current (µA)
Small
package
(mm)
FSMC (NOR/
PSRAM/LCD
support
QSPI
DFSDM
CAN 2.0B
DAC
TRNG
DMA Batch
Acquisition
Mode
USB 2.0 OTG
FS
STM32F401 84
128 to
512
up to
96
Down to
128
Down to
10
Down to
3x3
•
STM32F410 100
64 to
128
32
Down to
89
Down
to 6
Down to
2.553x 2.579
• • BAM -
STM32F411 100
256 to
512
128
Down to
100
Down to
12
Down to
3.034x 3.22
BAM •
STM32F412 100
512 to
1024
256
Down to
112
Down to
18
Down to
3.653x 3.651
• • • • • BAM • +LPM
1
STM32F413
2
100
1024 to
1536
320
Down to
115
Down to
18
Down to
3.951x 4.039
• • • • • • BAM • +LPM
1
Notes:
1. Link Power Management 2. The same devices are also found with embedded HW AES encryption (128-/256-bit) named STM32F423
STM32
Cube
HARDWARE TOOLS
Nucleo boards
NUCLEO-F401RE
NUCLEO-F410RB
NUCLEO-F411RE
NUCLEO-F412ZG
NUCLEO-F413ZH
www.st.com/stm32nucleo
Discovery kits
STM32F401C-DISCO
STM32F411E-DISCO
STM32F412G-DISCO
STM32F413H-DISCO
www.st.com/stm32f4-discovery
www.st.com/stm32cube
© STMicroelectronics - April 2017 - All rights reserved
The STMicroelectronics corporate logo is a registered trademark of the STMicroelectronics group of companies
All other names are the property of their respective owners
For more information on ST products and solutions, visit www.st.com/stm32f4
Order code: FLSTM32F4x10417
