For further information contact your local STMicroelectronics sales office.
October 2014 DocID026798 Rev 2 1/5

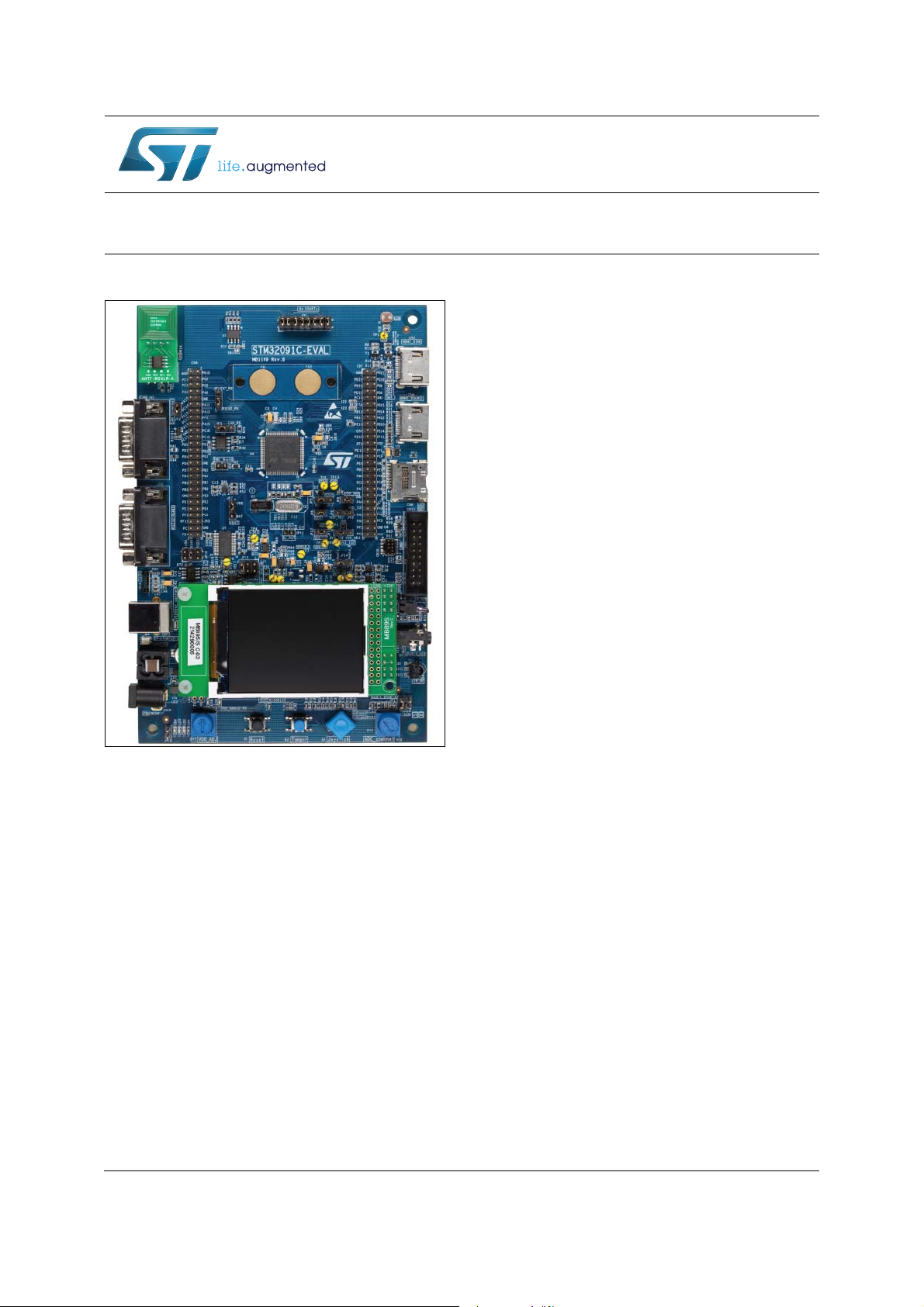

STM32091C-EVAL
Evaluation board for STM32F0x1 line - with STM32F091VC MCU
Data brief
1. Picture not contractual
Features
• Three 5V power supply options: power jack,
ST-LINK/V2-1 USB connector or daughter
board
• Stereo audio jack which supports headset with
earphone connected to DAC and microphone
connected to ADC of STM32F091VCT6
• 2G or more Byte SPI interface MicroSD card
• I2C compatible serial interface temperature
sensor
• RF E2PROM
• RS232 & RS485 communication
• IrDA transceiver
• IR LED & IR receiver
• SWD debug support, ST-LINK/V2-1 embedded
• 240x320 TFT color LCD connected to SPI
interface of STM32F091VCT6
• Joystick with 4-direction control and selector
• Reset, Tamper & User buttons
• 4 color user LEDs and 2 LEDs as MCU low
power alarm
• Extension connector for daughter board or
wrapping board
• MCU voltage choice fixed 3.3v or adjustable
from 1.65v to 3.6v
• Touch sensing buttons
• RTC with backup battery
• CAN2.0A/B compliant connection
• Light dependent resistor (LDR)
• Potentiometer
• Two HDMI connectors with DDC & CEC
• Smart card slot
• 8x USARTs chain connector
www.st.com
