For further information contact your local STMicroelectronics sales office.
July 2015 DocID027535 Rev 2 1/4

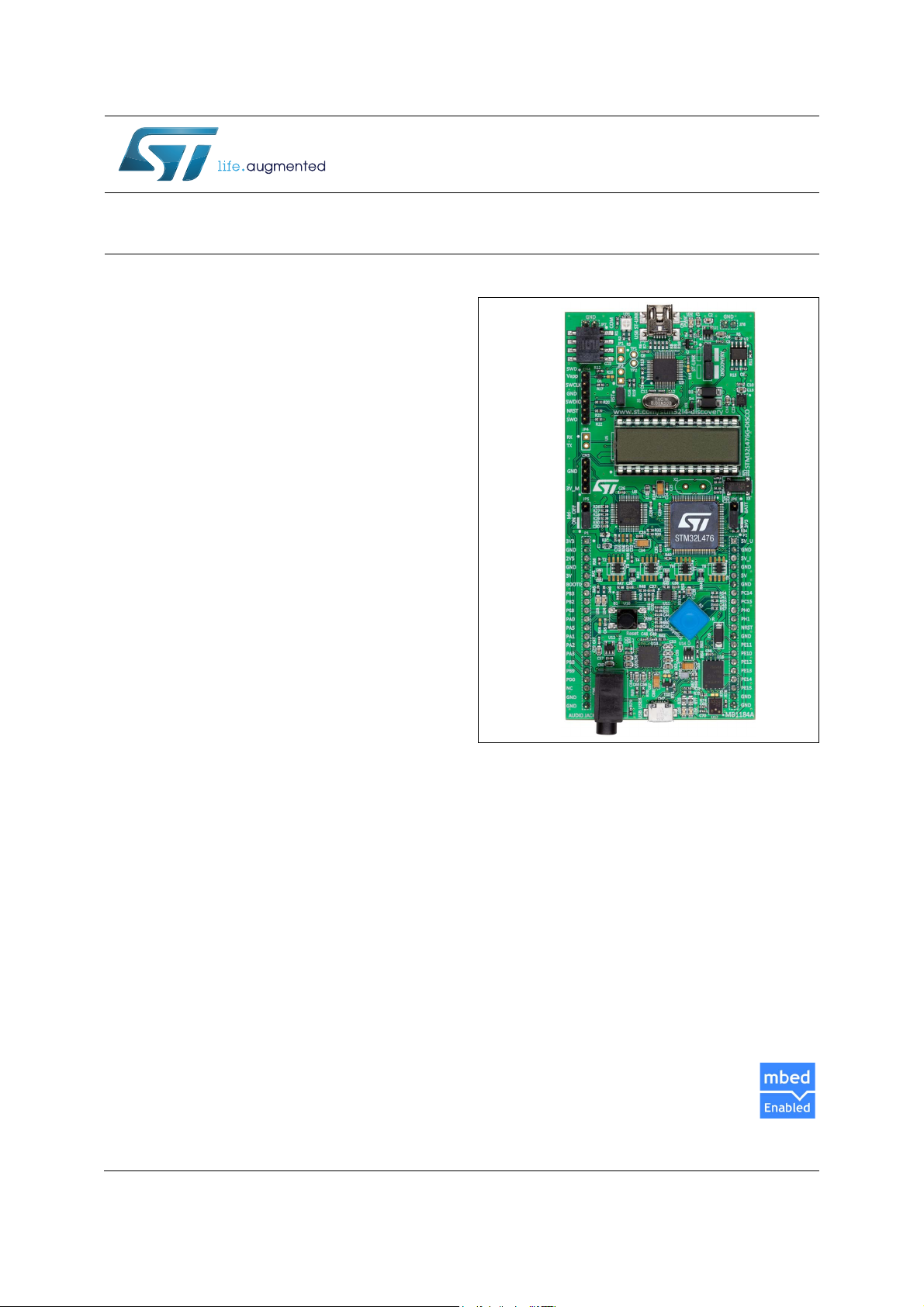

32L476GDISCOVERY
Discovery kit with STM32L476VG MCU
Data brief
Features
STM32L476VGT6 microcontroller featuring
1 Mbyte of Flash memory, 128 Kbytes of RAM
in LQFP100 package
On-board ST-LINK/V2-1 supporting USB re-
enumeration capability
Three different interfaces supported on USB:
– Virtual com port
– Mass storage
– Debug port
Mbed-enabled (mbed.org)
LCD 24 segments, 4 commons in DIP 28
package
Seven LEDs:
– LD1 (red/green) for USB communication
– LD2 (red) for 3.3 V power on
– LD3 Over current (red)
– LD4 (red), LD5 (green) two user LEDs
– LD6 (green), LD7 (red) USB OTG FS LEDs
Pushbutton (reset)
Four directions Joystick with selection
USB OTG FS with micro-AB connector
SAI Audio DAC, Stereo with output jack
Digital Microphone MEMS Accelerometer and
magnetometer Mems
Gyroscope MEMS
128-Mbit Quad-SPI Flash memory
MCU current ammeter with 4 ranges and auto
calibration
Connector for external board or RF-EEPROM
Four power supply options:
–ST-LINK/V2-1
– USB FS connector
– External 5 V
– CR2032 battery (not provided)
Extension connectors
Comprehensive free software including a
variety of examples, part of STM32Cube
package
1. Picture not contractual
Description
The 32L476GDISCOVERY helps users to
develop and share applications with the STM32L4
ultra-low-power microcontrollers.The Discovery
kit combines STM32L476 features with LCD,
LEDs, audio DAC, sensors (microphone, 3 axis
gyroscope, 6 axis compass), joystick, USB OTG,
Quad-SPI Flash memory, expansion and probing
connectivity. It includes an embedded Ammeter
which measures the MCU consumption in low
power modes. An external board can be
connected thanks to extension and probing
connectors.
