For further information contact your local STMicroelectronics sales office.
January 2015 DocID027343 Rev 1 1/4

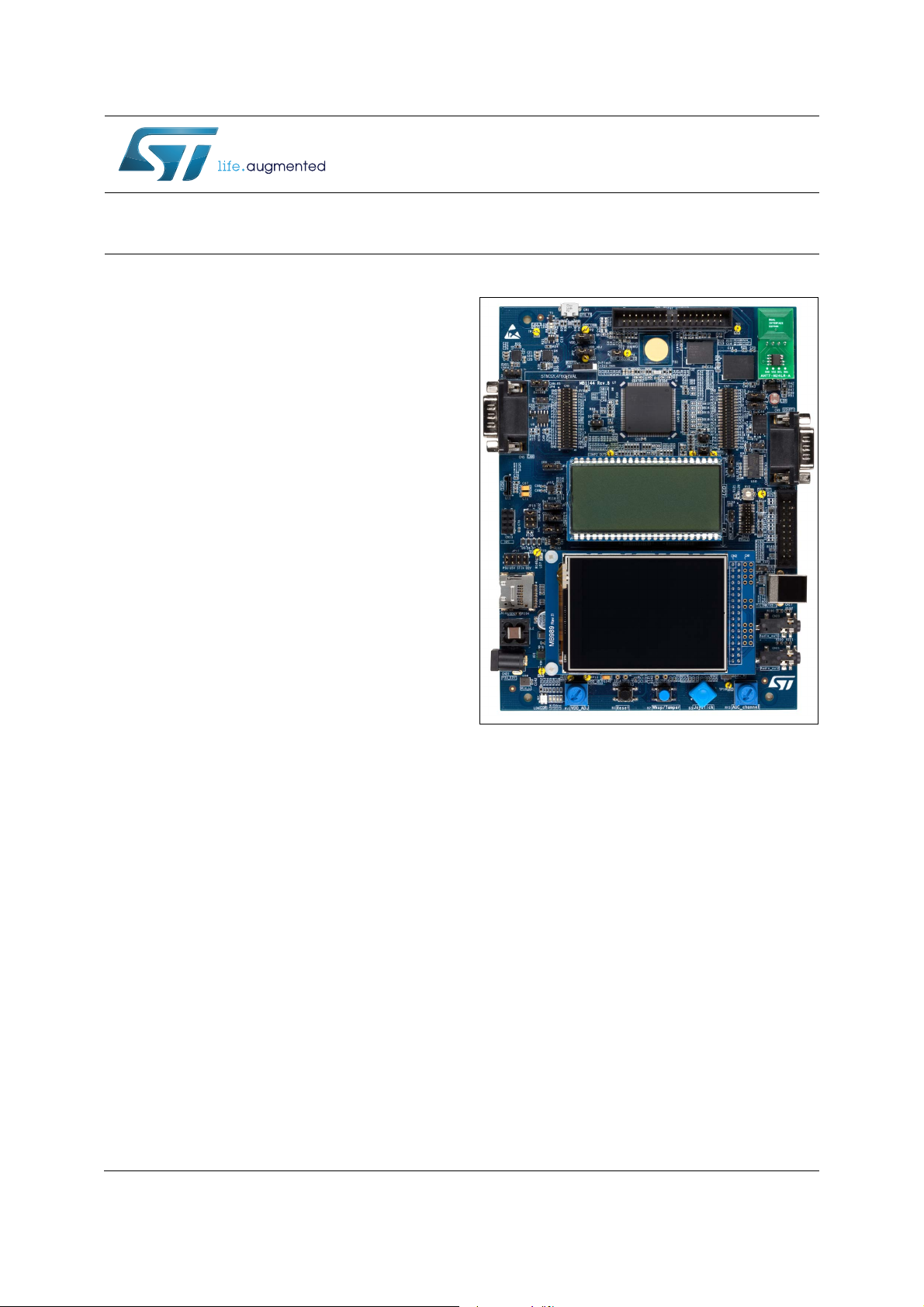

STM32L476G-EVAL
Evaluation board with STM32L476ZG MCU
Data brief
Features
• Four 5 V power supply options:
– Power jack
–ST-LINK/V2-1
– USB connector
– User USB OTG FS connector or
daughterboard.
• MCU voltage choice 3.3 V or adjustable from
1.71 V to 3.6 V
• Two stereo audio jack outputs with TDM
capability, stereo digital microphones
• 4 Gbyte or more microSD card SDIO interface
• 1Mx16 bits Static RAM connected to FMC bus
• 128 Mb Nor Flash memory connected to FMC
bus
• Quad SPI memory in DTR mode
• RF-EEPROM on I2C interface
• I2C EEPROM at 1MHz speed
• RS232 interface configurable for
communication or Flashloader
• LPUART access through USB Virtual ComPort
of ST-LINK/V2-1
• IrDA transceiver
• USB OTG FS connector
• CAN 2.0A/B compliant interface
• Joystick with 4-directions control and selector
• Reset and Tamper or Key buttons
• Touch sensing button
• Light Dependent Resistor (LDR)
• Potentiometer
• Back-up coin cell
• LCD glass 40x8 segments connected to LCD
driver of STM32L476ZGT6
• A 2.8 inches color LCD TFT with resistive
touchscreen
1. Picture not contractual
• Smartcard connector with SWP feature
• NFC transceiver connector
• One ADC & DAC input signal connector
• Sigma-delta interface with power metering
demo
• PT100 thermal sensor with a dedicated sigma-
delta modulator
• MCU consumption measurement circuit
• Access to positive inputs and outputs of
internal Comparator and Operational Amplifier
• Motor Control connector
• JTAG/SWD, ETM trace debug support, ST-
LINK/V2-1 embedded
• Extension connector for daughterboard or
wrapping board
www.st.com
