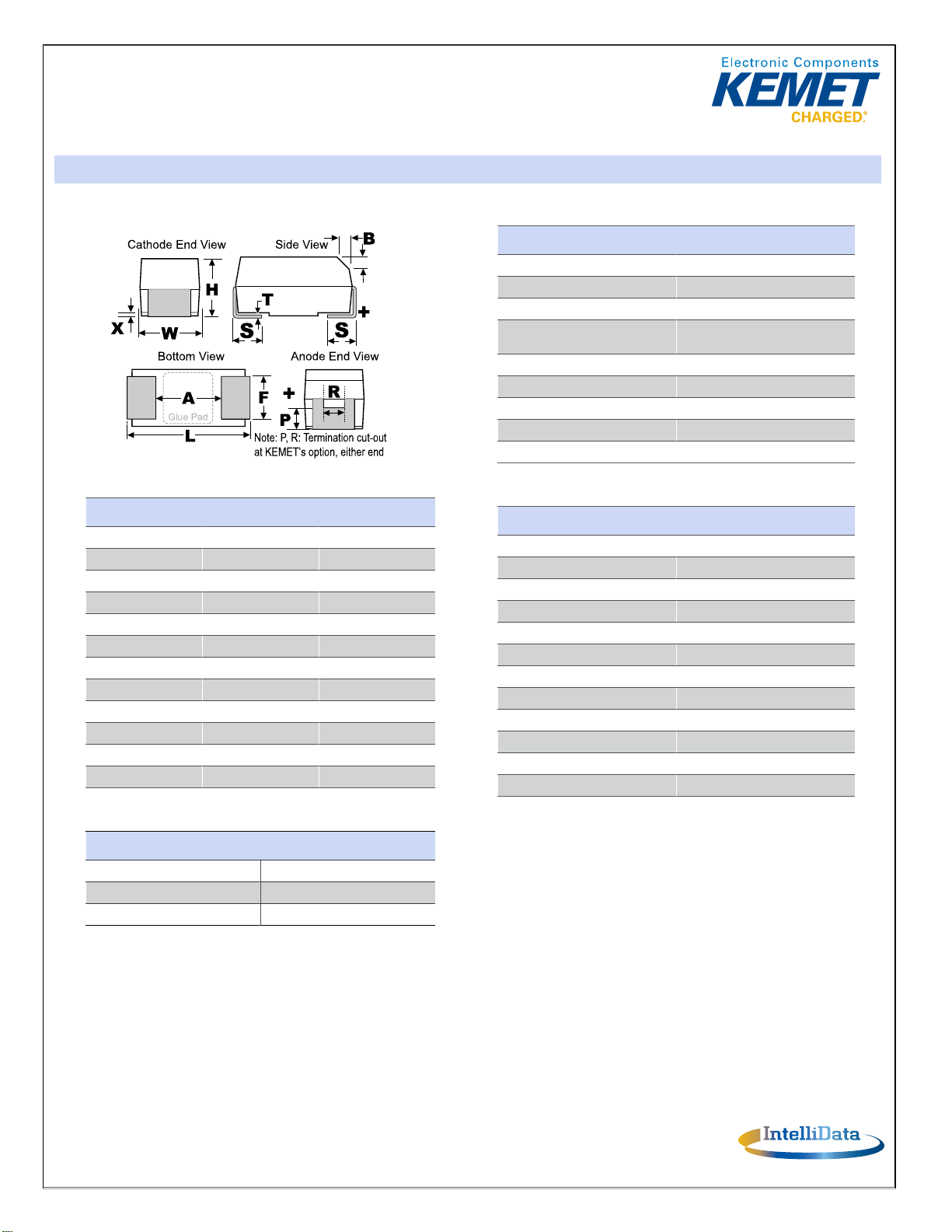

T521D106M050ATE1207280数据手册
Page:
of 1 Go
若手册格式错乱，请下载阅览PDF原文件
Generated 2/12/2017 - a406d8c4-15d6-482f-aac9-5d172114ee27
KEMET Part Number: T521D106M050ATE1207280
Capacitor, Tantalum, SMD, Polymer, Molded, Low ESR, Non-Combustible, 10 uF, 7343, +/-20% Tol, -55/+125C, 50 VDC (105C)
Dimensions (mm)
Symbol Dimension Tolerance
L 7.3 +/-0.3
W 4.3 +/-0.3
H 2.8 +/-0.3
F 2.4 +/-0.1
S 1.3 +/-0.3
B 0.5 +/-0.15
X 0.1 +/-0.1
P 0.9 REF
R 1 REF
T 0.13 REF
A 3.8 MIN
Packaging Specifications
Package Kind: T&R
Package Size: 13 in/330 mm
Package Quantity: 2500
General Information
Supplier: KEMET
Application: Low ESR
Sub Application: (NonCombustibleCathode)
Part Type Description:
SMD, Polymer, Molded, Low
ESR, Non-Combustible
Construction: Standard Chip-Polymer
Body Type: SMD Chip
Footprint: 7343
Weight: 434.83 mg
RoHS: Yes
Specifications
Capacitance: 10 uF
Tolerance: +/-20%
Voltage: 50 VDC (105C)
Voltage: 33.5 VDC (125C)
Temperature Range: -55/+125C
Current/Ripple Current: 1369 mAmps (100kHz 45C)
Current/Ripple Current: 958.3 mAmps (85C)
Current/Ripple Current: 342.3 mAmps (125C)
Resistance/ESR: 120 mOhms (100kHz 25C)
Failure Rate: N/A
Leakage Current: 50 uA
Dissipation Factor: 10%
