YourElectronicEngineeringResource



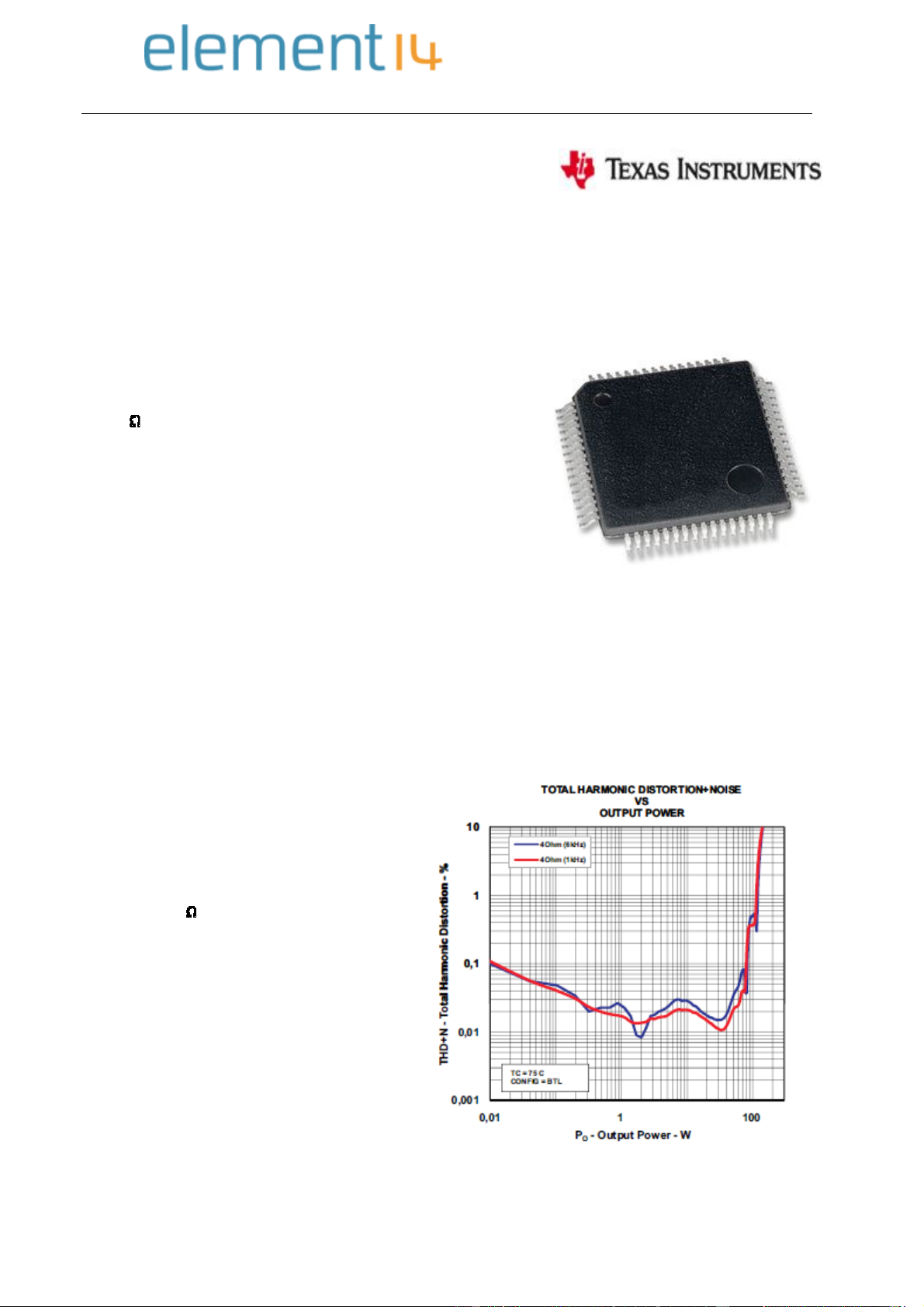

TAS5611 Class D Amplifier

General Description:

The TAS5611 is a high performance analog input Class D

amplifier with integrated closed loop feedback technology (known

as PurePath™ HD) with the ability to drive up to 125W Stereo into

4 to 8

Speakers from a single 32.5V supply.

PurePath™ HD technology enables traditional AB-Amplifier

performance (<0.03% THD) levels while providing the power

efficiency of traditional class D amplifiers.

Unlike traditional Class D amplifiers, the distortion curve only

increases once the output levels move into clipping.

PurePath™ HD technology enables lower idle losses making the device even more efficient.

Key Features:

 PurePath™ HD Enabled Integrated Feedback Provides:



Signal Bandwidth up to 80kHz for

High Frequency Content

From HD Sources

 Ultralow 0.03% THD at 1W into

 Flat THD at all Frequencies for

Natural Sound

 80dB PSRR (BTL, No Input

Signal)

 >100dB (A weighted) SNR

 Click and Pop Free Startup

 Pin compatible with TAS5630, TAS5615

and TAS5613 & TAS5611

 Multiple Configurations Possible on the Same PCB With Stuffing Options:
