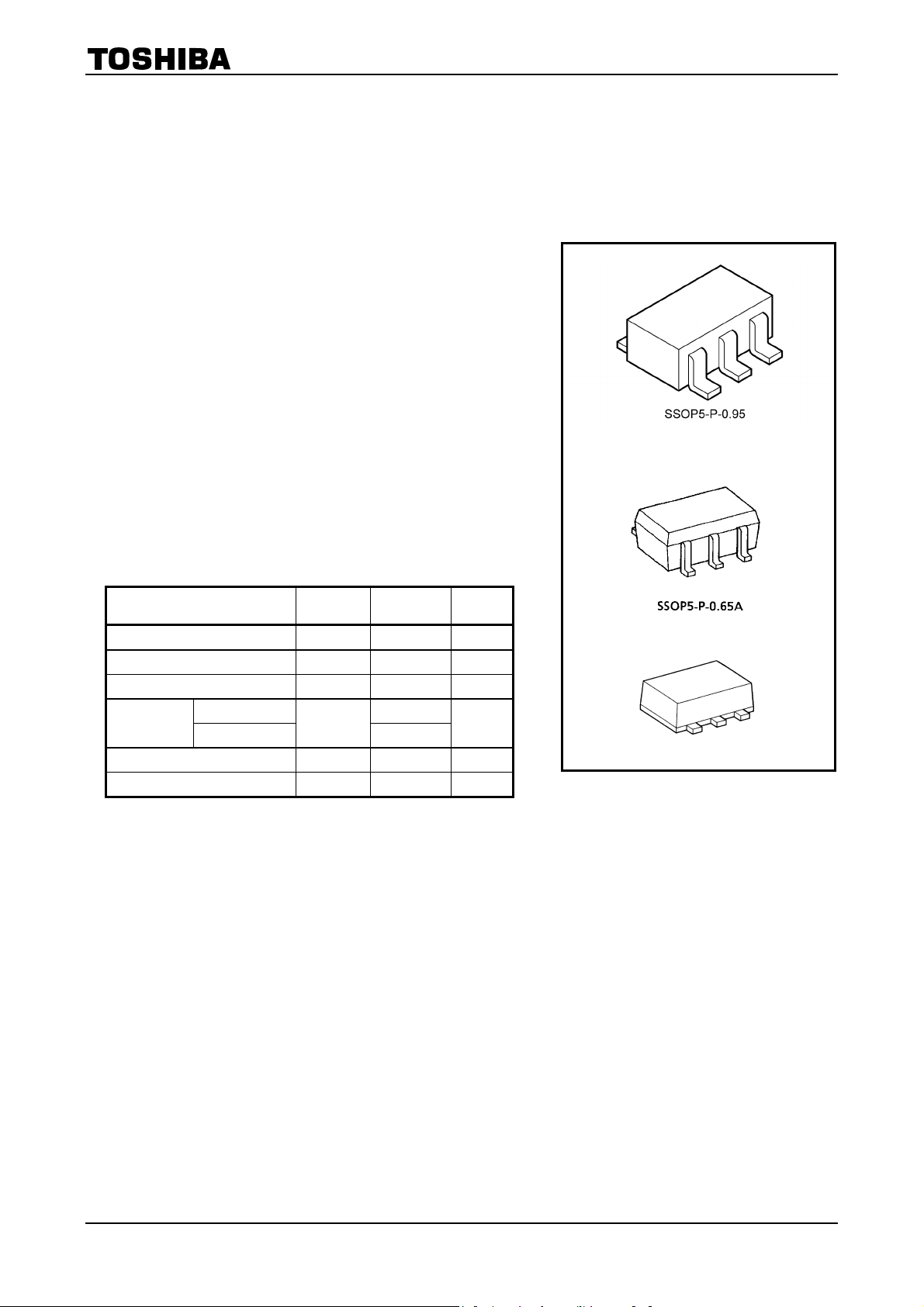

TC75S51F/FU/FE
2014-03-01
1
TOSHIBA CMOS Linear Integrated Circuit Silicon Monolithic
TC75S51F, TC75S51FU, TC75S51FE
Single Operational Amplifier
The TC75S51F/TC75S51FU/TC75S51FE is a CMOS single-
operation amplifier which incorporates a phase compensation
circuit. It is designed with a low-voltage and low-current power
supply; this differentiates this device from general-purpose
bipolar op-amps.
Features
• Low-voltage operation : V
DD
= ±0.75 to ±3.5 V or 1.5 to 7 V
• Low-current power supply : I
DD
(V
DD
= 3 V) = 60 μA (typ.)
• Built-in phase-compensated op-amp, obviating the need for
any external device
• Ultra-compact package
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics Symbol Rating Unit
Supply voltage V
DD
, V
SS
7 V
Differential input voltage DV
IN
±7 V
Input voltage V
IN
V
DD
to V
SS
V
TC75S51F/FU 200
Power
dissipation
TC75S51FE
P
D
100
mW
Operating temperature T
opr
−40
to 85 °C
Storage temperature T
stg
−55
to 125 °C
Note: Using continuously under heavy loads (e.g. the application
of high temperature/current/voltage and the significant
change in temperature, etc.) may cause this product to
decrease in the reliability significantly even if the operating conditions (i.e. operating
temperature/current/voltage, etc.) are within the absolute maximum ratings and the operating ranges.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
TC75S51F
TC75S51FU
TC75S51FE
Weight
SSOP5-P-0.95 : 0.014 g (typ.)
SSOP5-P-0.65A : 0.006 g (typ.)
SON5-P-0.50 : 0.003 g (typ.)
SON5-P-0.50
(SMV)
(USV)
(ESV)
Start of commercial production
1993-07
