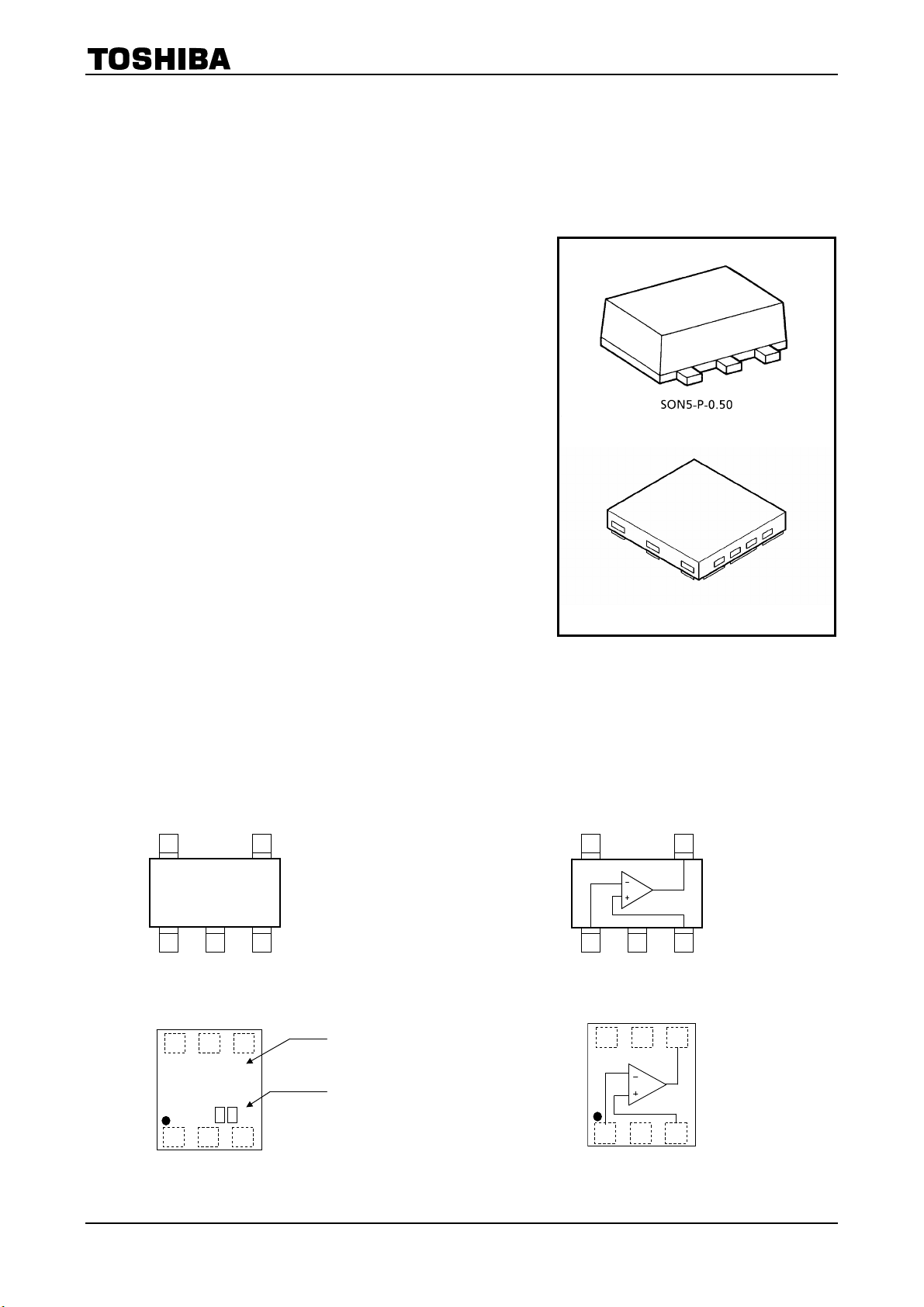

TC75S58AFE/AFC
2007-10-01
1
6 5 4
1 2 3
6 5 4
1 2 3
TC75S58AFE,TC75S58AFC
Single Comparator（Open-Drain Output）
The TC75S58AFE and TC75S58AFC are CMOS general-purpose
single comparators. The devices can operate from a single supply
voltage and are designed for a lower supply-current than
conventional general-purpose bipolar comparators. The output is
designed for Open-Drain Output and can supply a higher voltage
than the power supply. Therefore, it is possible to pull-up the
voltage to a level higher than that of the power supply. The
Open-Drain Output can be wired-OR with another Open-Drain
Output circuit.
* Output voltage should not exceed the maximum rating
Feature
• Low Supply Current: I
DD
= 10 μA (Typ.)
• Single Power Supply Operation
• Wide Common Mode Input : V
SS
~V
DD
− 0.9 V
• Open-Drain Output Circuit
• Low Input Bias Current
• Small Package
Marking
(top view) Pin Assignment (top view)
TC75S58AFE
TC75S58AFC
TC75S58AFE
TC75S58AFC
CSON6-P-0.45
Weight
SON5-P-0.50 : 0.003 g (Typ.)
CSON6-P-0.45 : 0.002 g (Typ.)
T G
4 5
1
V
DD
5
IN (+)
4
1 3
V
SS
2
OUT
IN (−)
T
G
IN (-) V
ss
IN (+)
OUT V
DD
NC
Marking
Monthly Indication
2 3
TC75S58AFE
TC75S58AFC
