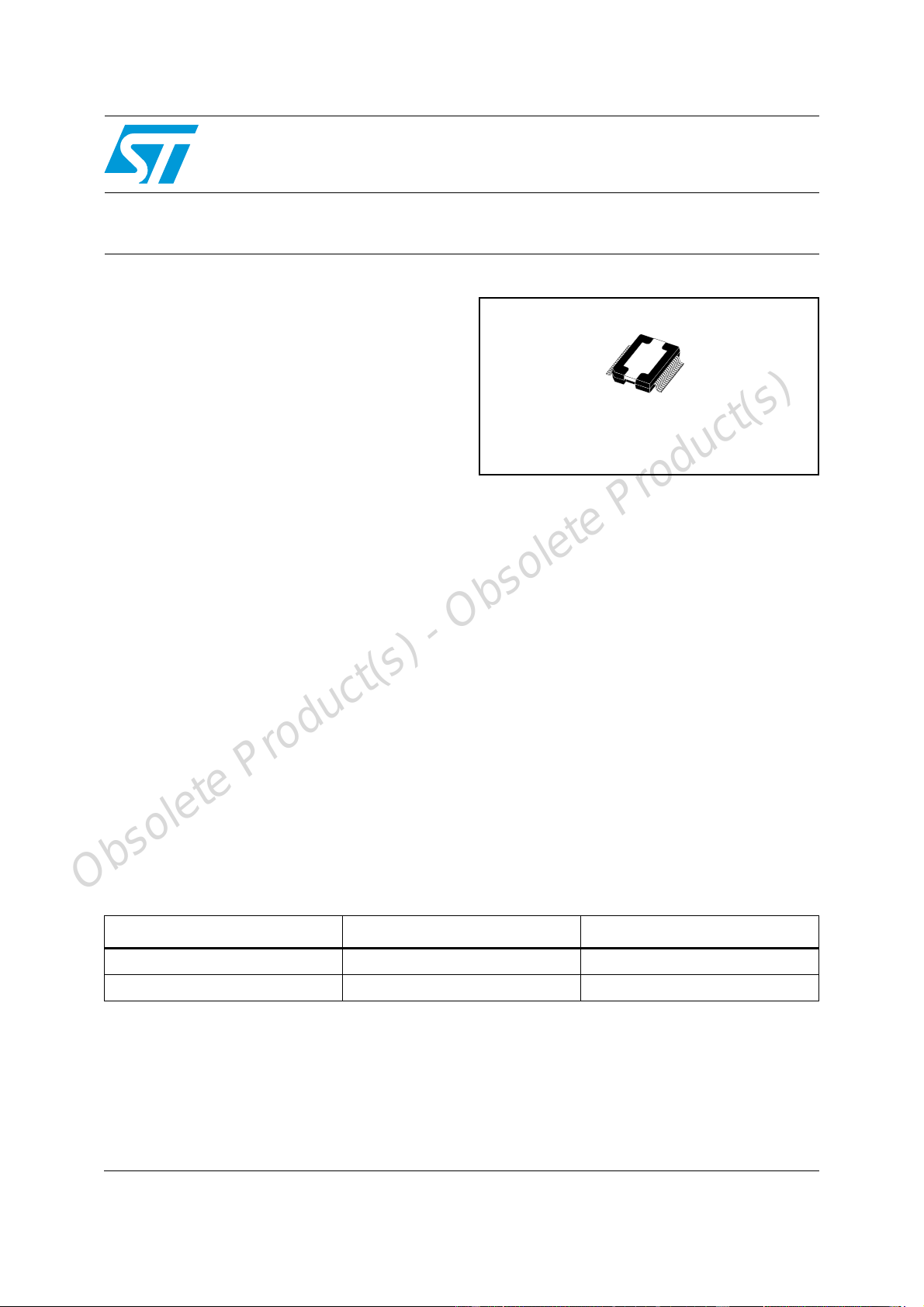

December 2008 Rev 2 1/29
1
TDA7563PD
Multifunction quad power amplifier
with built-in diagnostics features
Features
■ Multipower BCD technology
■ MOSFET output power stage
■ DMOS power output
■ Non switching high efficiency
■ High output power capability 4x28W/4Ω @
14.4V, 1kHz, 10% THD, 4x40W EIAJ
■ Max. output power 4x72W/2Ω
■ Full I
2
C bus driving:
– Standby
– Independent front/rear soft play/mute
– Selectable gain 30dB /16dB (for low noise
line output function)
– High efficiency enable/disable
–I
2
C bus digital diagnostics
■ Full fault protection
■ DC offset detection
■ Four independent short circuit protection
■ Clipping detector pin with selectable threshold
(2%/10%)
■ Standby/mute pin
■ Linear thermal shutdown
■ ESD protection
Description
The TDA7563PD is a new BCD technology Quad
Bridge type of car radio amplifier in PowerSO36
package specially intended for car radio
applications.
Thanks to the DMOS output stage the
TDA7563PD
has a very low distortion allowing a clear powerful
sound. Among the features, its superior efficiency
performance coming from the internal exclusive
structure, makes it the most suitable device to
simplify the thermal management in high power sets.
The dissipated output power under average
listening condition is in fact reduced up to 50%
when compared to the level provided by
conventional class AB solutions.
This device is equipped with a full diagnostics
array that communicates the status of each
speaker through the I
2
C bus.
PowerSO36
(Slug up)
Table 1. Device summary
Order code Package Packing
TDA7563PDTR PowerSO36 (slug up) Tape and reel
TDA7563PD PowerSO36 (slug up) Tube
www.st.com
Obsolete Product(s) - Obsolete Product(s)
Obsolete Product(s) - Obsolete Product(s)
