4N29M, 4N30M, 4N32M, 4N33M, H11B1M, TIL113M — 6-Pin DIP General Purpose Photodarlington Optocoupler
December 2014
©2007 Fairchild Semiconductor Corporation www.fairchildsemi.com
4NXXM, H11B1M, TIL113M Rev. 1.0.4
4N29M, 4N30M, 4N32M, 4N33M, H11B1M, TIL113M
6-Pin DIP General Purpose Photodarlington Optocoupler
Features
■
High Sensitivity to Low Input Drive Current
■
Meets or Exceeds All JEDEC Registered
Specifications
■
Safety and Regulatory Approvals:
– UL1577, 4,170 VAC
RMS
for 1 Minute
■
DIN-EN/IEC60747-5-5, 850 V Peak Working
Insulation Voltage
Applications
■
Low Power Logic Circuits
■
Telecommunications Equipment
■
Portable Electronics
■
Solid State Relays
■
Interfacing Coupling Systems of Different Potentials
and Impedances
Description
The 4N29M, 4N30M, 4N32M, 4N33M, H11B1M, and
TIL113M have a gallium arsenide infrared emitter opti-
cally coupled to a silicon planar photodarlington.
Schematic
EMITTER
COLLECTOR
1
2
3
ANODE
CATHODE
4
5
6
BASE
N/C
6
1
6
6
1
1

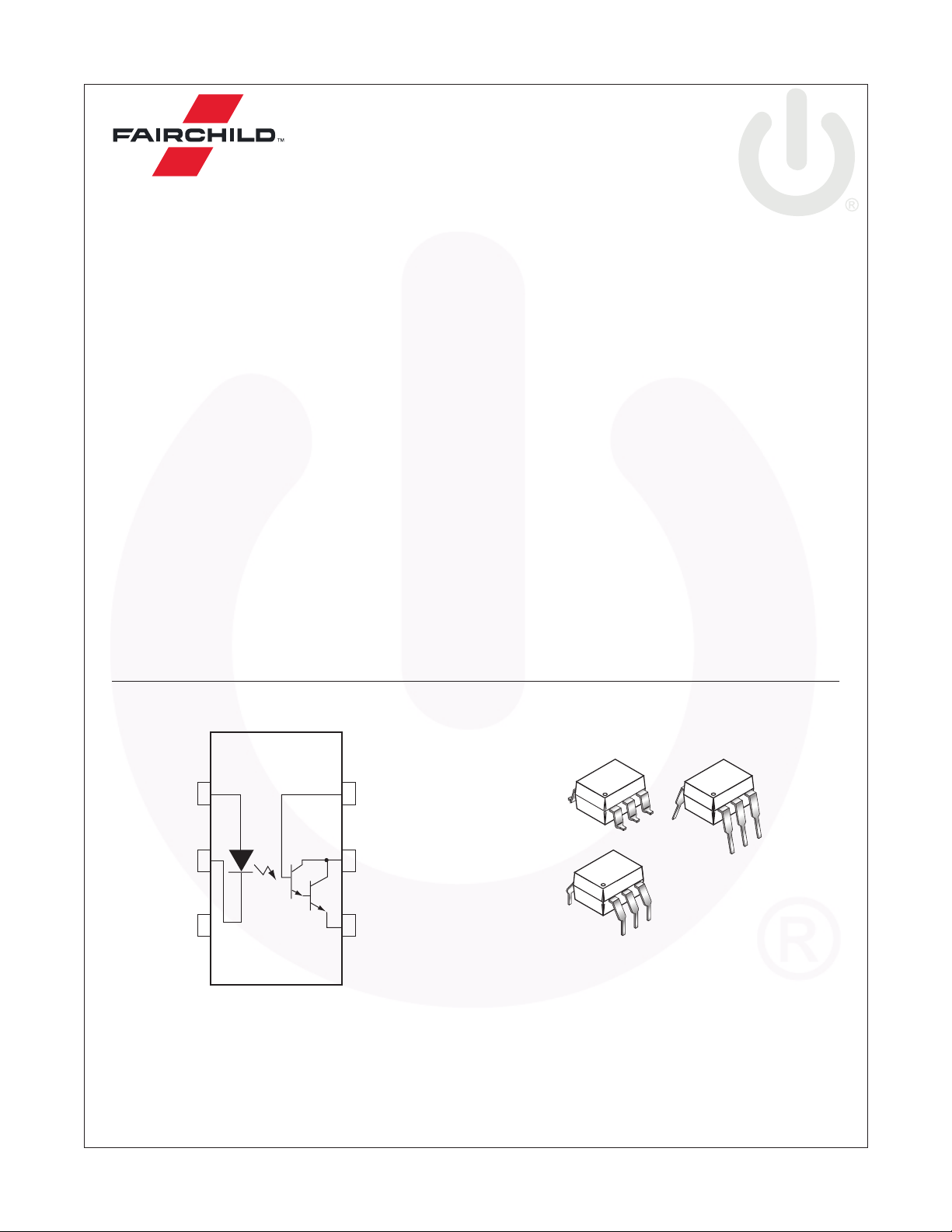

Figure 1. Schematic
Figure 2. Package Outlines
