MCT2EM, TIL111M, TIL117M — 6-Pin General Purpose Phototransistor Optocouplers
Publication Order Number :
MCT2EM/D
©2005 Semic
onductor Components Industries, LLC.
November-2017, Rev. 2
MCT2EM, TIL111M, TIL117M
6-Pin General Purpose Phototransistor Optocouplers
Features
• Minimum Current Transfer Ratio at I
F
= 10 mA,
V
CE
= 10 V:
– 20% for MCT2EM
– 50% for TIL117M
• Safety and Regulatory Approvals:
– UL1577, 4,170 VAC
RMS
for 1 Minute
– DIN-EN/IEC60747-5-5, 850 V Peak Working
Insulation Voltage
Applications
• Power Supply Regulators
• Digital Logic Inputs
• Microprocessor Inputs
Description
The general purpose optocouplers consist of a gallium
arsenide infrared emitting diode driving a silicon photo-
transistor in a standard plastic six-pin dual-in-line
package.

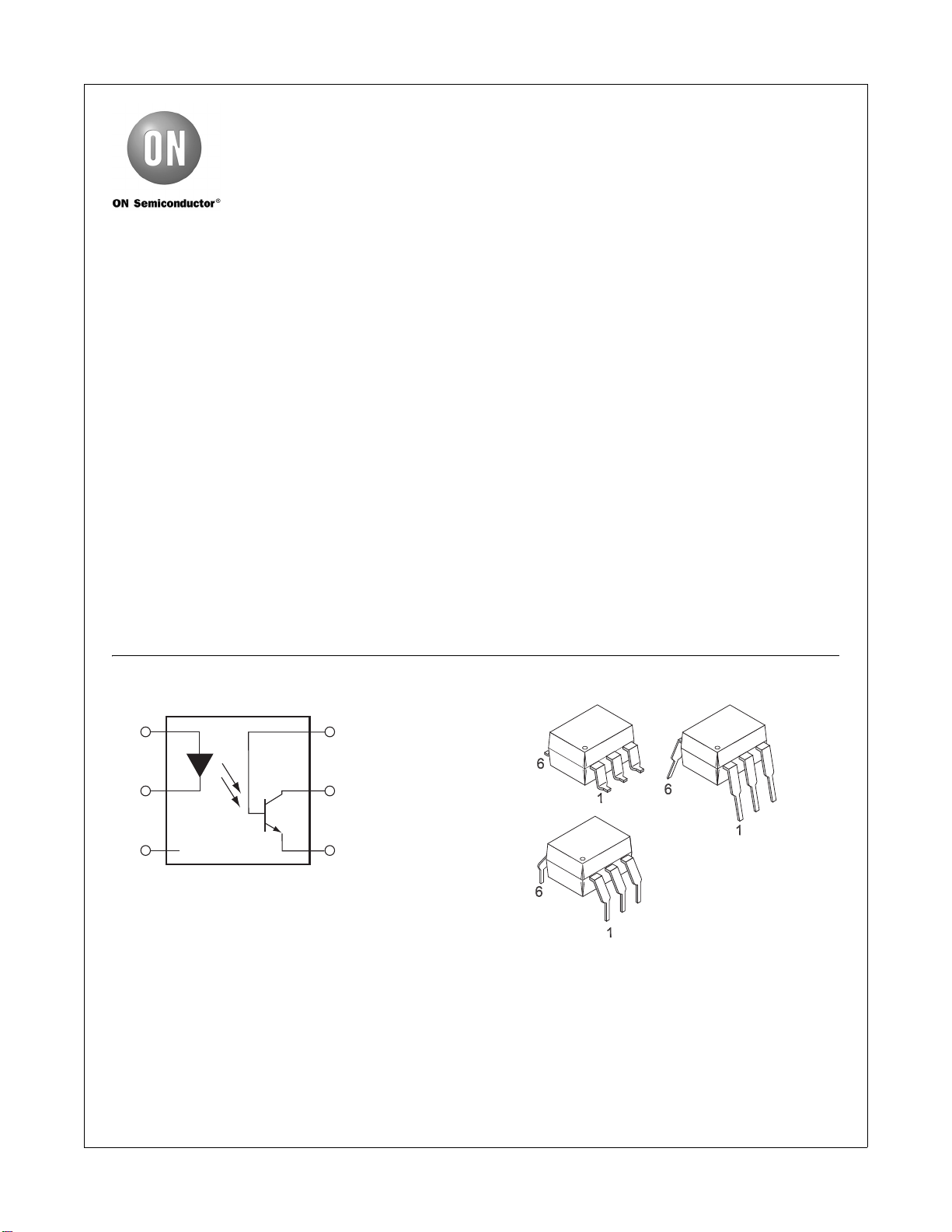

Schematic Package Outlines
PIN 1. ANODE
2. CATHODE
3. NO CONNECTION
4. EMITTER
5. COLLECT
OR
6. BASE
2
1
3NC
5
6
4
Figure 2. Package Outlines
Figure 1. Schematic
