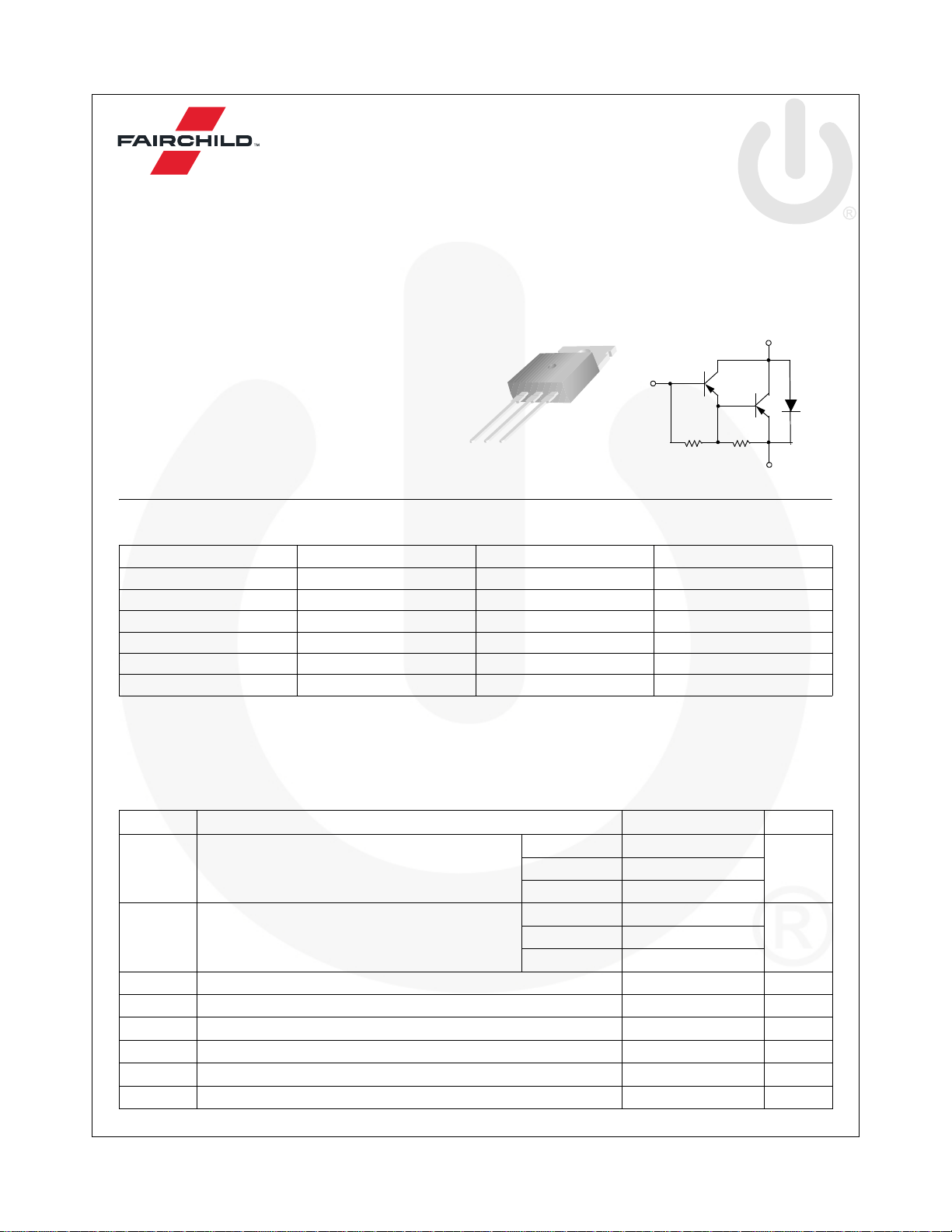

TIP125 / TIP126 / TIP127 — PNP Epitaxial Darlington Transistor
© 2001 Fairchild Semiconductor Corporation www.fairchildsemi.com
TIP125 / TIP126 / TIP127 Rev. 1.1.0 1
November 2014
TIP125 / TIP126 / TIP127
PNP Epitaxial Darlington Transistor
Features
• Medium Power Linear Switching Applications
• Complementary to TIP120 / TIP121 / TIP122
Ordering Information
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
C
= 25°C unless otherwise noted.
Part Number Top Mark Package Packing Method
TIP125 TIP125 TO-220 3L (Single Gauge) Bulk
TIP125TU TIP125 TO-220 3L (Single Gauge) Rail
TIP126 TIP126 TO-220 3L (Single Gauge) Bulk
TIP126TU TIP126 TO-220 3L (Single Gauge) Rail
TIP127 TIP127 TO-220 3L (Single Gauge) Bulk
TIP127TU TIP127 TO-220 3L (Single Gauge) Rail
Symbol Parameter Value Unit
V
CBO
Collector-Base Voltage
TIP125 -60
VTIP126 -80
TIP127 -100
V
CEO
Collector-Emitter Voltage
TIP125 -60
VTIP126 -80
TIP127 -100
V
EBO
Emitter-Base Voltage -5 V
I
C
Collector Current (DC) -5 A
I
CP
Collector Current (Pulse) -8 A
I
B
Base Current (DC) -120 mA
T
J
Junction Temperature 150 °C
T
STG
Storage Temperature Range -65 to 150 °C
1.Base 2.Collector 3.Emitter
1
TO-220
Equivalent Circuit
B
E
C
R1
R2
R1 8kΩ≅
R2 0.12kΩ≅
